12.8 Revision mode
The Extinguishing Control Computer 8010 can be switched to the revision mode via the function keys on the
operating panel. The keyboard must be released by the key switch.
The revision mode display has priority over the test mode. If an alarm zone is for example in test
mode and the revision mode is switched on in addition, the state of the >Test mode< LED changes
from ON to flashing. In the deactivated revision mode the >Test mode< LED lits continuously.
Test
operation
On
Un-
locked
K
e
y
b
o
a
r
d
R
e
l
e
a
s
e
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled

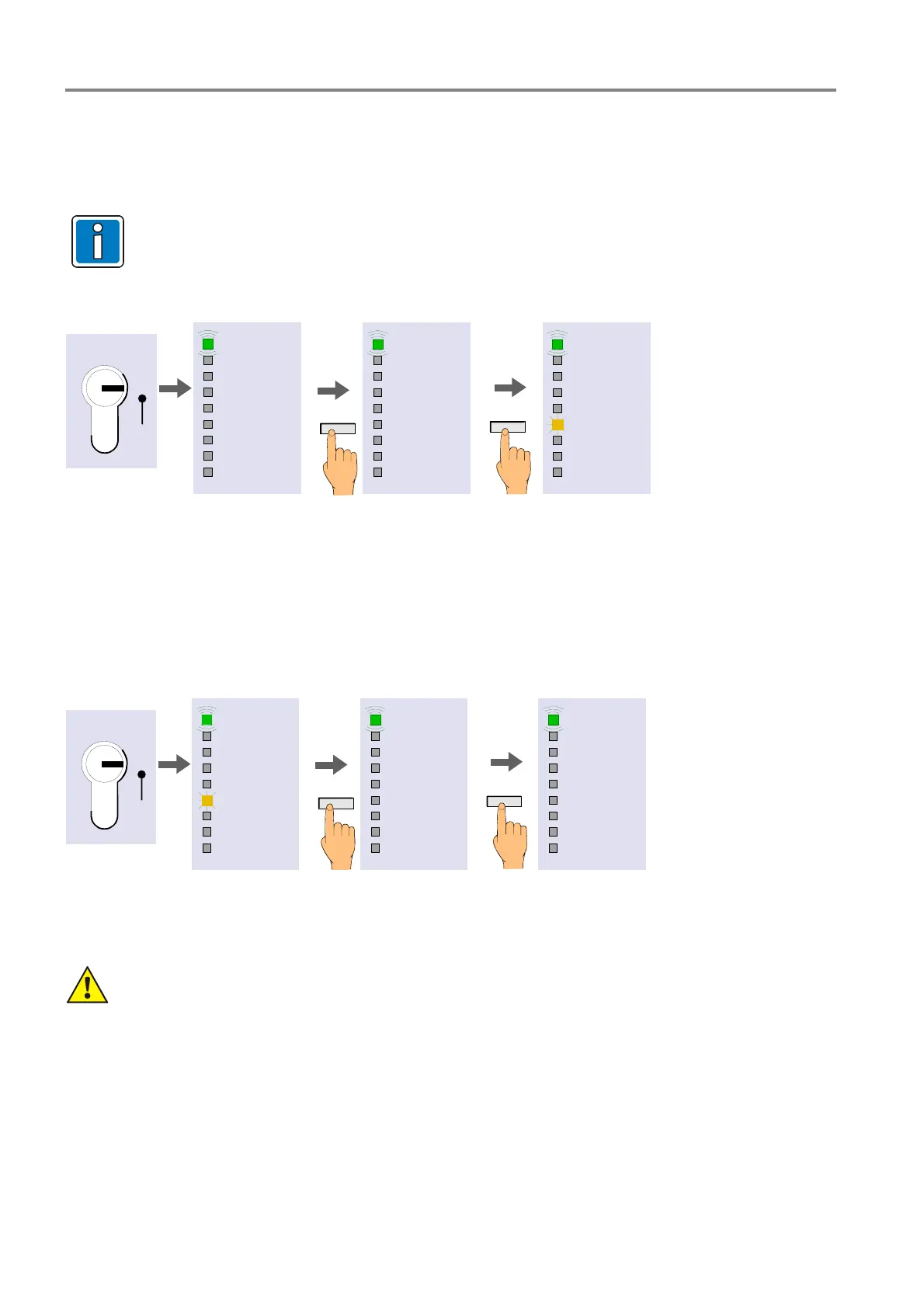

Fig. 13: Example of switching mode – switching on revision mode
Selecting the revision mode activates all outputs programmed with the status function >Revision<. All outputs of
the Extinguishing Control Computer remain activated until the revision mode is deactivated.
The following key sequence is used to deactivate the revision mode:
Test
operation
Off
Un-
locked
K
e
y
b
o
a
r
d
R
e
l
e
a
s
e
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
Fig. 14: Operating example – switching off the revision mode
Zones and outputs which are disconnected or out of order will not send an alarm in the event of a fire!
