Honeywell Esser 8010 - 8.2 CPU-Failure Mode

Extinguishing Control Computer 8010 - Series 2
FB 798352 / 11.07 65
Technical zone no.10 to no.13 (yellow LED)
Off
Î
Normal operation, technical zone is alarm-ready
Lights up yellow
Î
1) Triggers the technical zone 10 to 13
Î
2) Switch-off. The technical zone was switched off. The yellow LED >Switch off<
also lights up
Flashes yellow
Î
Trouble
Twinkle yellow
Î
Input check- the zone number was entered via the control panel keypad

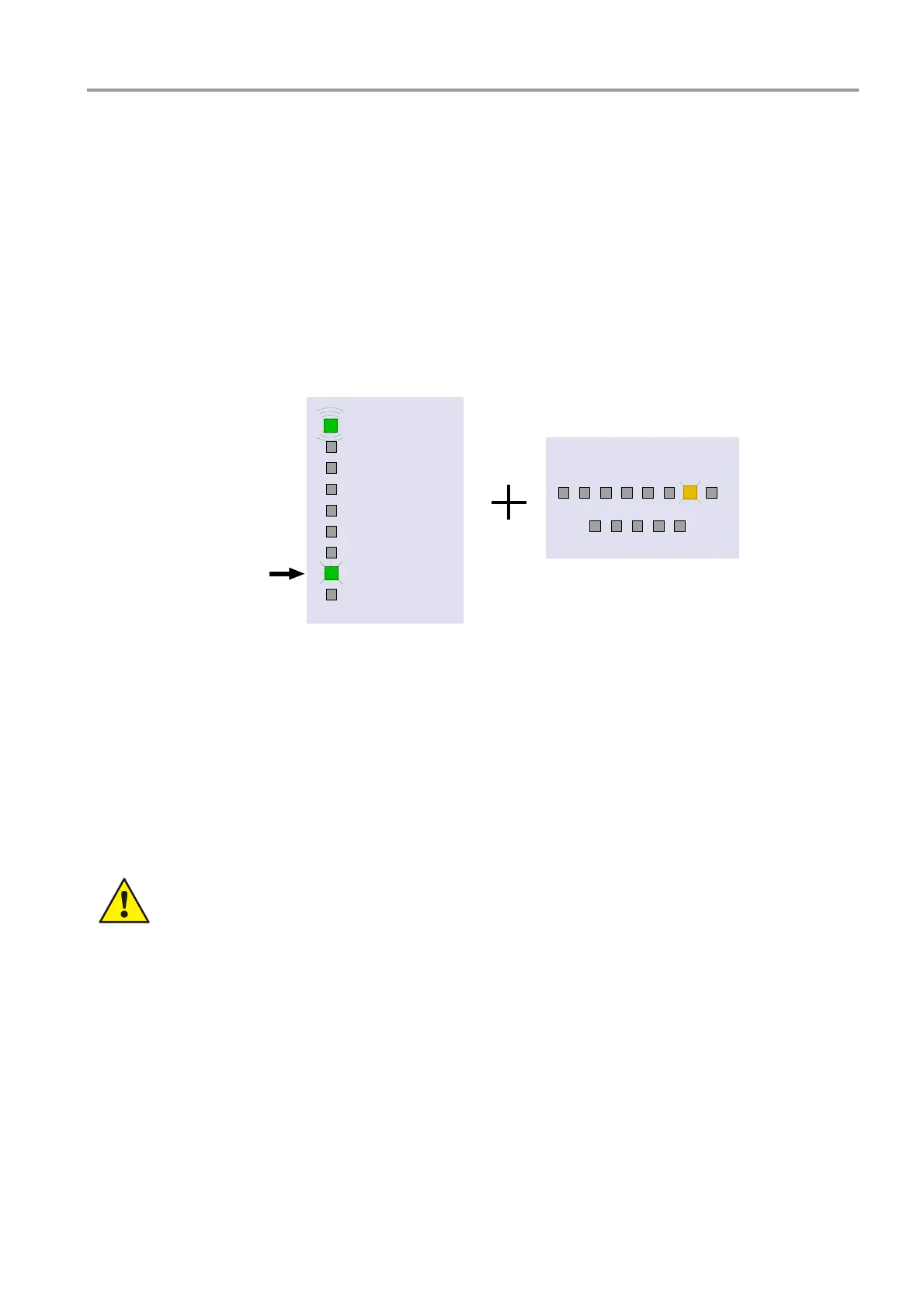

12.1.2 Status display of the outputs
Status display of the
outputs is switched on
12345678
9 10111213
Detector zone
Fire/Switch off/Trouble
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
Fig. 3: Outputs displays
Outputs no.1 to no.13 (yellow LED)
Off
Î
Normal operation, the output is in the resting state
Flashes
Î
Output failure
On
Î
Output deactivated
Twinkle
Î
Input check -the output number was entered via the control panel keypad
Disconnected or zones in trouble will not signal an alarm in case of an event!
