Honeywell Esser 8010 Operation And Installation Instruction

Extinguishing Control Computer 8010 - Series 2
72 FB 798352 / 11.07
12.6 Connect / disconnect relay outputs
The relay outputs (1–13) can be switched on or off via the function keys and the 10-button keypad of the control
panel. For operation, the keypad must be enabled via the key-switch.
12345678
910111213
Detector zone
Fire/Switch off/Trouble
Un-
locked
K
e
y
b
o
a
r
d
R
e
l
e
a
s
e
7
Output Off
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled

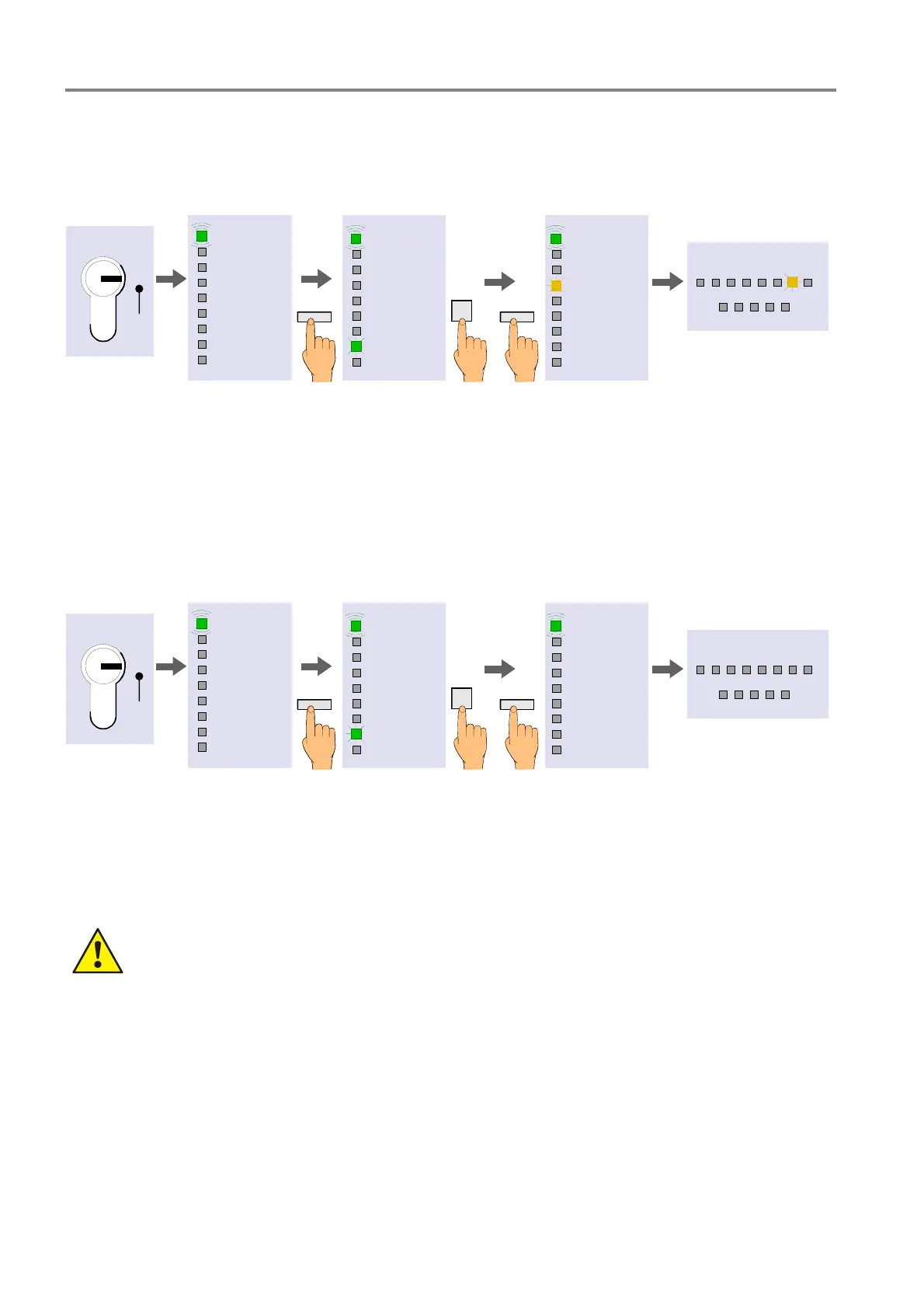

Fig. 9: Operation example – Switching off relay output No. 7
The deactivated relay output is shown in the zone display with the continuously yellow LED. The green LED
>Outputs< also lights up to indicate that the zone display is showing the status of the outputs.
The zone display can be switched between the display of the 13 zones and of the 13 control outputs with the
function key >Switchover<. If the keypad is locked, the status of the zones is always automatically shown, even
if outputs have been deactivated.
Press the following key combination to switch on and reset the detector zone:
12345678
910111213
Detector zone
Fire/Switch off/Trouble
Un-
locked
K
e
y
b
o
a
r
d
R
e
l
e
a
s
e
7
Output On
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
Fig. 10: Operation example – Switching on the relay output No. 7
The continuously illuminated LED in the status display of the output turns out. The relay output is switched on
and will be activated in the case of an event.
Deactivated outputs will not notify an alarm message in case of a fire!
