6.3.2 Customer data programming
The Fieldbus- und panel interface PLus (Part No. 789862.10) or panel interface RS232 (Part No. 769828) incl.
accessories is required to configure the panels Customer data.
The software tools 8000 provides the configuration of the FACP IQ8Control functions and customizing the system
to all requirements. Detailed informations to the configuration of the FACP IQ8Control is given in the Online-Help
file in tools 8000.
6.3.3 Fieldbus- und panel interface PLus (Part No. 789862.10), USB
Therewith the interface may be detected from the Service-PC it is required to install the appropriate USB driver
>usbefi.inf< (e.g. XP and Windows 7 etc.).
Connect Service-PC and the interface with the USB-cable. Switch ON the Service-PC  the USB connection will
be detected automatically and corresponding USB driver requested.
The USB-driver >usbcf.inf< is delivered on the CD-ROM with the programming software tools 8000.
tools 8000
USB

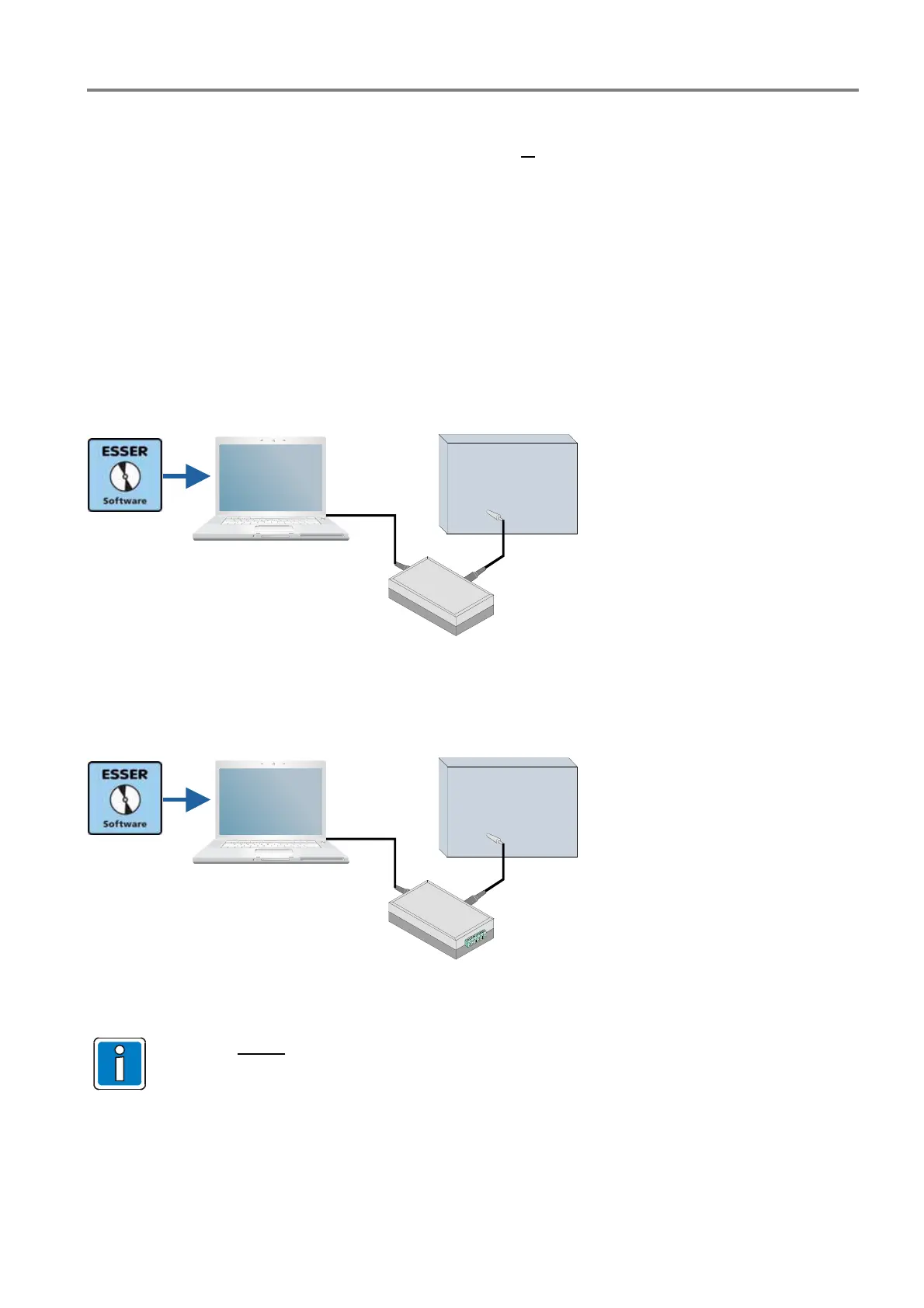

Fig. 35: Fieldbus- und panel interface PLus (Part No. 789862.10), USB
6.3.4 Panel interface RS232 (Part No. 769828), serial
tools 8000
seriell
serial
Fig. 36: Panel interface RS232 (Part No. 769828), serial
For safety, always save your data on the hard disk of the service PC.
The saved customer data can then be transferred quickly and easily from the service PC to the
FACP IQ8Control.
