46 107062-12 EN FR26 GLO 501 Printed in France

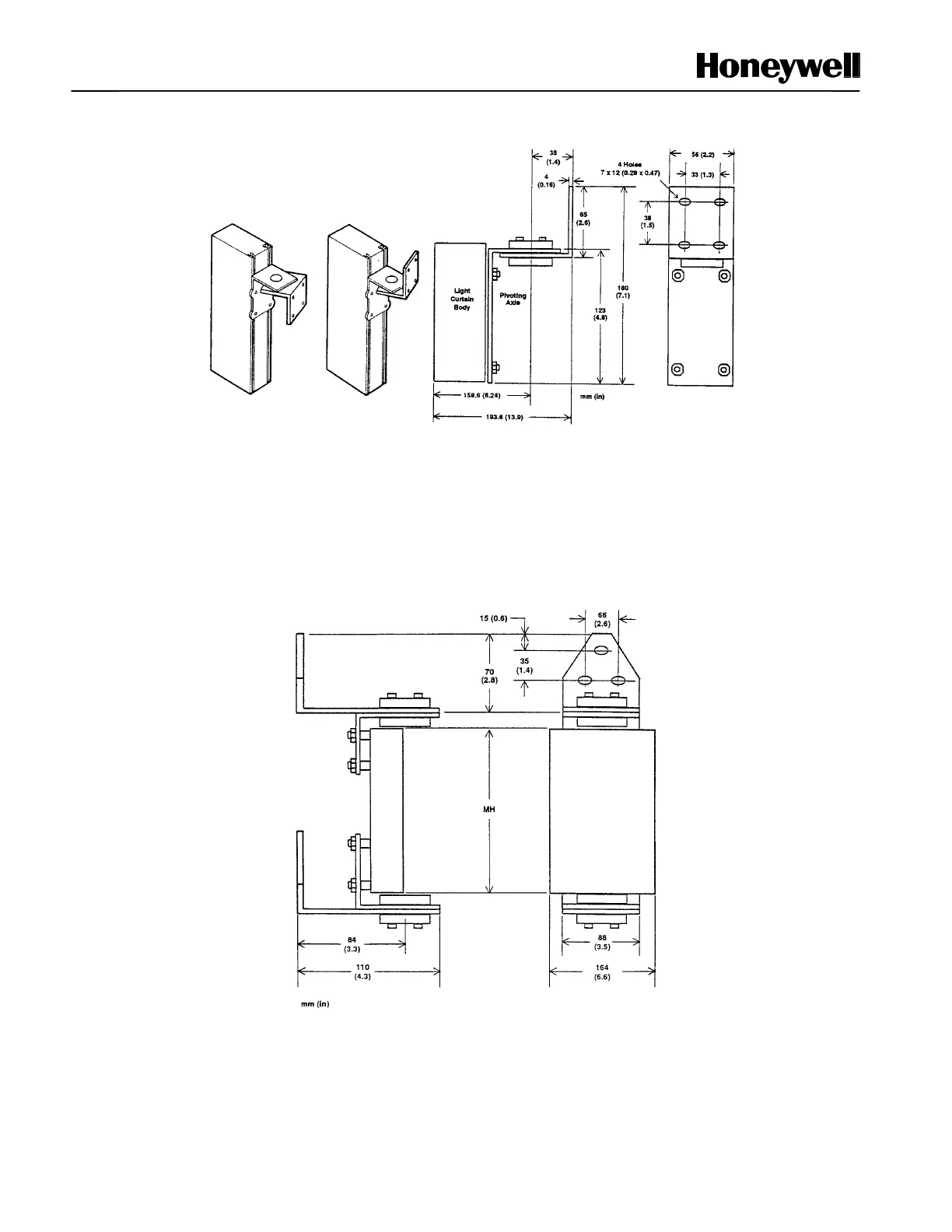

Figure 2-18 Rotatable Bracket Dimensions
Mounting the Mirrors
FF-SB Series mirrors include all mounting brackets and hardware necessary for installation. The mounting
brackets allow rotation of the mirrors to the desired angle. See figure 2-19 for mounting dimensions.
Rotatable brackets are recommended if the emitter and receiver devices are mounted more than 1/2 the
maximum scanning distance of the product (and/or using mirrors). Figures 2-20 and 2-21 illustrate floor
mounting posts that are available.
Figure 2-19 Mirror Mounting Dimensions
