Response Times
The response time of FF-SB Series light curtains is the maximum time it takes the light curtain to generate a
stop signal after the sensing field has been interrupted. See the table below for response times for individual
light curtains.
Protected Heights (mm/in) Response Times (milliseconds)
FF-SB12 FF-SB14 FF-SB15 FF-SB14 filter version
200 (7.87) 25
⎯⎯⎯
400 (15.75) 27 25
⎯
40
600 (23.6) 29 26 25 41
800 (31.5)
⎯
27
⎯
42
1000 (39.37)
⎯
28 26 43
1200 (47.24)
⎯
29
⎯
44
1400 (55.12)
⎯
30 27 45
Scanning Range

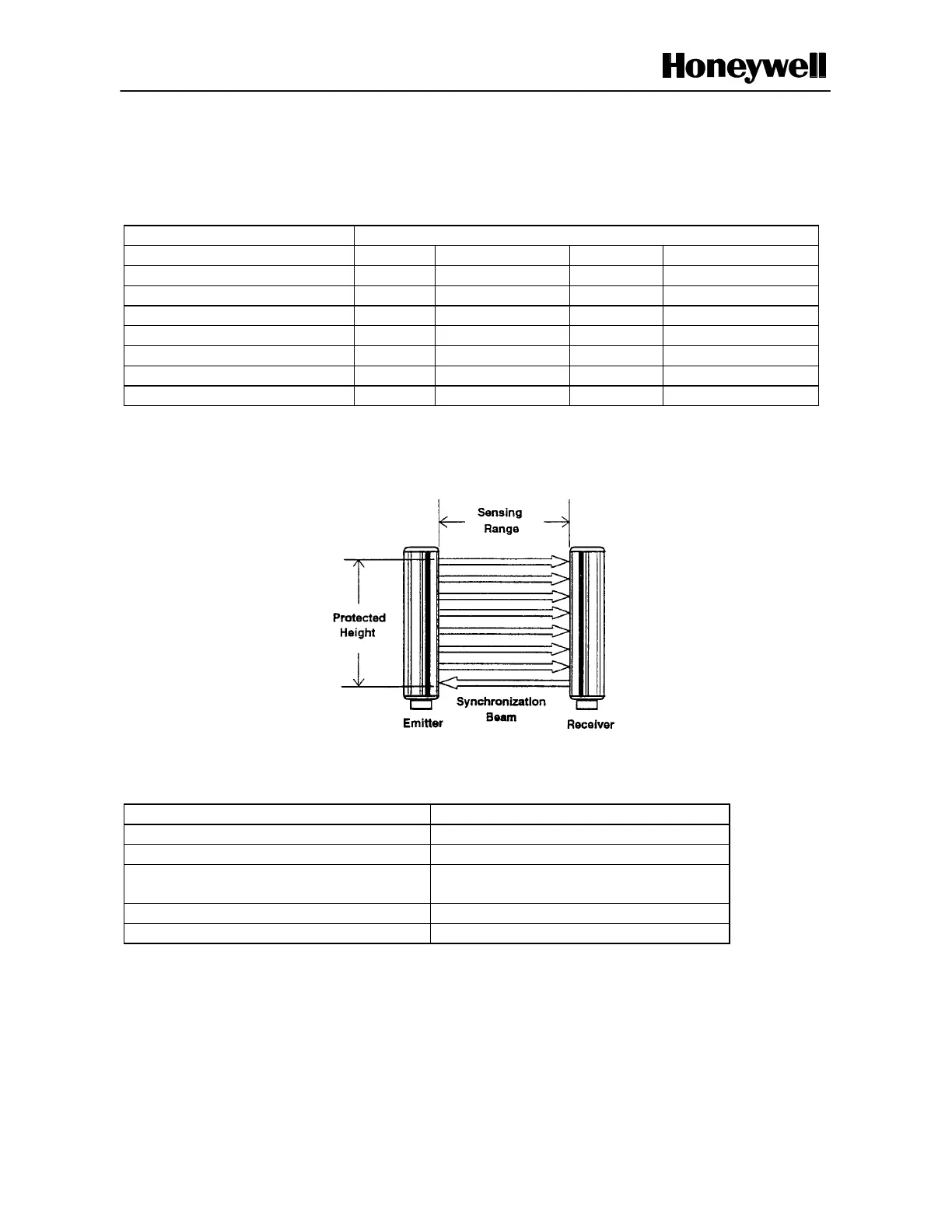

Figure 1-7 Scanning Range Diagram
Scanning range is the maximum distance allowed between the emitter and the receiver (see figure 1-7). The
FF-SB Series light curtains have the following scan ranges:
Product Scan Range
FF-SB12 0 m to 10 m (0 ft to 32.8 ft)
FF-SB14 (standard version) 0 m to 10 m (0 ft to 32.8 ft)
FF-SB14 (filter version for crowded areas or
welding applications)
0 m to 6 m (0 ft to 19.7 ft)
FF-SB15 3 m to 24 m (9.84 ft to 78.8 ft)
FF-SB12E/R02E-52 0 m to 6 m (0 ft to 19.7 ft)
