107062-12 EN FR26 GLO 501 Printed in France 49
Electrical Connections
Overview
This chapter contains information about electrical installation and wiring.
IMPROPER INSTALLATION
Strictly adhere to all electrical connection instructions.
Failure to comply with these instructions could result in death or serious injury.
Connector Wiring
All FF-SB Series light curtains have a metal quick-disconnect connector (supplied). Emitter units use
connector FF-SBZ1721137 and the receiver units use connector FF-SBZ1721202.
Figure 3-1 illustrates a rear view of the connector (pins inserted this side). Both connectors use the same
type of crimped pins.

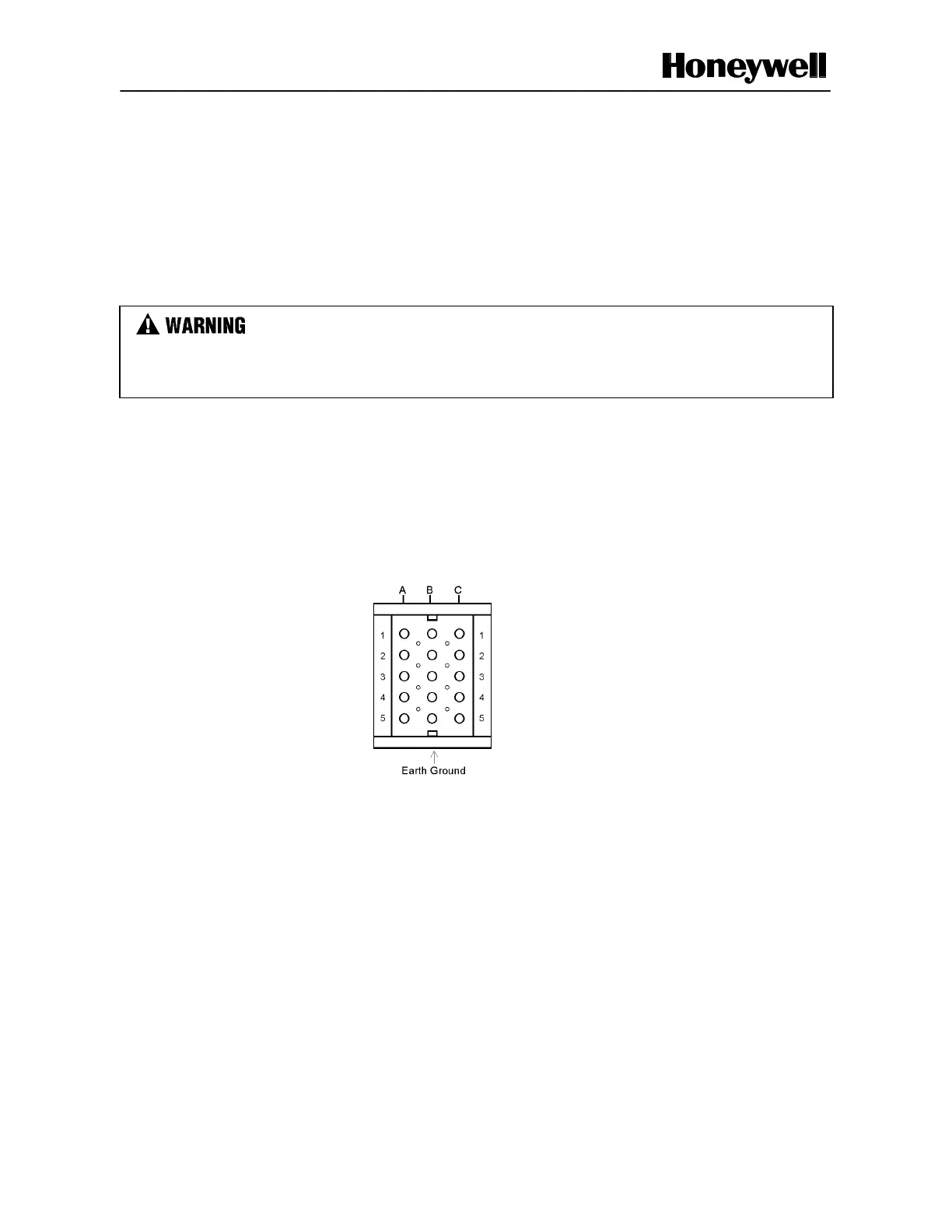

Figure 3-1 Rear View of Quick-Disconnect Connector
• connections are made through quick disconnect metal DIN 43652 plugs delivered with the light curtain.
• cross sectional area of stranded wires to be crimped (metal DIN 43652 plugs only) : 0,5 mm2 (AWG20) as
a minimum, 1,5 mm2 (AWG16) as a maximum.
• packing glands and allowed cable diameters to guarantee the IP 65 / NEMA 4, 13 sealing (metal DIN 43652
plugs only) :
Emitter plug: PG9 allowed cable diameters: 5 mm to 8,7 mm / 0.22 in to 0.34 in
Receiver plug: PG21 allowed cable diameters: 11 mm to 19 mm / 0.44 in to 0.74 in
PG13: allowed cable diameters: 8,5 mm to 13,5 mm / 0.33 in to 0.53 in
Ensure the following tools are available when wiring the quick-disconnect connector:
• A set of wire strippers.
• A medium sized flat-head screwdriver.
• An FF-SBZCRIMP (Honeywell part number FF-SBZCRIMP) crimping tool or equivalent.
