Honeywell FIre-LITe ALArms MS-9600LS Wiring Manual

FireLite SLC Wiring Manual — P/N 51309:R3 7/29/2019 21
NFPA Class A SLC SLC Circuits without Isolators
3.3 NFPA Class A SLC
NFPA Class A requirements can be met by using the diagram below.
• T-tapping of the SLC wiring is NOT allowed for Class A configuration.
Control Panel
SLC
Two-wire Addressable Detector
Addressable Module
SLC-style6.cdrwmf
SLC Return
SLC Out
B+ B– A– A+

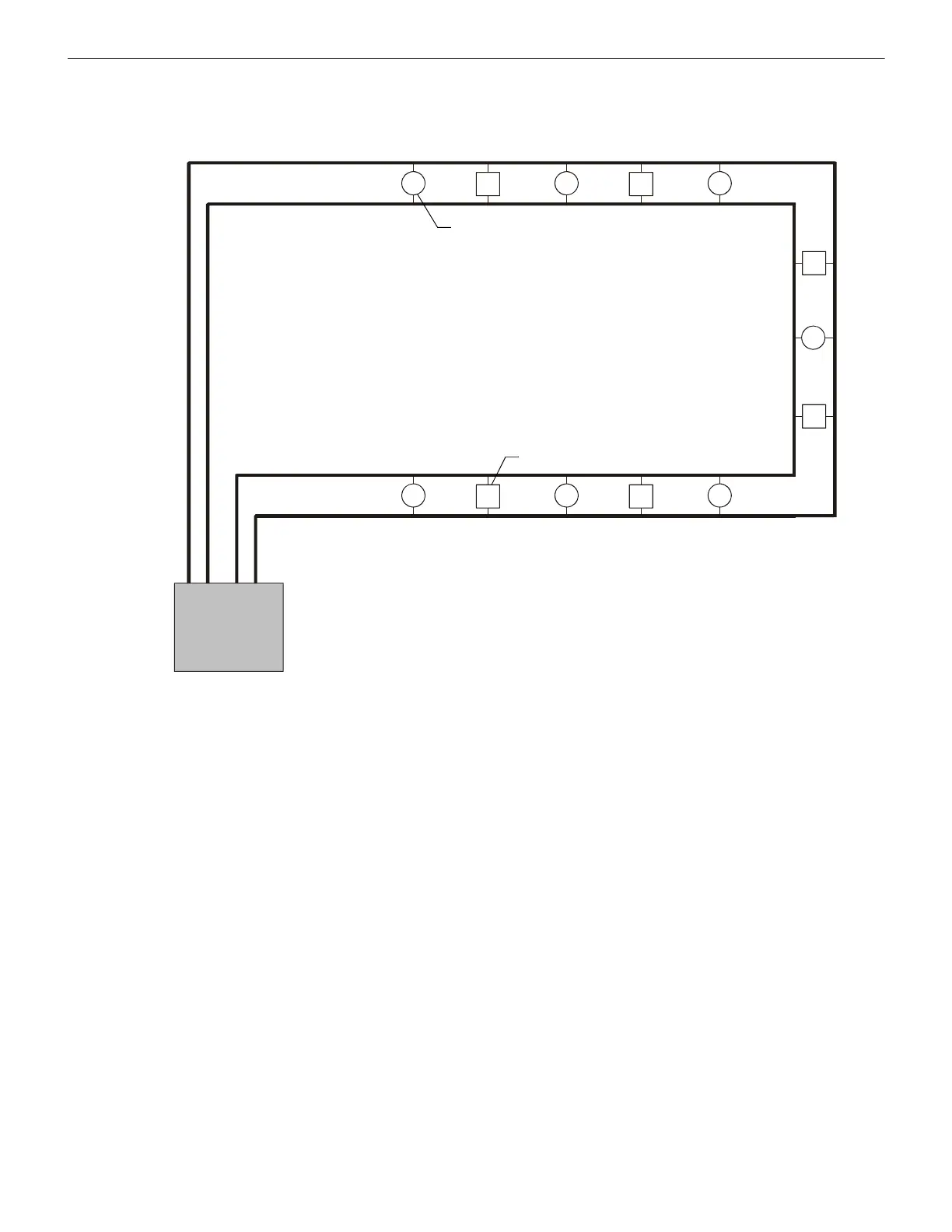

Figure 3.2 Basic NFPA Class A SLC
