FireLite SLC Wiring Manual — P/N 51309:R3 7/29/2019 51
CRF-300-6 Circuit Board Information Relay Modules
7.3 CRF-300-6 Circuit Board Information
T102
ADDRESS
DISABLE
NONE
ONE
TWO
THREE
N.C. N.O.
COMM
BASE ADDRESS +0
N.C. N.O.
COMM
BASE ADDRESS +1
N.C. N.O.
COMM
BASE ADDRESS +2
N.C. N.O.
COMM
BASE ADDRESS +4
N.C. N.O.
COMM
BASE ADDRESS +5
Disable Address
Place shunt onto
required pins.
SLC Address
Set rotary switches to
address required.
Status Indicators
Green LEDs are
controlled by FACP to
indicate status of each
module address.

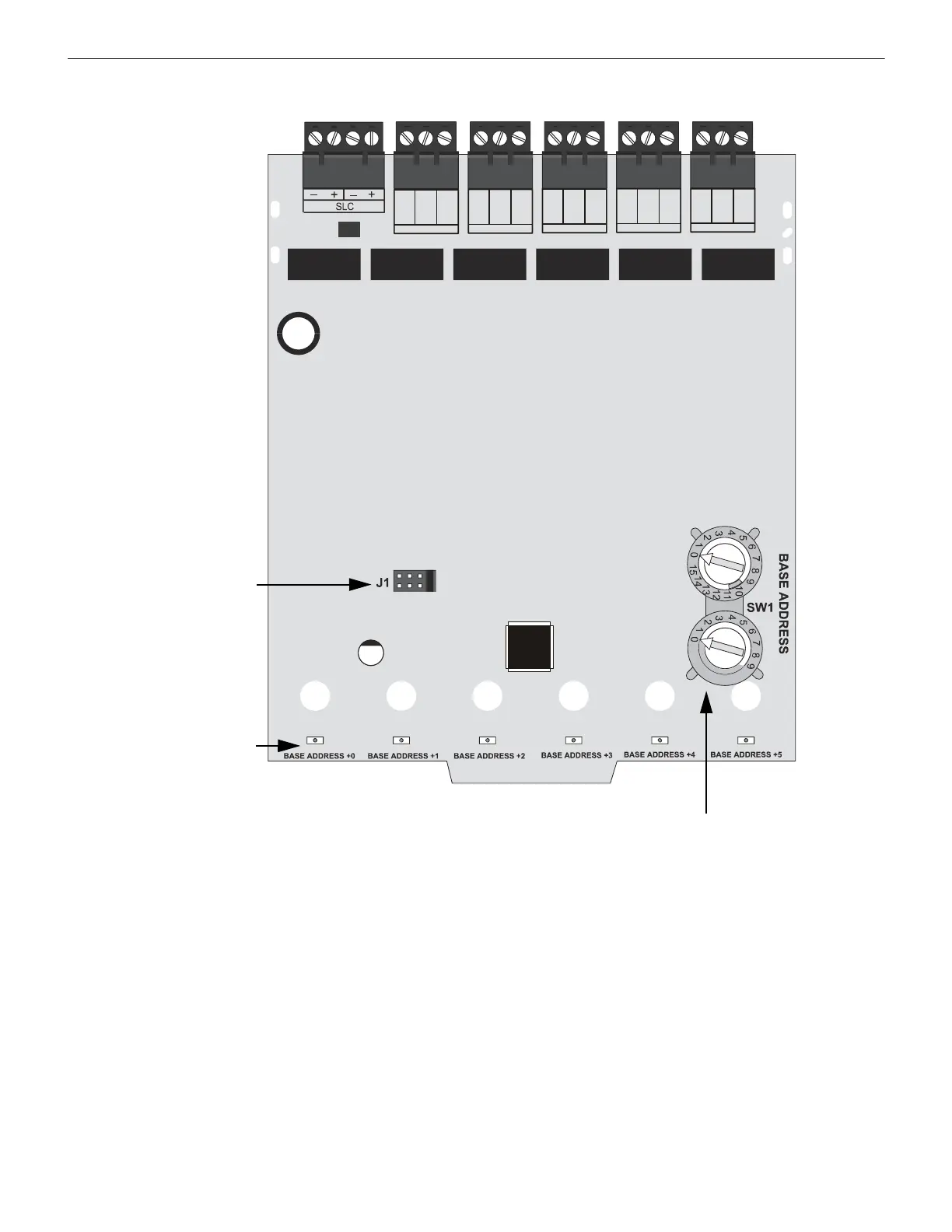

Figure 7.2 CRF-300-6 Control Relay Module
crf-300-6.wmf
