Owner’s Guide 400-305-000-EFS
4
ENGLISH
n Cut power at the main electrical panel to avoid electric shock.
o Remove the existing switch if applicable.
p Install the bath fan controller.
q Apply power at the circuit breaker.

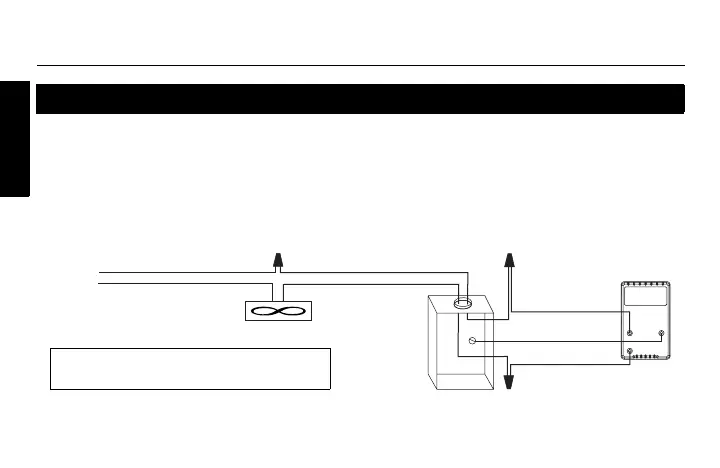

2-wire installation
black
white
black (LINE)
black (LOAD)
green (GND)
120
VAC
black
white
For installation in wet locations, protect the circuit
with a ground fault circuit interrupter (GFCI).
