13-13

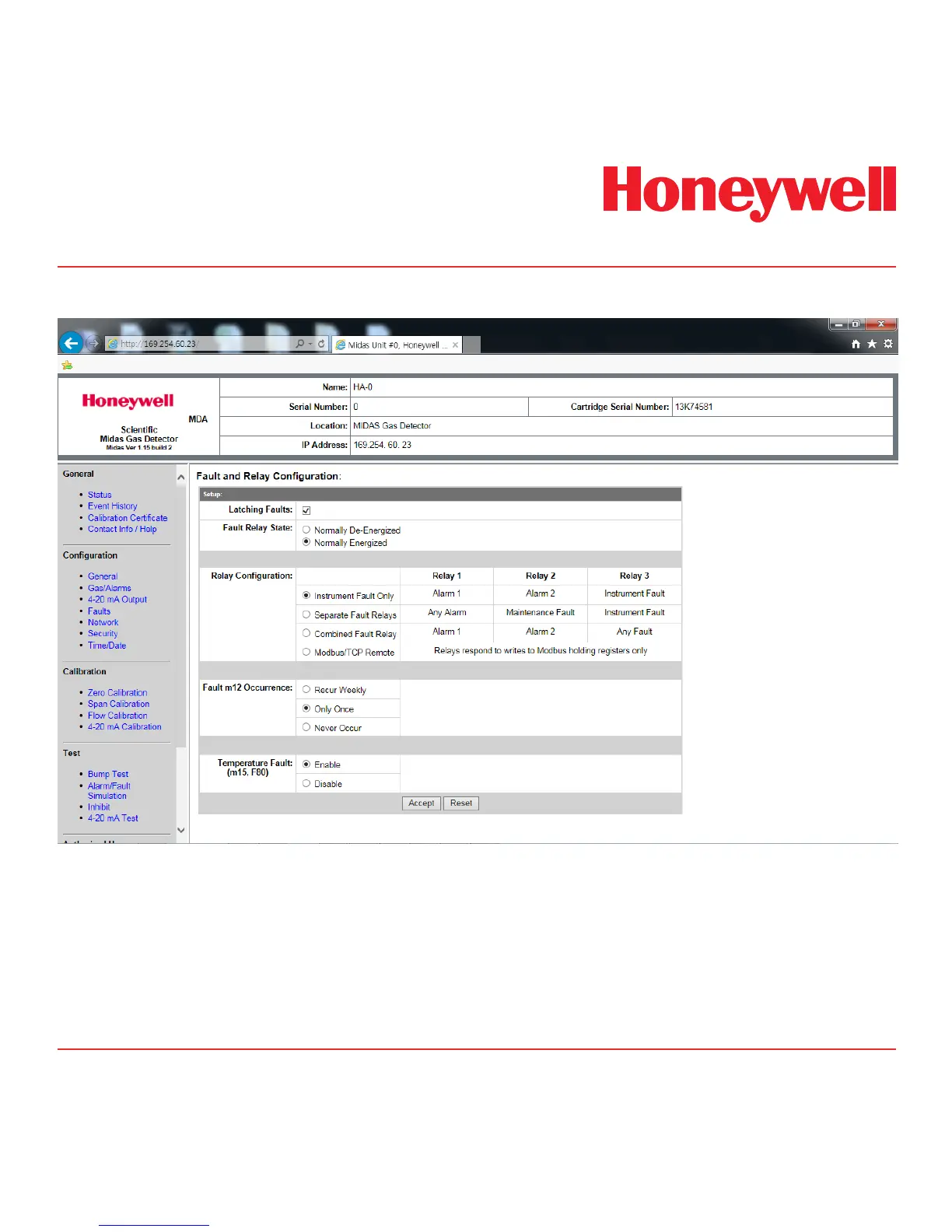

Diagram 13-12. Fault and Relay Conguration.
This page enables the user to select latching fault mode; normally energized or de-energized mode for
the relays. The relays can be configured in 4 states. Three states allow local response and one allows
remote Modbus/TCP control. This page also allows the user to configure the reoccurrence frequency for
the “m12” = “Cartridge Expires Soon” notifications. The temperature fault can also be configured here
(to enabled or disabled).
