Honeywell Midas User Manual

Midas
®
Gas Detector
4-3
7.9 in
(201 mm)
6.0 in
(152 mm)
3.2 in
(81 mm)
2.5 in
(62 mm)
3.2 in
(83 mm)

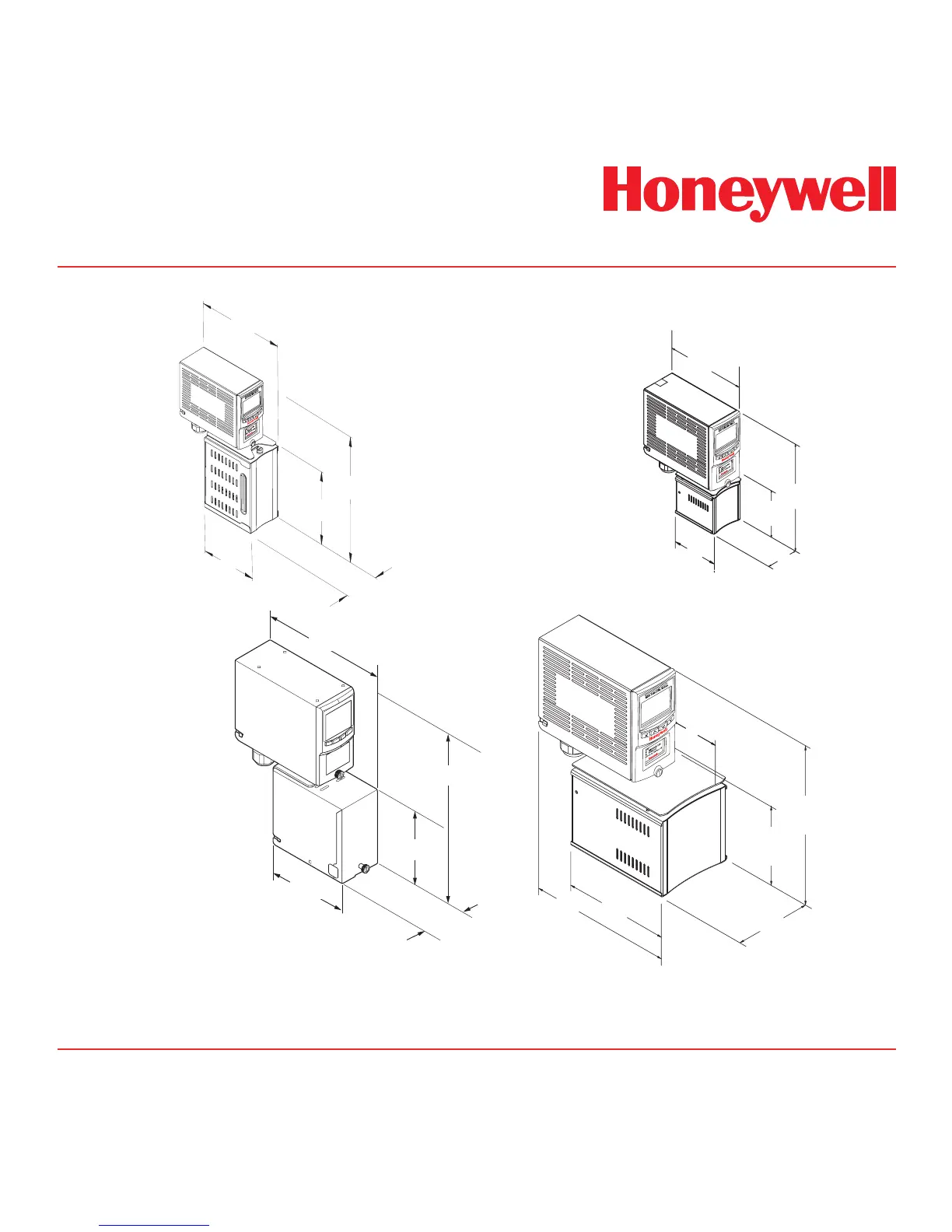

Midas
®
Transmitters and Pyrolyzers
4.0 in.
(101 mm)
8.2 in.
(209 mm)
5.5 in.
(140 mm)
4.4 in.
(113 mm)
9.1 in.
(233 mm)
2.3 in.
(59 mm)
MIDAS-T-HTP
Note: Heat shield not present on all pyrolyzers.
3.9 in.
(205 mm)
3.9 in.
(98 mm)
2.4 in.
(60 mm)
5.2 in.
(132 mm)
9.6 in.
(244 mm)
Midas-T-00P
MIDAS-A-
103
honeywell
honeywell
MDA Scientific Midas
PN: MIDAS-E-CDX
SN: 12K-48397
Activate by 24-Nov-12
MIDAS-T-0P3
MIDAS-A-039
MIDAS-T-NP1
LQ
PP
LQ
PP
LQ
PP
LQ
PP
LQ
PP

Honeywell Midas Specifications

General

Power Supply	24 VDC
Detection Technology	Electrochemical, Infrared
Sampling Method	Diffusion
Display	LCD
Communication	Modbus RTU, 4-20mA
Operating Temperature	-20°C to +50°C
Humidity Range	0% to 95% RH (non-condensing)
Target Gas	Multiple gases
Response Time	< 30 seconds
Operating Humidity	0% to 95% RH (non-condensing)
Outputs	4-20mA
Protection Rating	IP66
Certifications	ATEX, UL, CSA
Detection Gases	Oxygen (O2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Methane (CH4), and others
