Honeywell Midas User Manual

Midas
®
Gas Detector
4-6
DIN Rail Bracket
Spacer Bracket
2x M4 Screws
Secures Midas
®
to
Spacer Bracket
4x M3 Screws
Secures DIN Rail
to Spacer Bracket
Optional Midas
®
DIN Rail Mount
Optional Midas
®
Pyrolyzer Adjustable “L” Bracket Mount
Optional Midas
®
Adjustable “L” Bracket Mount
mounting bracket
screws
Standard Midas
®
Wall Mount

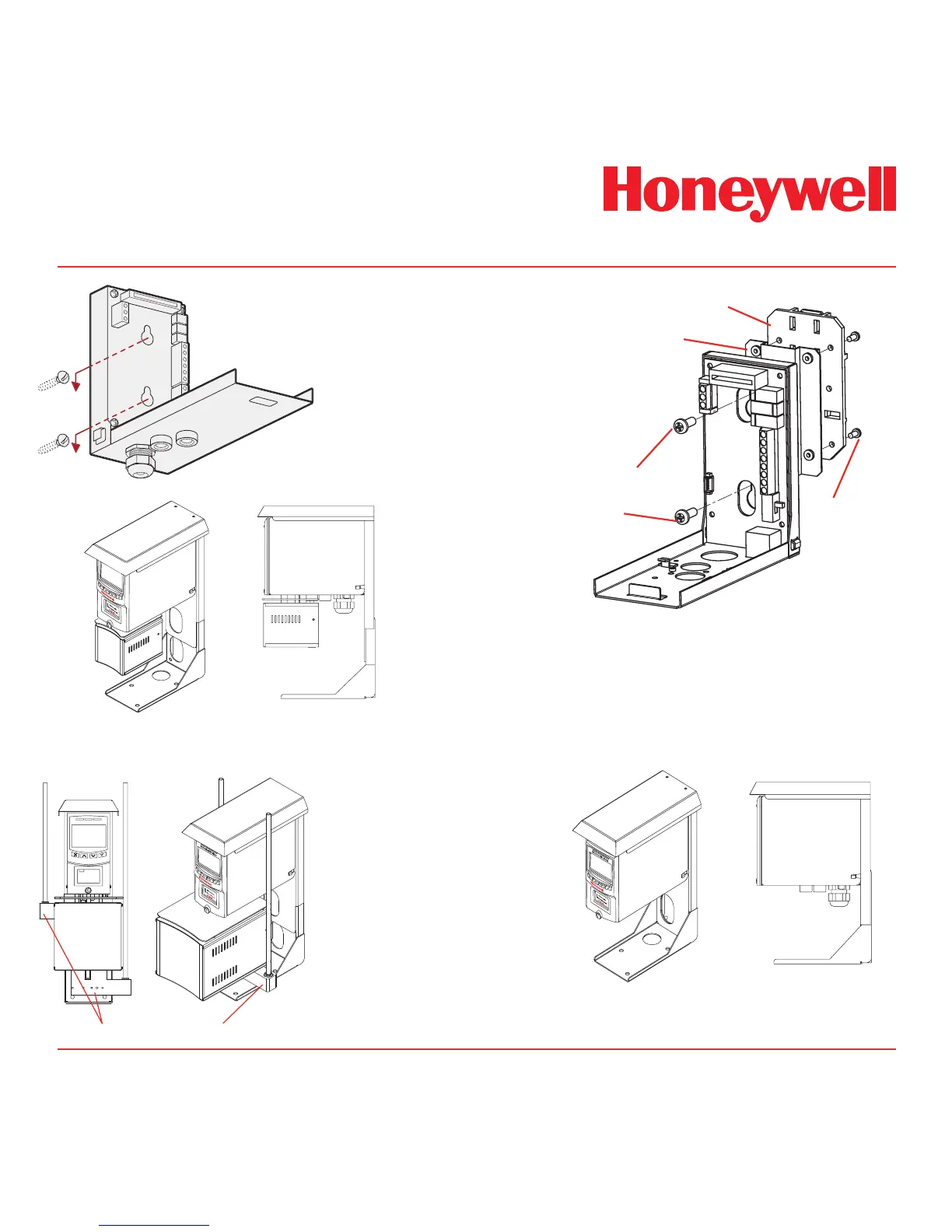

Diagram 4-3. Mechanical installation
Note:
When using the Adjustable
“L” bracket with the High-
Temperature Pyrolyzer
unit, (2) Top Access Tubing
Connectors (MIDAS-A-
031) must be used to insure
proper operation.
Top Access Tubing Connector
(MIDAS-A-031)
honeywell
honeywell
MDA Scientific Midas
PN: MIDAS-E-CDX
SN: 12K-48397
Activate by 24-Nov-12

Honeywell Midas Specifications

General

Power Supply	24 VDC
Detection Technology	Electrochemical, Infrared
Sampling Method	Diffusion
Display	LCD
Communication	Modbus RTU, 4-20mA
Operating Temperature	-20°C to +50°C
Humidity Range	0% to 95% RH (non-condensing)
Target Gas	Multiple gases
Response Time	< 30 seconds
Operating Humidity	0% to 95% RH (non-condensing)
Outputs	4-20mA
Protection Rating	IP66
Certifications	ATEX, UL, CSA
Detection Gases	Oxygen (O2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Methane (CH4), and others
