10.2.2 Wiring Solar or External DC (13.5 to 15V DC) Power for MIWIPCB

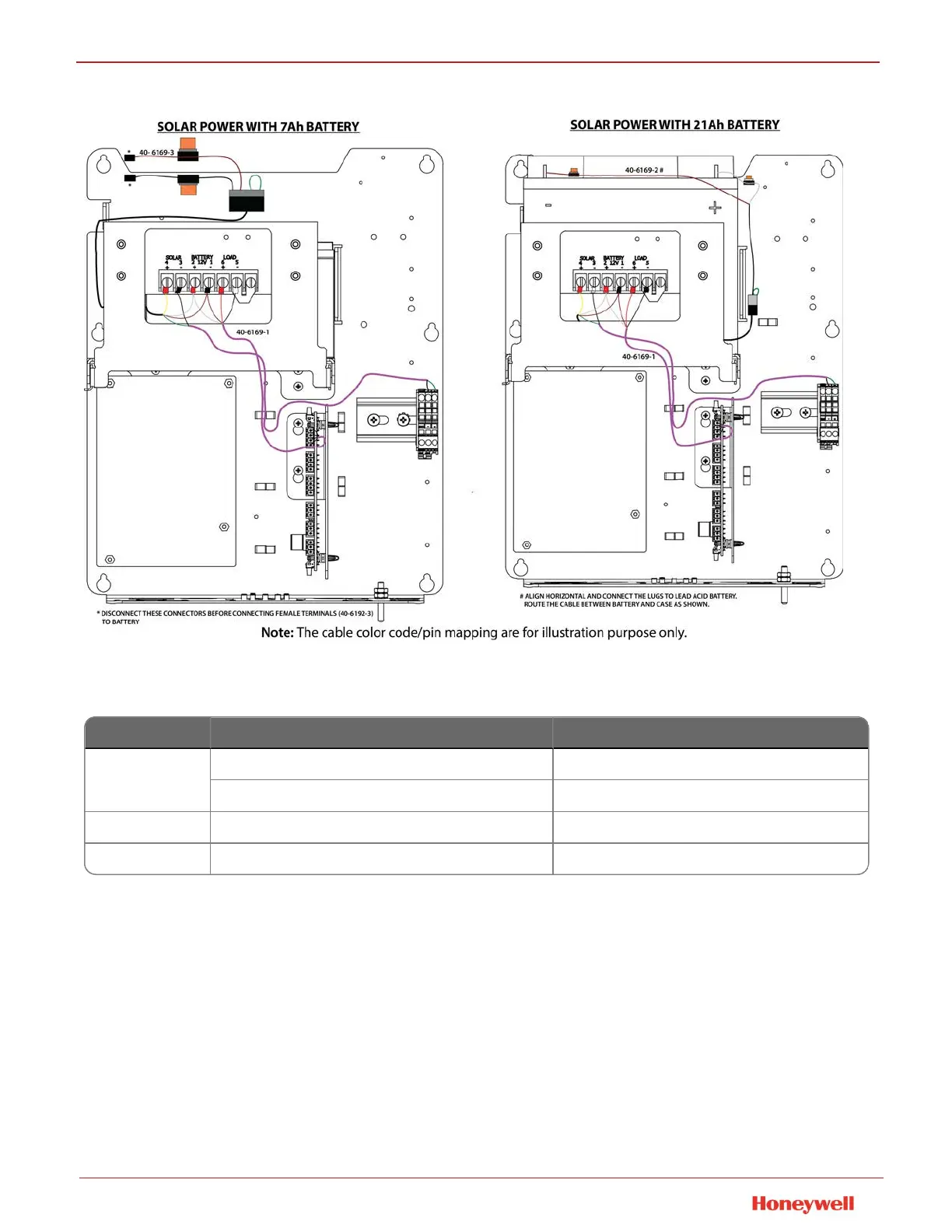

Figure 10-12: Electrical Wiring - SOLAR POWER WITH 7Ah/21Ah SLA BATTERY
Cable (Part#) Connects To
40-6169-1
Connector from Solar Charge controller External power input terminal block
Connector from Solar Charge controller Power Distribution Board P1 (DC-IN)
40-6169-2 Connector from Solar Charge controller 12V 21Ah lead-acid battery
40-6169-3 Connector from Solar Charge controller 12V 7Ah lead-acid battery
