ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
70
997-263-000-11, Issue 11
January 2010
5.6.1.2 Sensor Sensitivity Setting
This option allows the sensitivity of sensors to be changed
during device configuration. Access is via the Circuit menu.
Individual sensor Alarm and/or Day settings can be changed.
VIEW
TM
Sensors and SMART 4 Multi-Sensors
The ID60 Panel supports VIEW
TM
and SMART 4. See
Appendix 2, ID60 Single Loop Panel Differences.
Co-operative Multi-sensing Groups
The ID60 Panel supports co-operative multi-sensing through
the Advance Warning Addressable Combustion Sensing
(AWACS
TM
) software algorithm for the following devices:
VIEW
TM
, ION, OPT, MLT, OPX/SM2 (Optiplex Multi-Sensor),
SM3, SM4, (SMART 3 and 4 Multi-criteria Sensors). Once
included in the AWACS
TM
algorithm, the sensitivity
configuration follows that for VIEW
TM
device types, i.e. using
levels and not a percentage of alarm. During configuration
of the sensor sensitivity values, the LCD returns to the
previously configured value if any of the following occurs:
a. The ‘
4
button on the numeric keypad is pressed.
b. The panel state is unchanged for 1 minute.
c. A value outside the predefined operating limits (80% to
120% or L1 to L6 for OPX/SM2, SM3 or SM4) is entered.

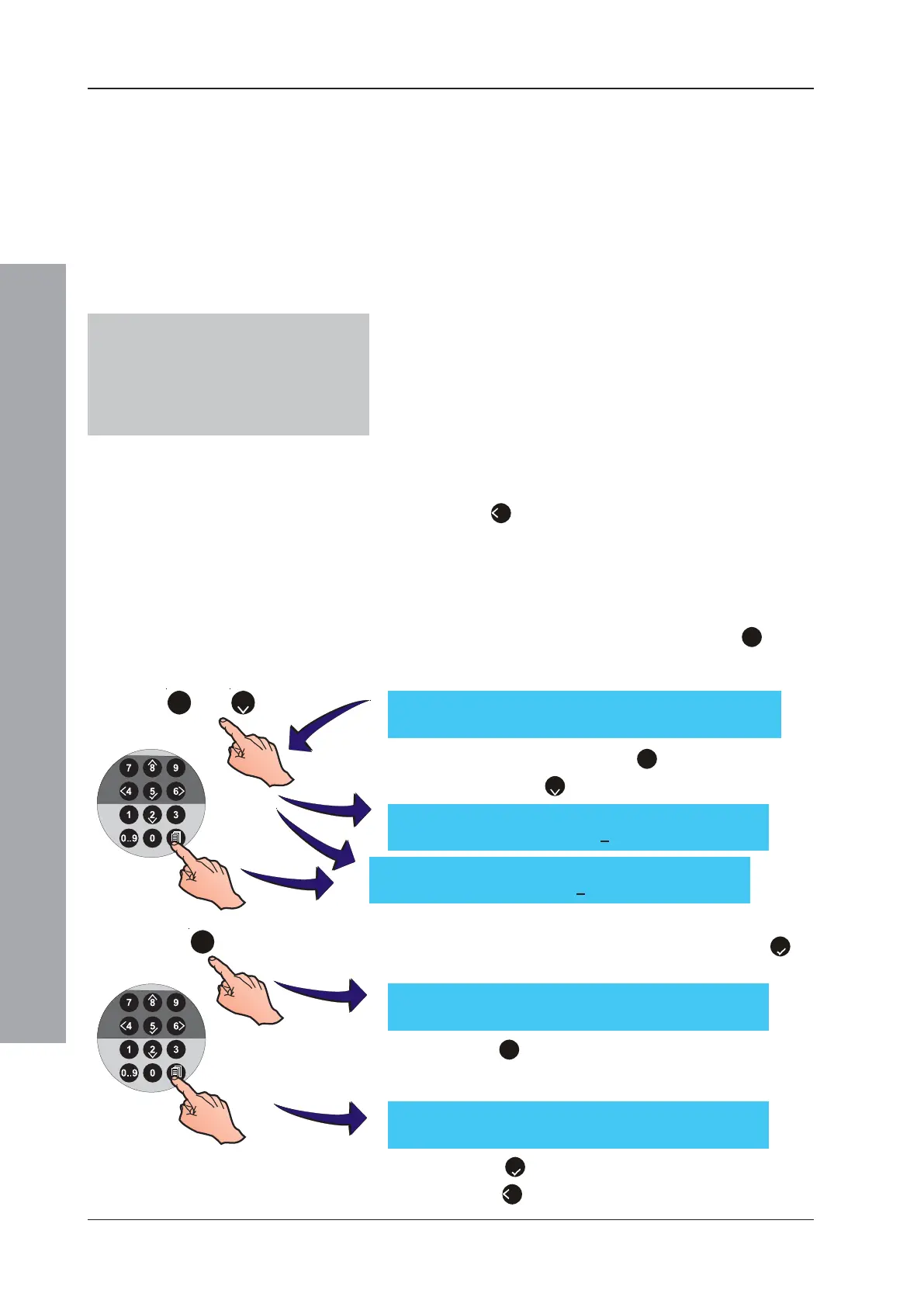

To change the sensor sensitivity settings:
1 At the sensor attributes menu, press the ‘
3
’ button
on the numeric keypad to display the Sensor Sensitivity
Setting menu:
2 Using the numeric keypad, press ‘
1
to select the Alarm Sensitivity
setting or press ‘
2
’ to select the Day Mode Sensitivity setting:
3 At the appropriate prompt, use the numeric keypad to
enter the desired percentage value. Press ‘
5
’ to
confirm the value entered.
4 Press ‘
3
to select a new AWACS group, if required. At
the appropriate prompt, use the numeric keypad to
enter the desired AWACS group:
5 Press ‘
5
to confirm the AWACS group entered or
press ‘
4
’ to cancel.
[Sensor nn - AAA] Sensitivity
Enter new alarm level : 120 < : Cancel
[Sensor nn - AAA] Sensitivity
1: Alarm (100%) 2: Day (100%) 3: Group (00)
[Sensor nn - AAA] Sensitivity
Enter day mode alarm : 80 < : Cancel
[Sensor nn - AAA] Sensitivity
1: Alarm (120%) 2: Day (80%) 3: Group (00)
1
2
or
2
1
[Sensor nn - AAA] Sensitivity
Enter new AWACS Group : _ < : Cancel
3
SMART 4 Devices
The mult-criteria sensor SMART 4
logical device type, depending on loop
protocol, is SM4 (CLIP) or SMT4
(OPAL).
