Honeywell Notifier ID50 User Manual

ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
69
997-263-000-11, Issue 11
January 2010
5.6.1.1 Zone Setting
This option is used during manual configuration to assign
a specific device to a specific zone. The option is
accessed from the Commissioning Menu.
A maximum of 32 possible zones can be configured,
consisting of 16 Fire alarm zones (1 to 16) and 16
secondary zones (17 to 32). The secondary zones are used
for AUX plant alarm and warning inputs. Device types SDR,
SDH, CTL, RLY, EST, ESO, ESM, TxD, ESE, RLE and
CTE can be in any zone.
To change the zone of a specified sensor or module,
selection of either sensors or modules at the Devices
menu is first required. If sensors are selected, the display
prompts for zone editing, as follows;

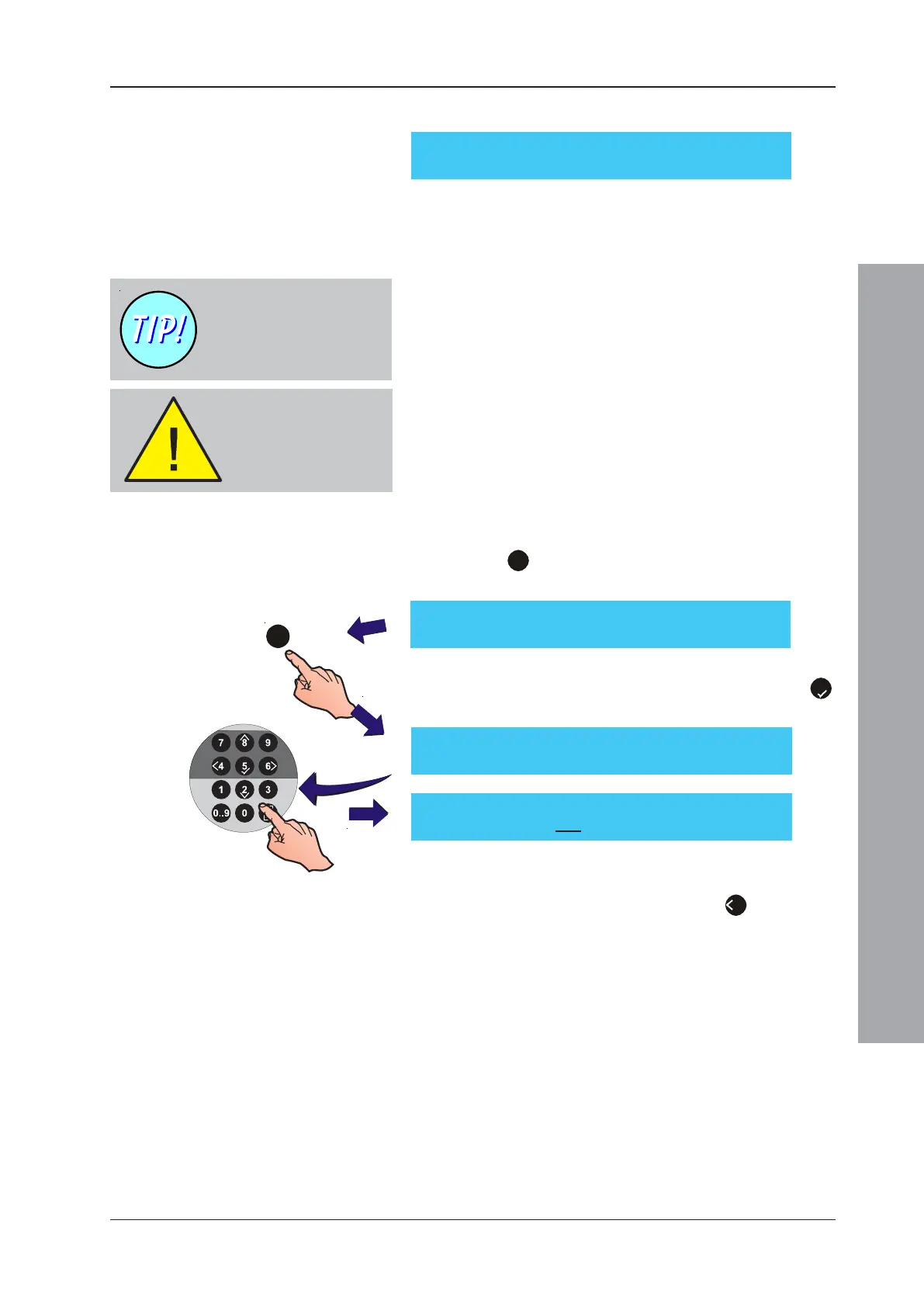

1 From the menu displaying the device attributes, press
the ‘
1
’ button on the numeric keypad to access the
Zone Setting menu:
2 Using the numeric keypad, enter the required zone
number between 1 and 16 and confirm using the ‘
5
’
button.
If the entered number is out of the permissible range,
the zone number reverts to that previously allocated.
To-enter the zone number or press ‘
4
’ to cancel.
Note: Standard input modules can be assigned to any of
the 32 zones. Conventional detector input modules
(ZMX) can be assigned to zones 1 to 16 only. When
an input module is assigned to a zone in the range
1 to 16, it is given the default type ‘MCP’ for a Manual
Call Point. When an input module is assigned to a
zone in the range 17 to 32, it is given the default
type ‘AUX’ for plant alarm input. Section 5.6.1.3,
Type Setting describes how to select the input type.
Output modules can be assigned to any of the 32
zones for fault reporting. The operation of the
output depends on the CBE Rule to which the
module is assigned.
Fire Inputs can only be
assigned to
Zones 1 to 16.
[Sensor nn - AAA] 1 : Zone (nn)
3 : Sensitivity 4 : [ Blank/Existing Text ]
[Sensor nn - AAA] 1 : Zone (nn)
Enter New Zone = ____ < : Cancel
[Sensor nn - AAA] 1 : Zone (nn)
Enter New Zone = 01 < : Cancel
1
The procedure for
changing the zone of a
module is the same as for
a sensor.
[Module nn - AAA] 1 : Zone (nn) 2 : Type
3 : CBE Rule (nn) 4 : [ Blank/Existing Text ]
d. The device text string (see Section 5.8, Text Editing).
