Configuration Mode

92997-263-000-11, Issue 11

January 2010

Text Editing

Note: The following also applies when editing device and

system text.

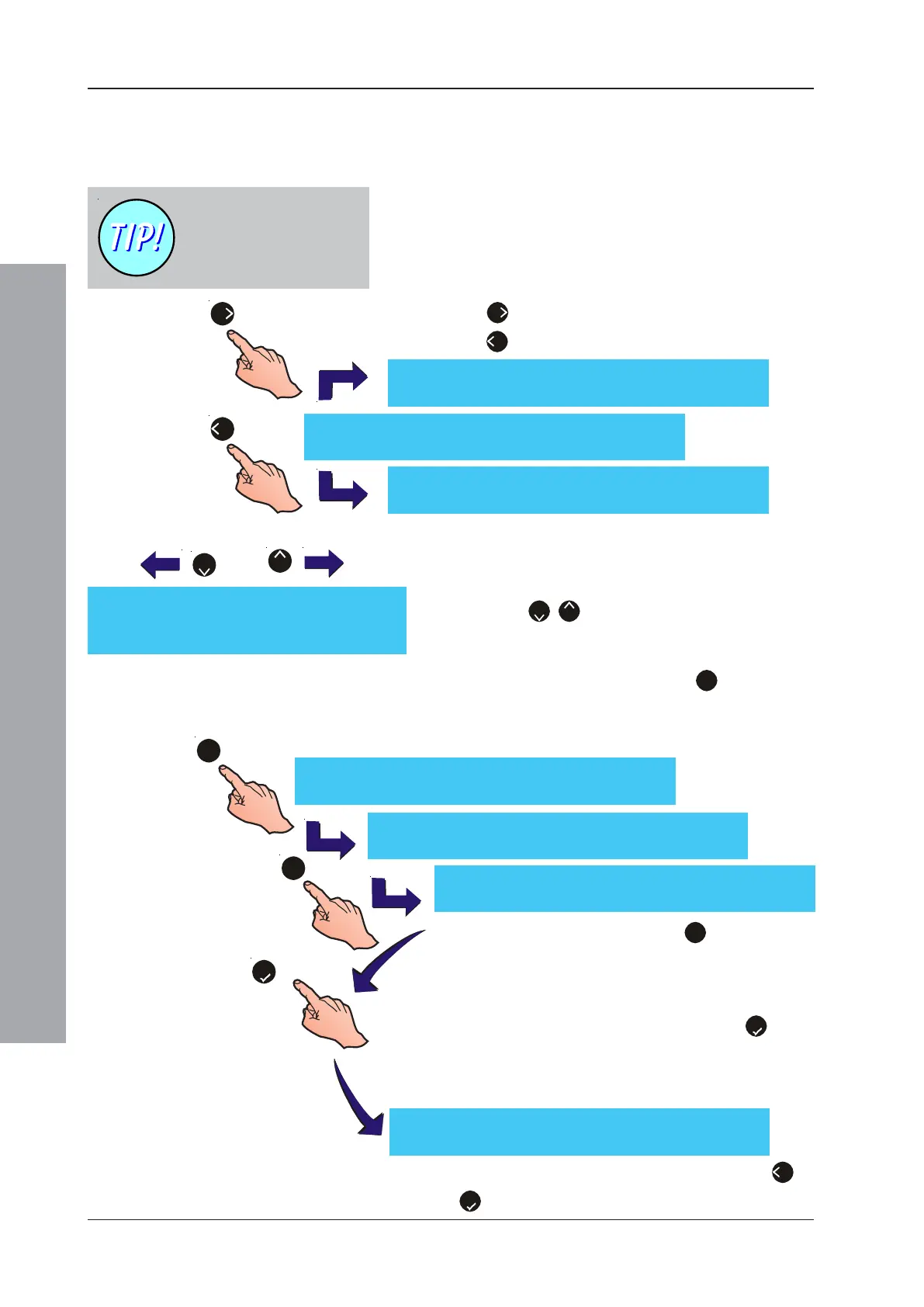

The upper line of the LCD editable text menu displays

an area of twenty (20) characters. A flashing cursor on

the LCD indicates the currently-editable position. To enter

or edit existing text, proceed as follows.

1 To move the cursor within the editable area, press

the ‘

’ pushbutton to move it to the right or press

the ‘

’ pushbutton to move it to the left.

2 With the flashing character selected/cursor placed in

the desired position, press the appropriate buttons to

perform one of the following actions:

a. Use the ‘

’ buttons to scroll through the

alphabet in the order indicated at left.

b. Using the numeric keypad, press ‘

’ to delete the

flashing character. All text to the right of the deleted

character will move one space left and a blank

character will be inserted at the end of the line.

c. Using the numeric keypad, press ‘

’ to add a space

at the current position. All text to the right of the inserted

space will move one position right. If the text string now

exceeds 20 characters, the last character will be deleted.

3 When the text editing is completed, press the ‘

’ button

to confirm. The LCD returns to the Zone Text menu.

Note: The LCD will only register a maximum of 20

characters.

4 Select another zone for text editing or press the ‘

’ or

‘

’ button to return to the main Commissioning menu.

[blank/existing text ] ¦ : Char : Done
