Honeywell NOTIFIER LDM-32 - Appendix G: SFP-1024 (UL 8 th)

66 LDM Series Instruction Manual — P/N 15885:H3 8/12/2019
Appendix G: SFP-1024 (UL 8th)
G.1 Capabilities
When installed with an SFP-1024 Fire Alarm Control Panel (FACP), the LDM annunciator is used to provide an interface to a custom
graphic annunciator. All releases of SFP-1024 software can support LDM modules, no special software is required. The LDM can be
assigned to any of the panel annunciation points.
An LED-10IM Interface Module is required on the SFP-1024 to allow connection of annunciators to the panel. A maximum of 32
devices can be connected to the EIA-485 output of the LED-10IM Module.
For more information on annunciator operation and FACP programming under various specific applications, refer to the SFP-1024 doc-
uments referenced in Section 1.3, “Related Documentation”, on page 7.

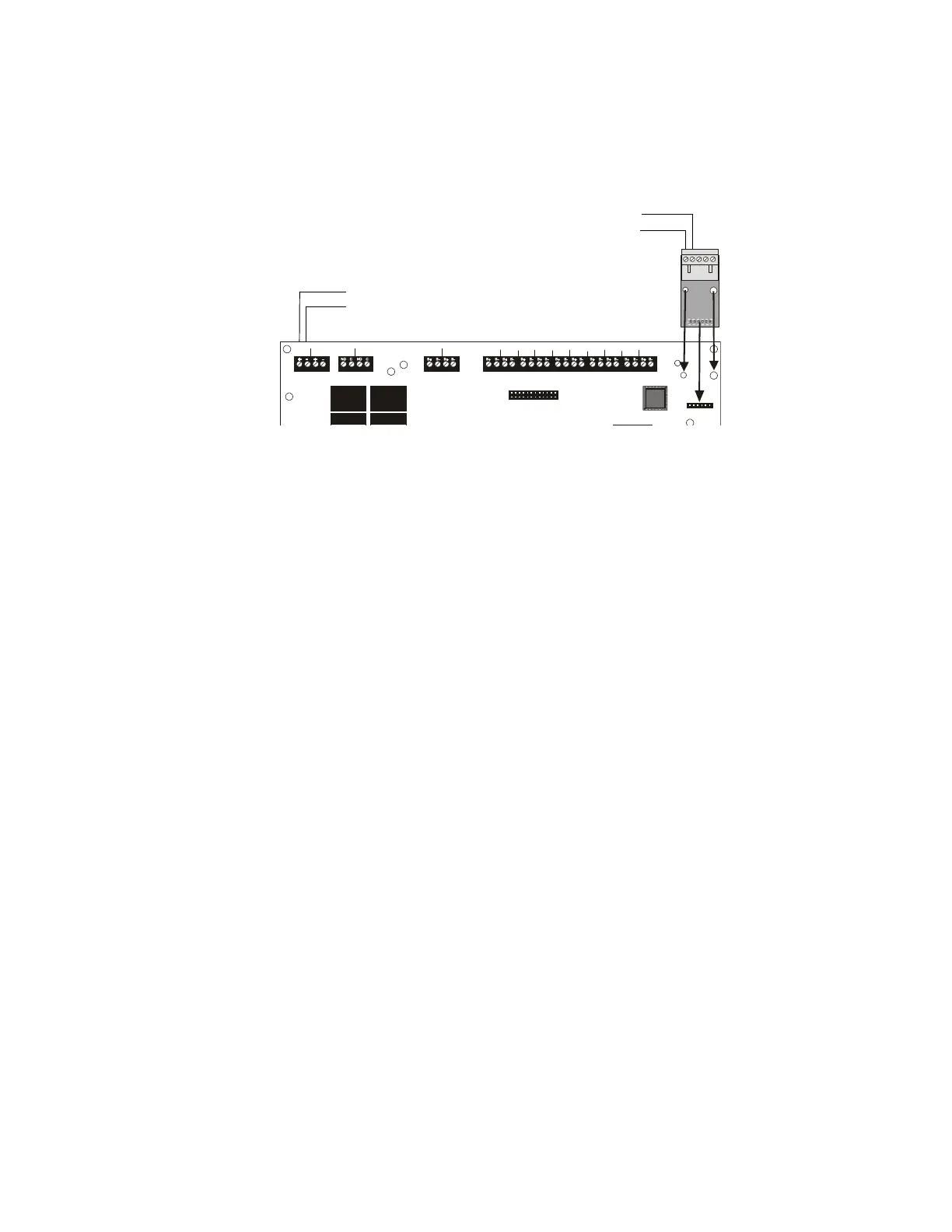

24V NON
RESETTABLE
24V
RESETTABLE
RELAY 1 RELAY 2
BELL 1
BELL 2 ZONE 1 ZONE 2 ZONE 3
ZONE 4
ZONE 5
ZONE 6
ZONE 7
ZONE 8
ZONE 9
ZONE 10
LED-10IM INTERFACE
MODULE
CLASS A CONVERTER MOD
TB2 TB3
TB4
TB5
J10
J6
J1
TB1
+ - + -
SFP-1024
LED-10IM
EIA-485 (-)
(+) 24 VDC
(-) Nonresettable Power
EIA-485 (+)
