48 NFS2-3030 Operations Manual — P/N 52546:A 11/29/2005
Read Status Annunciator
3.11 Annunciator
When an annunciator address is entered into the Point Select Screen and the ACCEPT soft key is
pressed, the following screen will display if the point is a monitor module.

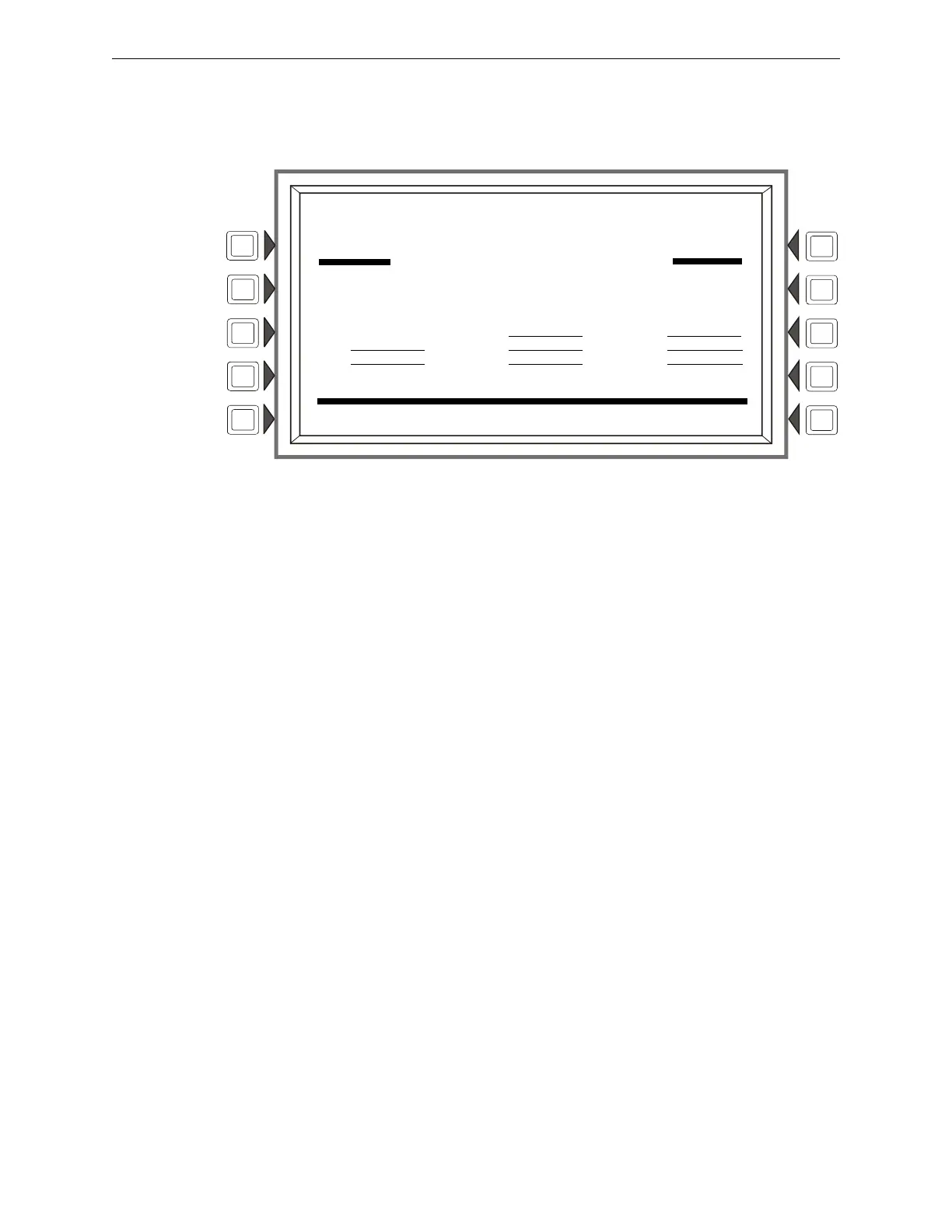

Figure 3.11 Annunciator Screen - Read Status
Display
Lines 1- 4 - This could display any current event message, or, as in this example, the System
Normal message
Line 5 - Screen title and the address of the point being read.
Line 6 - Displays the annunciator mode.
Line 7 - Displays the state of the active LED.
Line 8 - Displays the state of the trouble LED.
Line 10 - Displays the annunciator source(s).
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A FRI APR 22, 2005
READ ADDRESS: N124A08P09
MODE: CONTROL
ACTIVE LED: OFF
TROUBLE LED: OFF
SOURCE: L01M001 L01M002
BACK
