40 NFS2-3030 Operations Manual — P/N 52546:A 11/29/2005
Read Status Smoke Detector
Enter an address to view its attributes (the cursor will be in the underlined section).
NEXT POINT/PREVIOUS POINT - Press to view next or previous point.
ACCEPT - Press to accept the displayed point for further viewing.
Pressing the ACCEPT soft key on the Point Select Screen will display the information that
corresponds to the chosen point. Each point type has its own screen.
3.2 Smoke Detector
When a detector address is entered into the Point Select Screen and the ACCEPT soft key is
pressed, the following screen will display if the detector is a smoke detector.

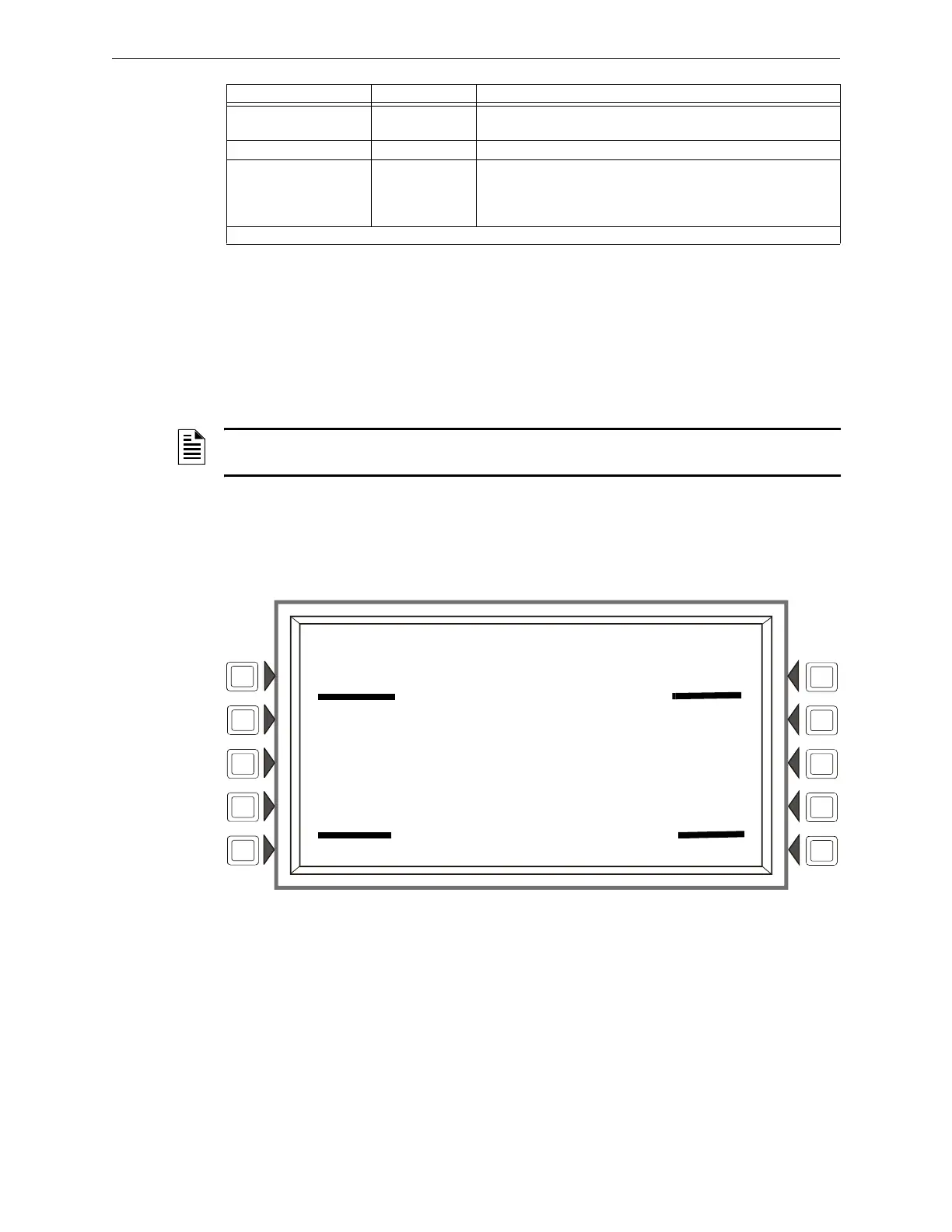

Figure 3.2 Smoke Detector Screen - Read Status
Display
Lines 1- 4 - This could display any current event message, or, as in this example, the System
Normal message.
Line 5 - This line contains the screen title and the address of the point being read.
The area between the separator lines, lines 6-14, shows all information concerning the selected
point, which is N124L03D052 in the above example.
Special Function Zone NxxxZFxx ZF=Special Function Zone, x=Special Function Zone number
(00, 01, 02, 03, 04, 05, 09)
Trouble Zone NxxxZTyyy ZT=Trouble Zone, yyy=Trouble Zone number (1-100)
DAA Speaker CKT NxxxAyySn N indicates Node number, xxx=DVC/DVC-EM Node number, A
indicates DAA-5025 or DAA-5070 Audio Amplifier, yy=DAA
address (01 through 32), S indicates Speaker circuit, n =
Speaker circuit number (1-4)..
* The Nxxx preface to all the above address formats refers to the node number, where N = node, xxx = the network node number.
Type Address Format*
Table 3.1 Address Formats (2 of 2)
NOTE: The first four lines of the display may indicate an alarm for a point unrelated to the
requested point information displayed below them.
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A FRI SEP 23, 2005
READ ADDRESS: N124L03D052
AUTOMATIC INACTIVE
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z005 SMOKE(PHOTO)
Z005, Z027, Z066, , ,
,,,,,
VALUES: 011% OF ALARM, 045% OF PREALARM
ALARM: 6= 1.66%, PREALARM: 3= 0.47%
ACTION/STATUS: NONE/VERY CLEAN
PEAKS:56% VERIFY COUNT:02 CO-OP:D100,158
10:22:34A FRI SEP 23, 2005
BACK
