PRO3200 Installation
Setting Up the PRO3200 Hardware
PRO3200 (PRO32IC) Installation and Configuration Guide, Document 800-15494 15
Run TimeSupplying Power to the PRO3200 Interface
3.5 Supplying Power to the PRO3200 Interface
The processor accepts 12Vdc for power. Locate power source as close to the unit as possible and
connect it with minimum of 18AWG wires.
Caution: Observe POLARITY on 12 VDC.

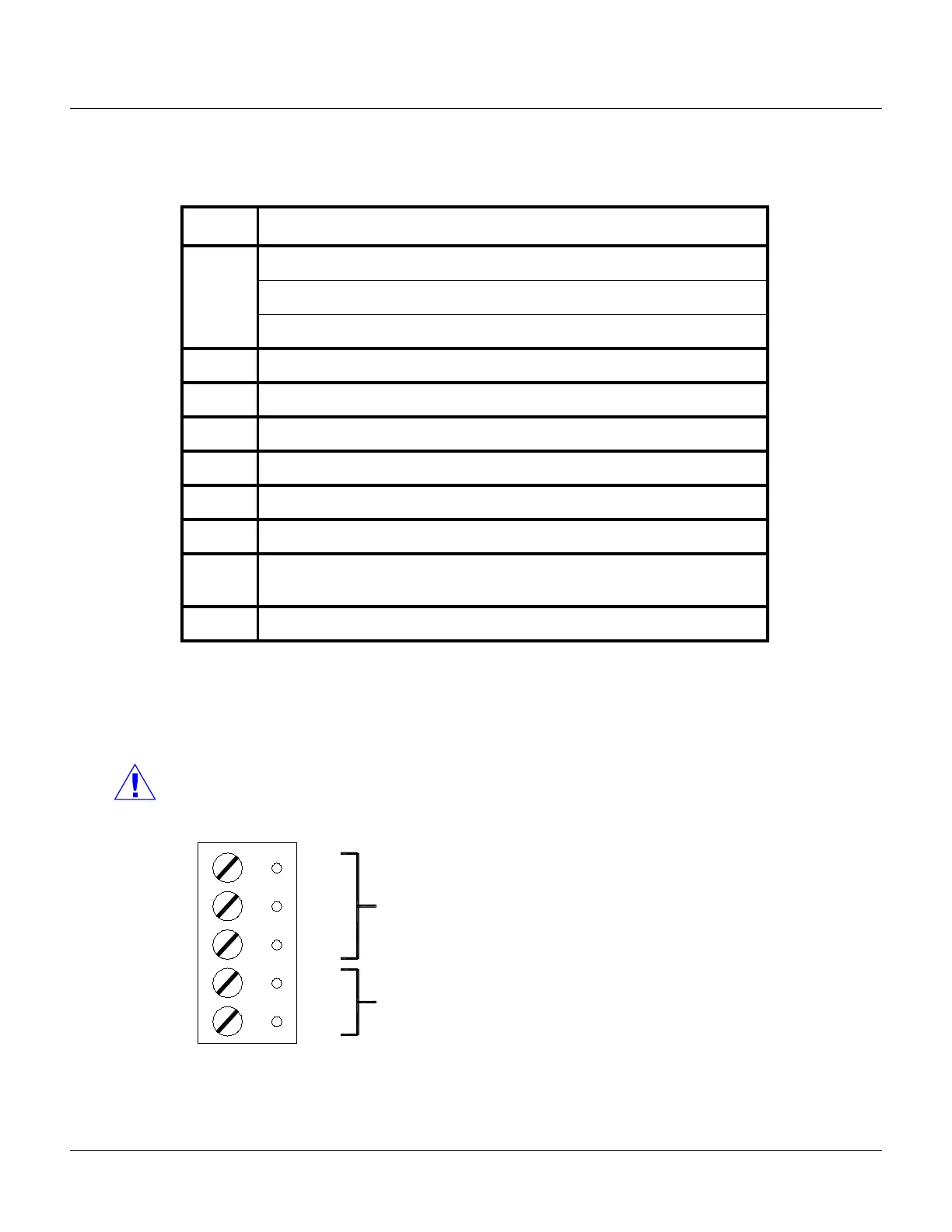

Figure 2: PRO3200 Power Terminals
Table 5 PRO3200 Status LED Combinations During Run Time
LED
Description
1 Off-Line / On-Line and Battery Status
Off-Line = 20% On, ON-Line = 80% On
Double Flash means the Battery is Low
2 Primary Host Communication Activity (Ethernet or Port 1)
3 Port 2 Communication Activity
4 Port 3 Communication Activity
5 ON = Writing to Flash Memory. Do NOT cut off power when this LED is ON.
6TBD
SPD On-Board Ethernet Speed. OFF = 10MBS. ON = 100MBS.
ACT OFF = No On-Board Ethernet Activity. ON = On-Board Ethernet Activity
(YELLOW LED).
LNK OFF = ON Link. ON = Good Link (GREEN LED).
PORT 3
+12V
GND
-
+
TB1
GND
TR-
TR+
12Vdc nominal
