PRO3200 Installation
System Configuration via Web Interface
PRO3200 (PRO32IC) Installation and Configuration Guide, Document 800-15494 19
4.4 Network Settings
Click the Network link on the navigation bar to display the Network Settings screen where you can
select the appropriate option button for dynamic or static IP address configuration:

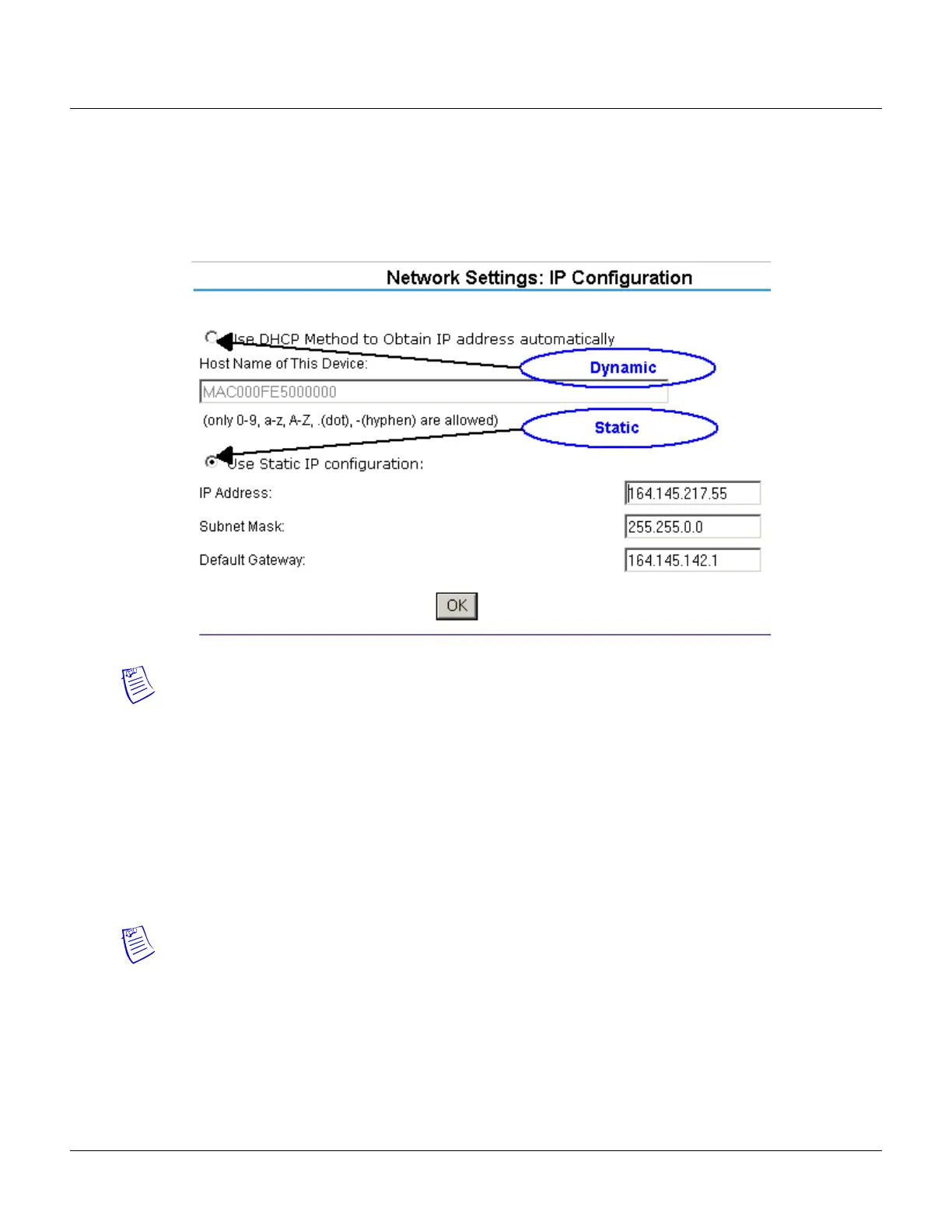

Figure 7: PRO3200 Web Server Network Settings Screen
Notes:
• The Host Name of This Device field contains the Media Access Control (MAC) address of the
PRO3200 controller board.
• The users can select the Dynamic IP option button and reserve an IP address for the MAC
address, or they can select the other option button and assign a Static IP address as well.
Dynamic IP Configuration Method
1. Click the Dynamic IP option button to select the Dynamic Host Configuration Protocol
(DHCP) method to obtain IP address automatically.
2. Click OK.
Note: The WIN-PAK communicates with the PRO3200 panel using an IP address. If you must use the
Dynamic IP option because of your network policies or configuration, you must reserve an IP address
at the DHCP server for the MAC (Media Access Control) address in the PRO3200 panel. The MAC
address is a unique identifier attached to network adapters. Each time the PRO3200 panel requests an
IP address, the DHCP server will assign the address that was reserved for it.
