4.3 Accessories

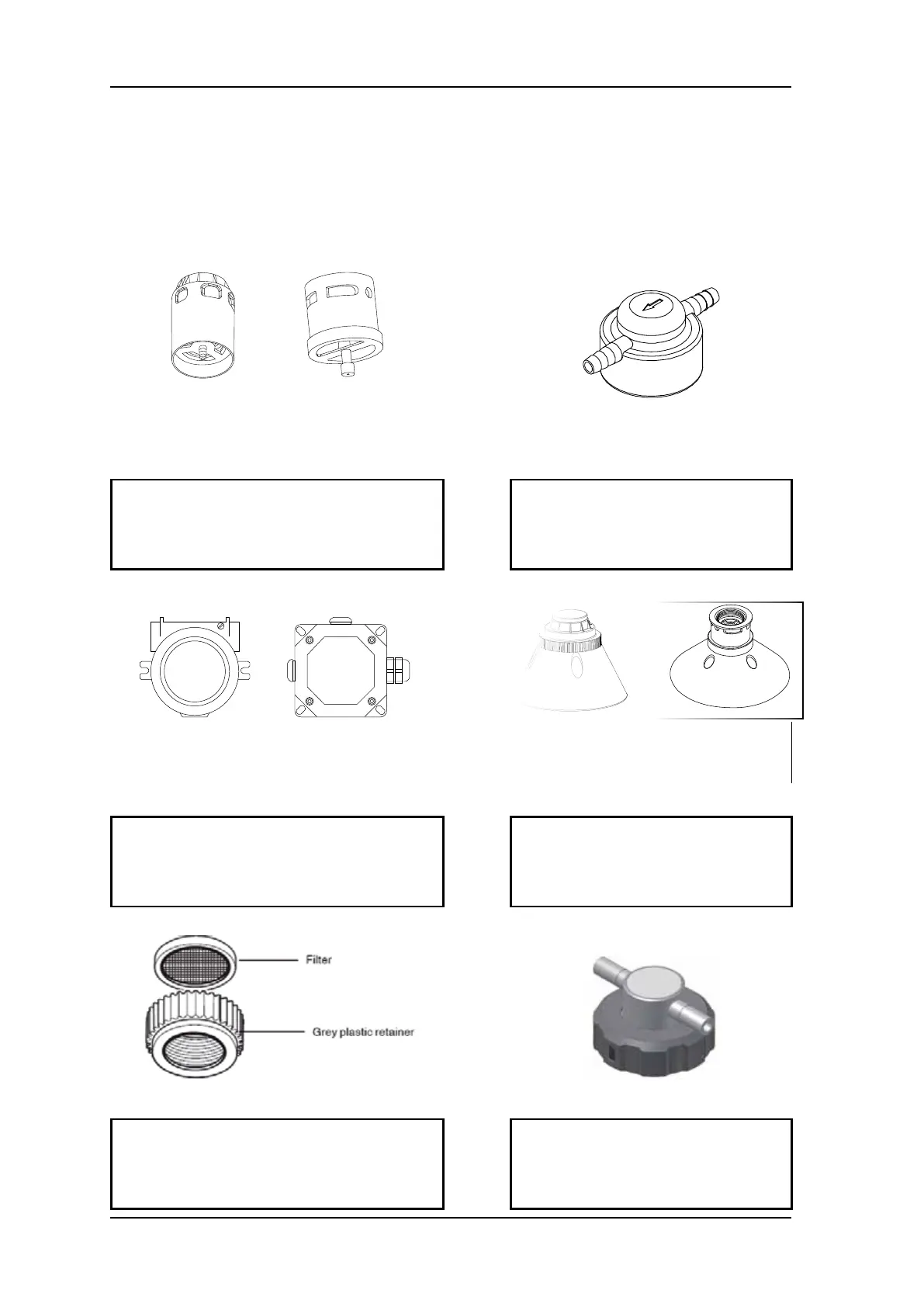

A range of accessories are available to allow use of Sensepoint XCD RFD in a wide
variety of applications. These include Pipe mounting bracket, Sunshade deluge cover,
Sensor collecting cone, Sensor flow Housing and Remote sensor mounting junction
boxes.
For Sensepoint XCD
(P/N: SPXCDWP)
For Sensepoint / 705
(P/N: 02000-A-1640/1635)
Calibration Cup
Standard Weather Protection
The Standard Weather Protection is designed to
protect the sensor from changes in environmental
conditions. This is recommended to be tted to
a Sensepoint XCD sensor and Sensepoint /
705 sensors.
The Gassing Cap (P/N: S3KCAL) is an optional
accessory that may be temporarily tted to
Sensepoint XCD ammable sensors for Gas
Response checking during commissioning and
routine maintenance.
For UL/CSA Junction Box
(P/N: 2430-0021)
For ATEX Junction Box
(P/N: 00780-A-0100)
For Sensepoint XCD
(P/N: SPXCDCC)
For Sensepoint / 705
(P/N: 02000-A-1642)
Remote Sensor Mounting Collecting Cone
UL aluminum junction box, ATEX standard junction box and
ATEX High temperature junction box (P/N: 2052D0001) are
optional accessories that can be used for remote sensor
mounting. Make the connection from the junction box to
the transmitter using suitable cable and cable glands.
The Collecting Cone is an optional accessory
that may be tted to the Weather Protection
of XCD and Sensepoint / 705 sensors.
The collecting cone is designed for use with
gases that are lighter than air.
Sensepoint Filter and Filter Housing Calibration Gas Flow Housing
Sensepoint Stainless steel lter (P/N: 00780-
F-0018) and Filter Housing (P/N: 00780-C-
0038) is an optional accessory can be used to
offer additional protection to the Sinter in dry,
and dusty applications.
The Calibration Gas Flow Housing (P/N: 02000-
A-1645) may be used for either calibration of the
Sensepoint / 705 sensor or if the Sensepoint /
705 sensor is to be used as part of a Aspirated
Sampling System.
