Sensepoint XCD RFD Technical Manual SPXCDHMRFEN Issue 4_08-2016
71

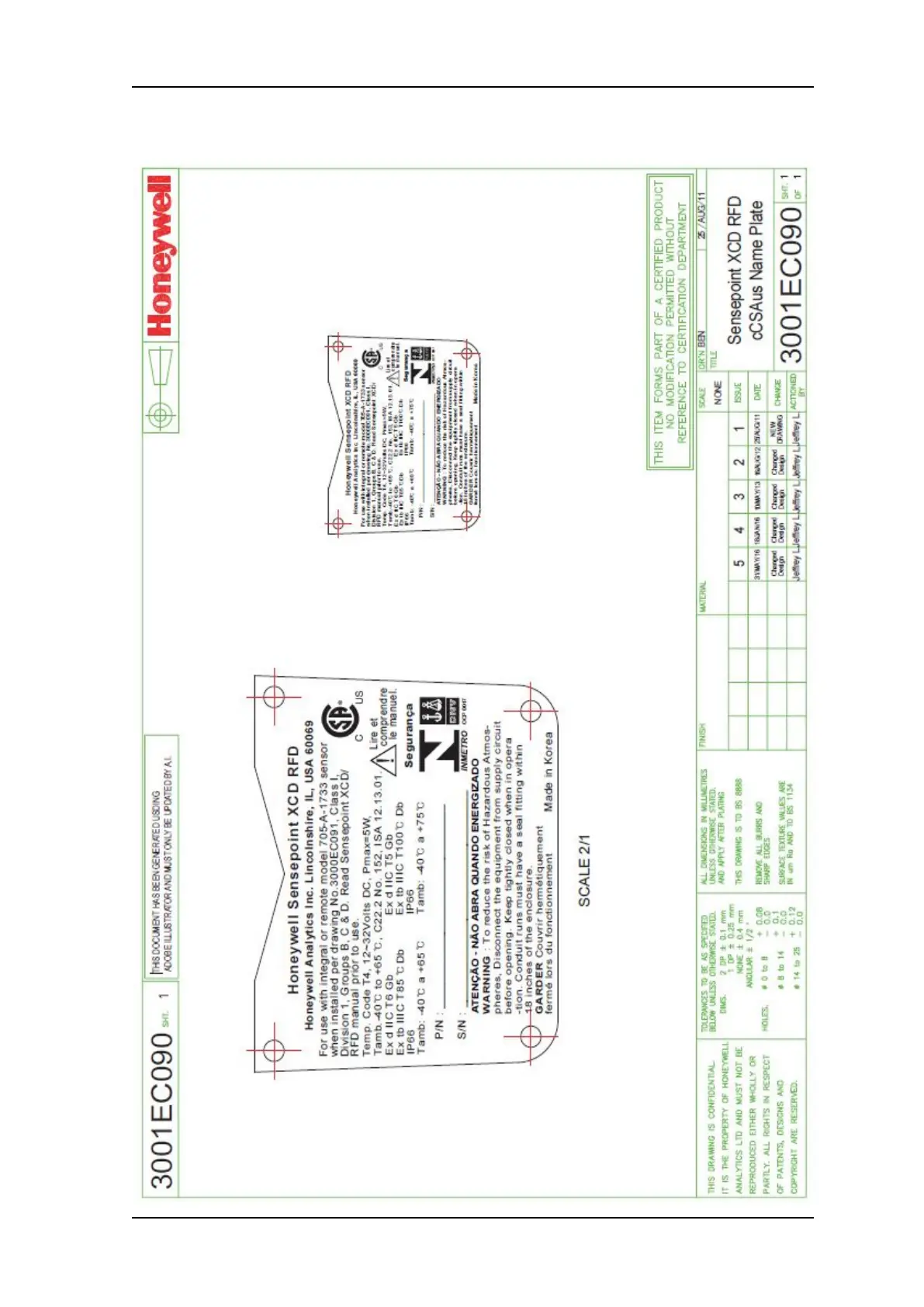

18.5 Sensepoint XCD RFD cCSAus Name Plate
Sensepoint XCD
ATEX Name Plate
NONE
JIS G4304: SUS 316 Minimum Thickness: 0.5mm
ADD Certi.
MED
NOTES 1. This is an ATEX schedule drawing and can only be changed after approval is given by the certifiying body 2. Product name format: Honeywell Sensepoint XCD XXX XXX Blank - Sensepoint XCD for use with Sensepoint XCD socket and sensor. RTD - Sensepoint XCD RTD for use with mA input sensors such as Sensepoint Toxic. RFD - Sensepoint XCD RFD for use with mV input sensors such as Sensepoint Flammable 3. Serial no. format S/N: SIIPPPYYWWNNN Sequence number Week of MFG Year of MFG Part Code Issue State SUPPLIER CODE 4. Etching Depth : 0.1 mm
THIS DOCUMENT HAS BEEN GENERATED USDING
ADOBE ILLUSTRATOR AND MUST ONLY BE UPDATED BY A.I.
3001EA041
3001EA041
BEN HUR 16 MAY 08
NONE
THIS DRAWING IS CONFIDEN- TIAL. IT IS THE PROPERTY OF HONEYWELL ANALYTICS LTD AND MUST NOT BE REPRO- DUCED EITHER WHOOLY OR PARTLY. ALL RIGHTS IN RESPECT OF PATENTS, DESIGNS AND COPYRIGHT ARE RESERVED.
APPROVED
BY
CHANGE
DATE
ISSUE
SCALEMATERIALFINISH
TITILE DRAWING
SHT.
OF
THIS ITEM FORMS PART OF A CERTIFIED PRODUCT
NO MODIFICATION PERMITTED WITHOUT
REFERENCE TO CERTIFICATION DEPARTMENT
SHT.
1
30/SEP/08
ADD Certi. IP66
J.Y.JIN
2
18/NOV/09
ADD
NOTES
J.Y.JIN
3
01/JUL/10
J.Y.JIN
ADD Certi. No.
4
12/DEC/11
Jeffrey L.
CHANGED Tamb.
5
24/APR/12
Jeffrey L.
6
03/MAY/12
Adjusted
Description
Jeffrey L.
7
03/SEP/12
Add Country
of Origin
Jeffrey L.
8
05/OCT/12
Add “Refer To Manual”
Jeffrey L.
9
05/SEP/13
Change Pmax to 5.5
Jeffrey L.
10
10/SEP/13
Change Cert. Mark
Jeffrey L.
13-KB2BO-0407
Honeywell Sensepoint XCD
Honeywell Analytics Inc. Lincolnshire, IL, USA 60069
WHEN ENERGISED OR WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
: DO NOT OPEN
7F SangAm IT Tower,
434 Worldcup Buk-ro, Mapo-gu,
Seoul 03922, Korea
Installation Drawing No.3001G0471. Temp. Code T4 32Volts Read Sensepoint XCD Manual prior to use and install as per DC MAX. Class 2, Pmax=5.5W
II 2 GD Ex d IIC Gb T6(Ta -40℃ to +65℃)
T5(Ta -40℃ to +75℃)
Ex tb IIIC Db T85(Ta -40℃ to +65℃)
IP66 T100℃(Ta -40℃ to +75℃)
0344
WARNING
S/N : P/N :
EN 45544 (Toxic)
EN 60079-29-1(Flammable)
EN 50104 (Oxygen)
Made in Korea
Refer To Manual
Baseefa08ATEX0222 IECEx BAS 08.0072
