13.3 Sensor / Gas Selection
13.3.1 Sensor Selection
“Select Sensor” sets the identity of the type of mV sensor attached to the XCD RFD when
it does not detect the sensor type automatically.
The available mV sensors:
Cb-2 Sensepoint HT 20%LEL remote
Cb-3 Sensepoint HT 100%LEL remote
Cb-4 Sensepoint 100%LEL remote
Cb-5* Flammable CAT 0-100%LEL remote
Cb-6
705 100%LEL remote (CSA Certied)
Cb-7
705 HT 100%LEL remote
Ir-5* Carbon Dioxide IR 0-2%VOL only remote
Ir-7 Methane IR 0-100%LEL remote
Ir-8* Propane IR 0-100%LEL remote
Selecting ‘

’ will move the operator to the Select Sensor screen. The rst screen displays
the currently congured sensor. To select a new mV sensor like remote type sensors (Ir-7,
Cb-3 and Cb-4), use‘

’ to move through the list, and then use ‘

’ to make the selection
or discard the selection and return to menu mode by using abort function. If type of sensor
is changed, calibration prompt will appear to ask if you want to perform calibration.

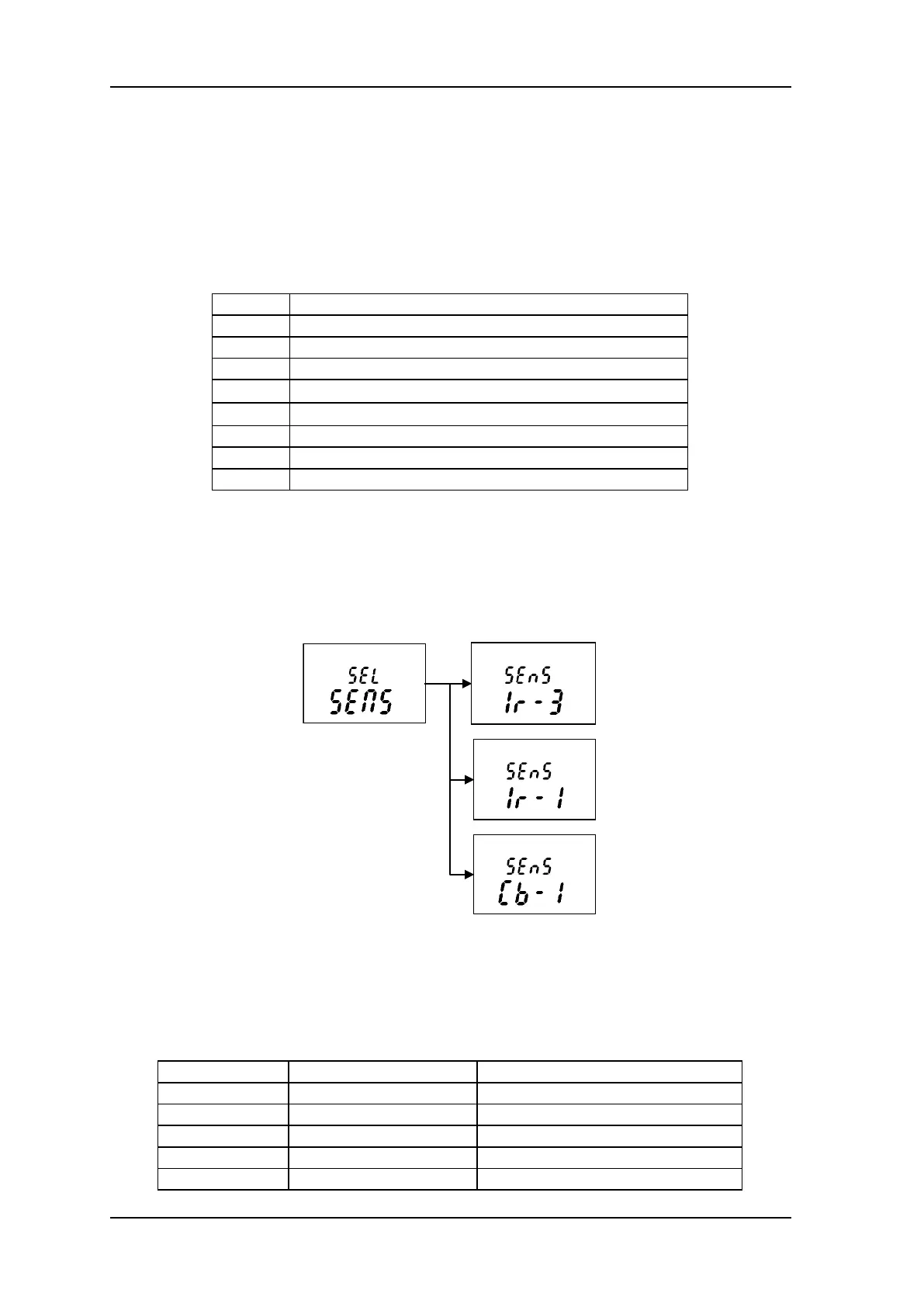

Diagram 15: Sensor Selection
13.3.2 Gas Selection
Use “SEL gAS” to set the target gas for sensors capable of detecting multiple gases.
The available gases:
Sensor type Gas type Gas Name displayed
Cb-3 Str 1 to Str 8 FLM
Cb-4 Str 1 to Str 8 FLM
Cb-5* Str 1 to Str 8 FLM
Cb-6 Str 1 to Str 8 FLM
Cb-7 Str 1 to Str 8 FLM
