November 2018 Quick Start Installation Guide 8

Approval Certifications: (Continued)

Notes:

1. Operating Parameters:

Voltage= 11 to 42 V DC

Current= 4-20 mA Normal

2. Intrinsically Safe Entity Parameters

a. Analog/ DE/ HART Entity Values:

Vmax= Ui = 30V

Imax= Ii= 105mA

Ci = 4.2nF

Li =984 uH

Pi =0.9W

Transmitter with Terminal Block Revision E or Later

Vmax = Ui =30V

Imax= Ii= 225mA

Ci = 4.2nF

Li = 0

Pi =0.9W

Note : Transmitter with Terminal Block Revision E or later

The revision is on the label that is on the module. There will be two

lines of text on the label:

 First is the Module Part #: 50049839-001 or 50049839-002

 Second line has the supplier information, along with the REVISION:

XXXXXXX-EXXXX, THE “X” is production related, THE POSITION of the “E” IS

THE REVISION.

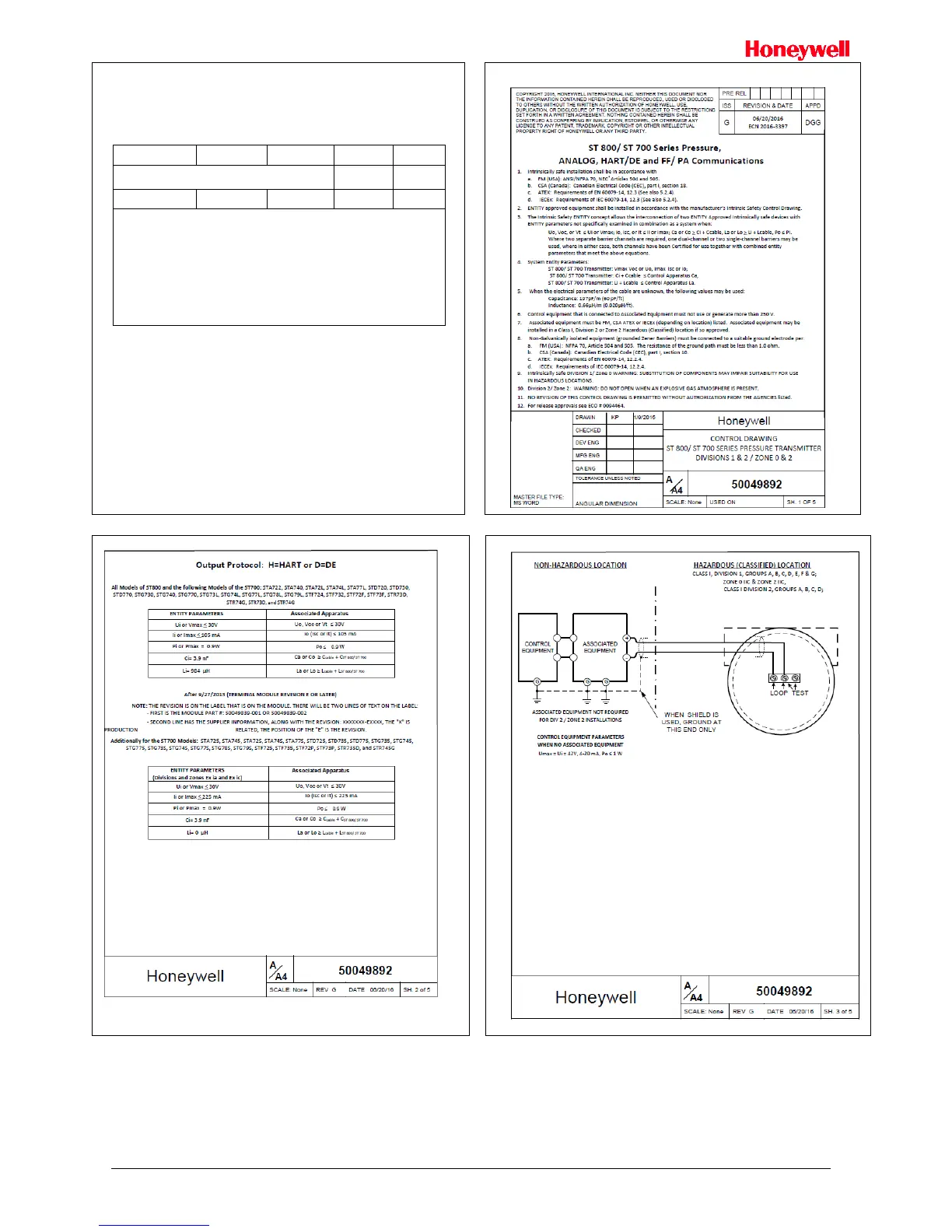

Control Drawing
