WIRING
Installing the Humidistat
Go to step 4
on the next page.
Humidier 33-00067EF—01
13
ALTERNATE LOCATION
RETURN
AIR
RETURN
AIR
6 IN (152 MM)
MINIMUM
15 IN (381 MM)
MINIMUM
BEST
LOCATION
RETURN AIR DUCT
Duct Mount Installation
TWO-FAN 18-22 GAUGE WIRE
SUPPLY

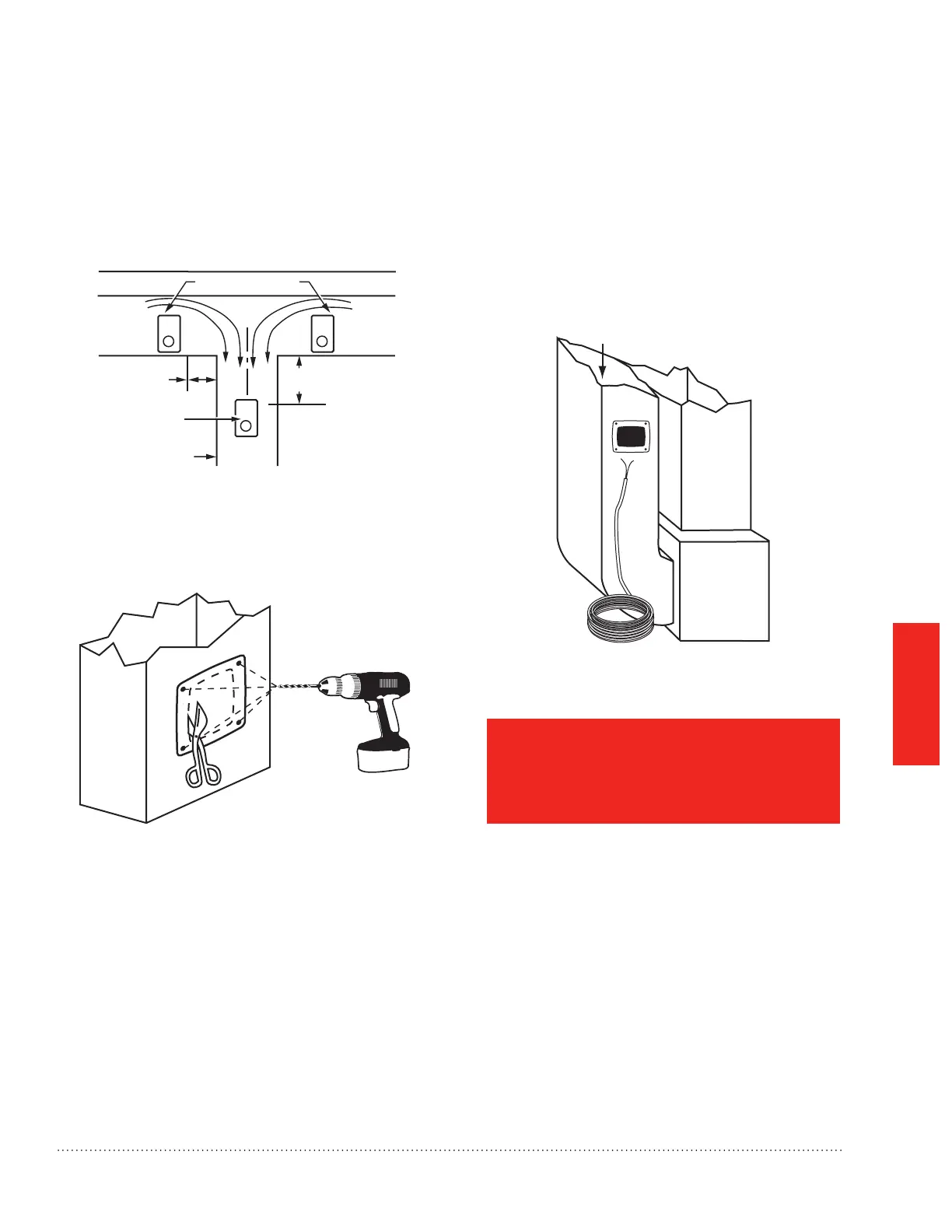

1. Choose a location on the RETURN duct.
2. Apply sticker template to duct and drill holes
for mounting screws. Cut along the dotted line
of the template with metal shears or tin snips.
3. Run two-fan, low-voltage wire to the mounting
location on the duct.
IMPORTANT
Use rated 18-22 gauge wire. Leave approximately 6 in.
of wire to properly connect the humidistat.
To Next Page
