Component Connections
Matrix Chassis
The VideoBloX chassis is shipped with a power cable without a plug. This is to
accommodate the various methods of power connectivity. Connect the wires on the
power cable to the appropriate power source.
This installation assumes the power requirements are 110 VAC. Using a standard PC
power cable, connect the matrix chassis to a 110 VAC supply.
Note Do not connect Keyboard, PIT and Alarms at this time.
Cameras and Dome
1. Make sure the Dome is at address #1 and is connected to Input #1 on the Video
Input Module.
2. Provide power to the static cameras and connect the coaxial cables to Inputs #2
and 3 on the Video Input Module.

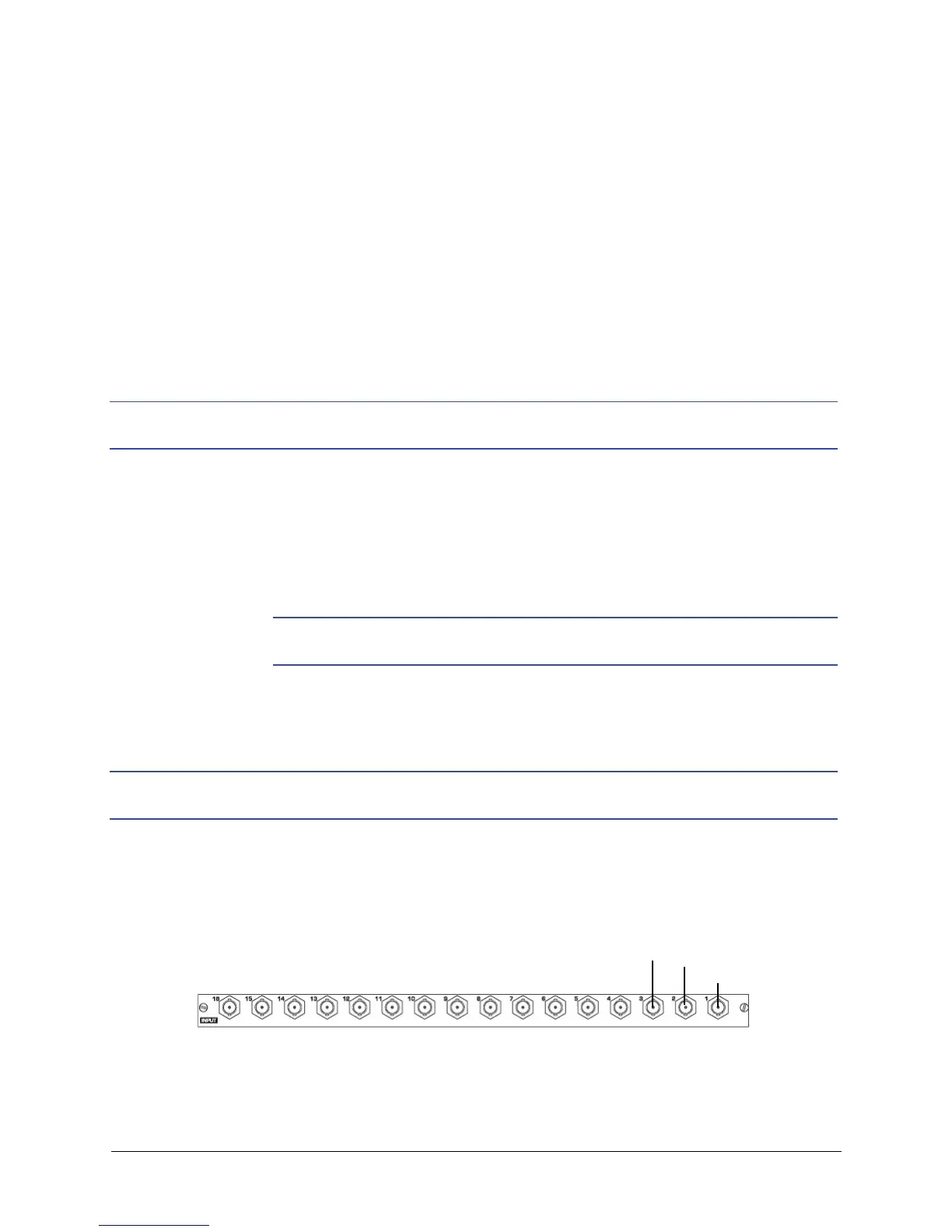

Figure 1 Connecting Cameras to the Video Input Module
Dome
Camera #2
Camera #3
To Next Page
