Honeywell VideoBloX Quick Start Guide

Rev 1.0 15 Document 900.0840
09/06
5
Configuration with the PC
Connect the PC to the VideoBloX CPU
Using the 9-pin Female to 9-Pin Female (pin to pin) connect the selected COM port of the
Configuration PC to the RS232 Slave port on the VideoBloX CPU. This is the furthest left
port when viewing the chassis from behind.

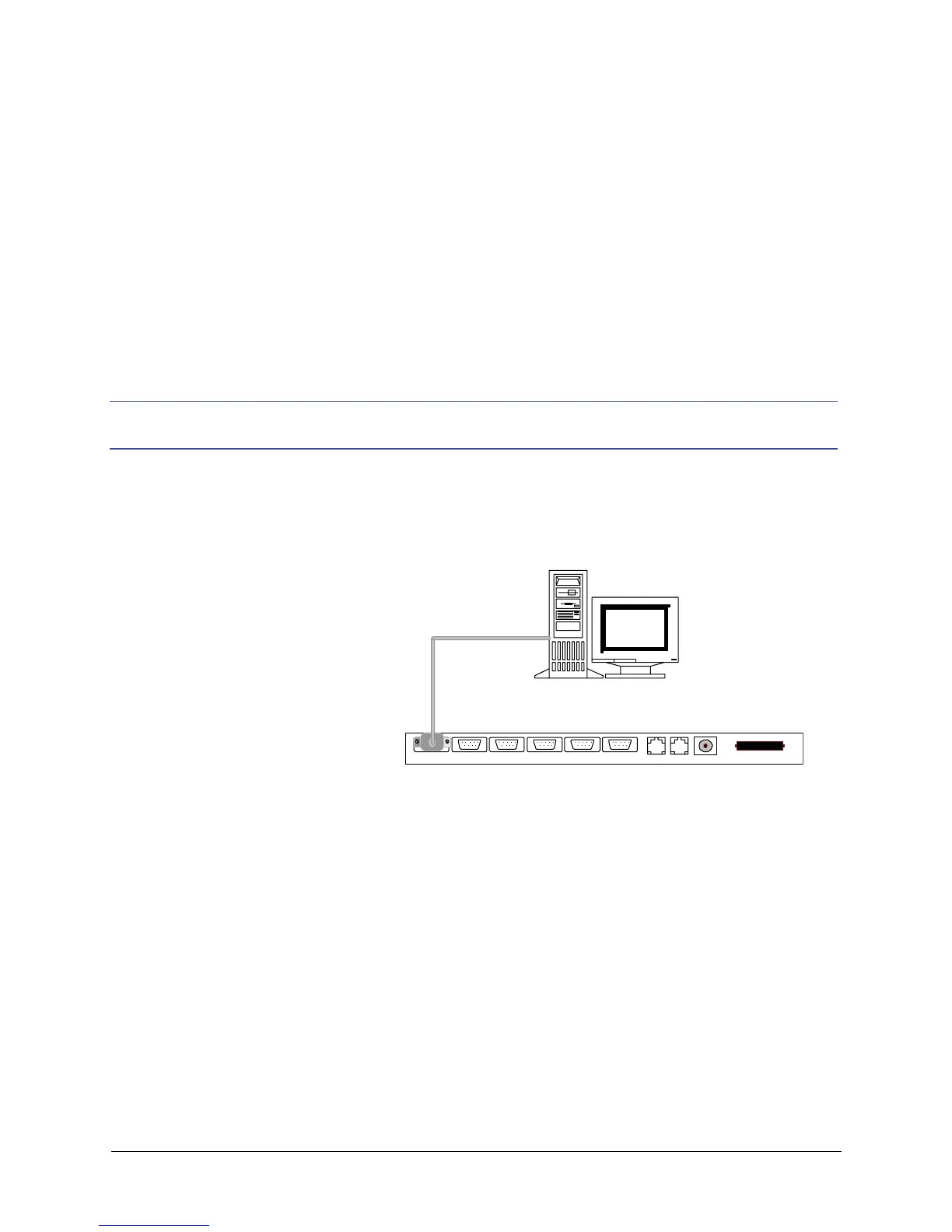

PC with Configuration Software
9-Pin
Male to Male
Cable
Com
Port
RS232
Slave
