Honeywell XENON 1902

12 - 14

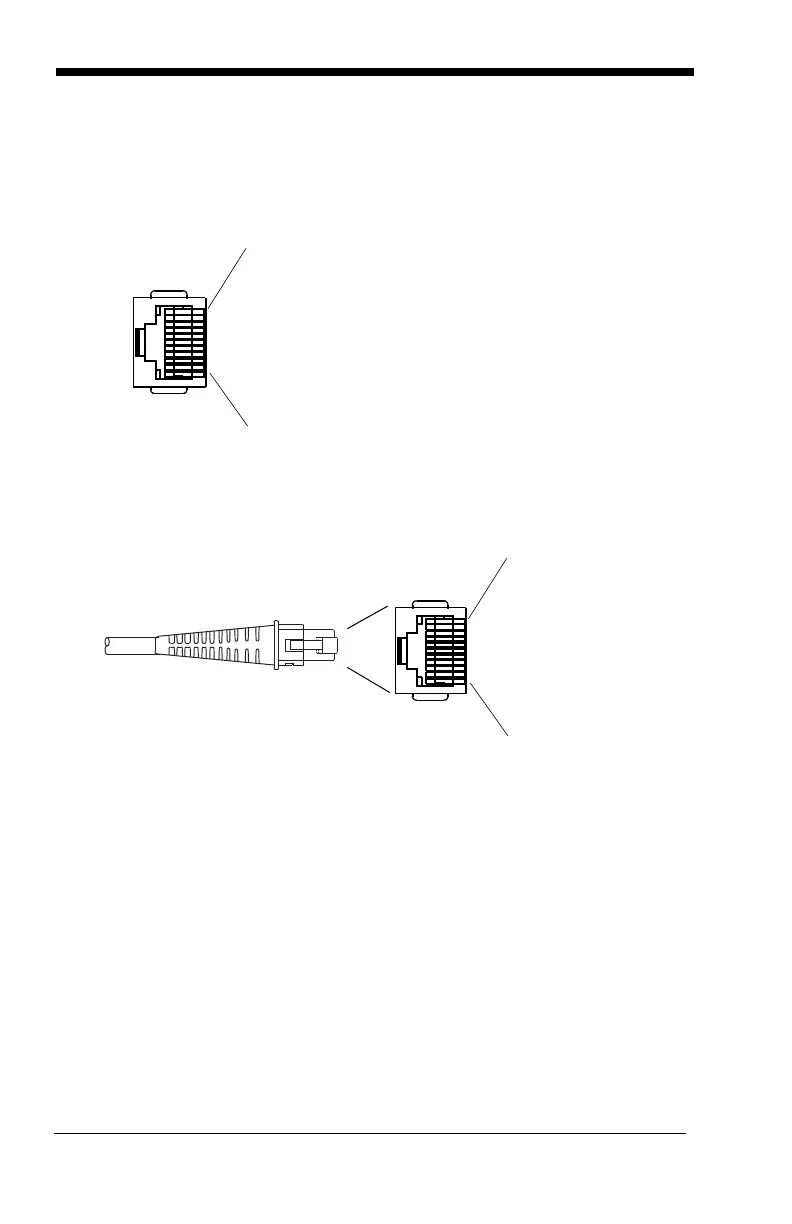

RS485 Output
10 Pin RJ41 Modular Plug - connects to the base
Note: RS485 signal conversion is performed in the cable.
USB
10 Pin Modular Plug - connects to the base
1 Cable shield
2 Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6
7 +5V power
8 Transmit Enable
9
10
1 Cable shield
2 Cable select
3 Supply
ground
4
5
6
7 +5V power
8
9 Data +
