The cables can also be routed up through the top of the base, crossing them
over and securing the cables in the wireways.

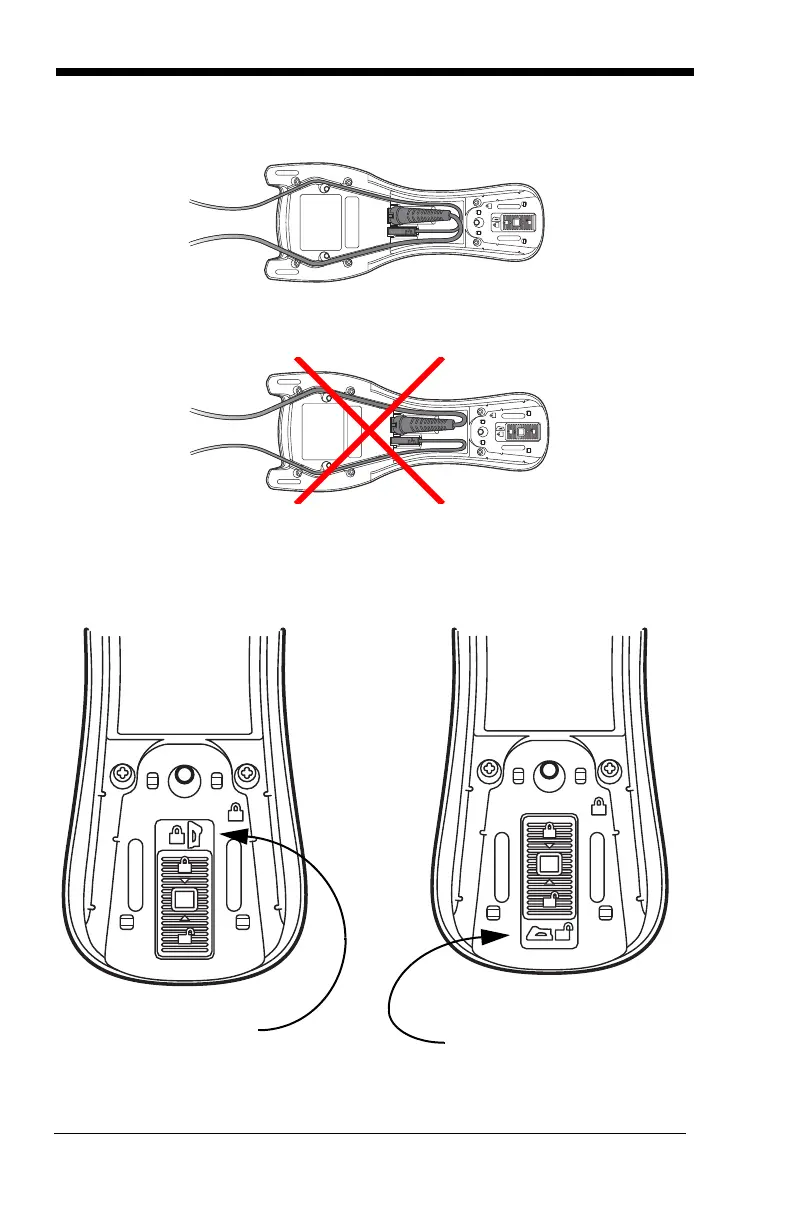

When routing the cables up through the top of the base, be sure to cross the
cables over before placing in the wireways. If not, too much strain is placed on
the cable connectors.
When mounted on a vertical surface, a locking system is used to secure the
scanner when it is in the stand. When mounted on a horizontal surface, the
locking mechanism should be set to unlocked (pushed up). When mounted on
a vertical surface, the locking mechanism should be set to locked (pushed
down).
Locked position
for vertical mount
Unlocked position
for horizontal mount
