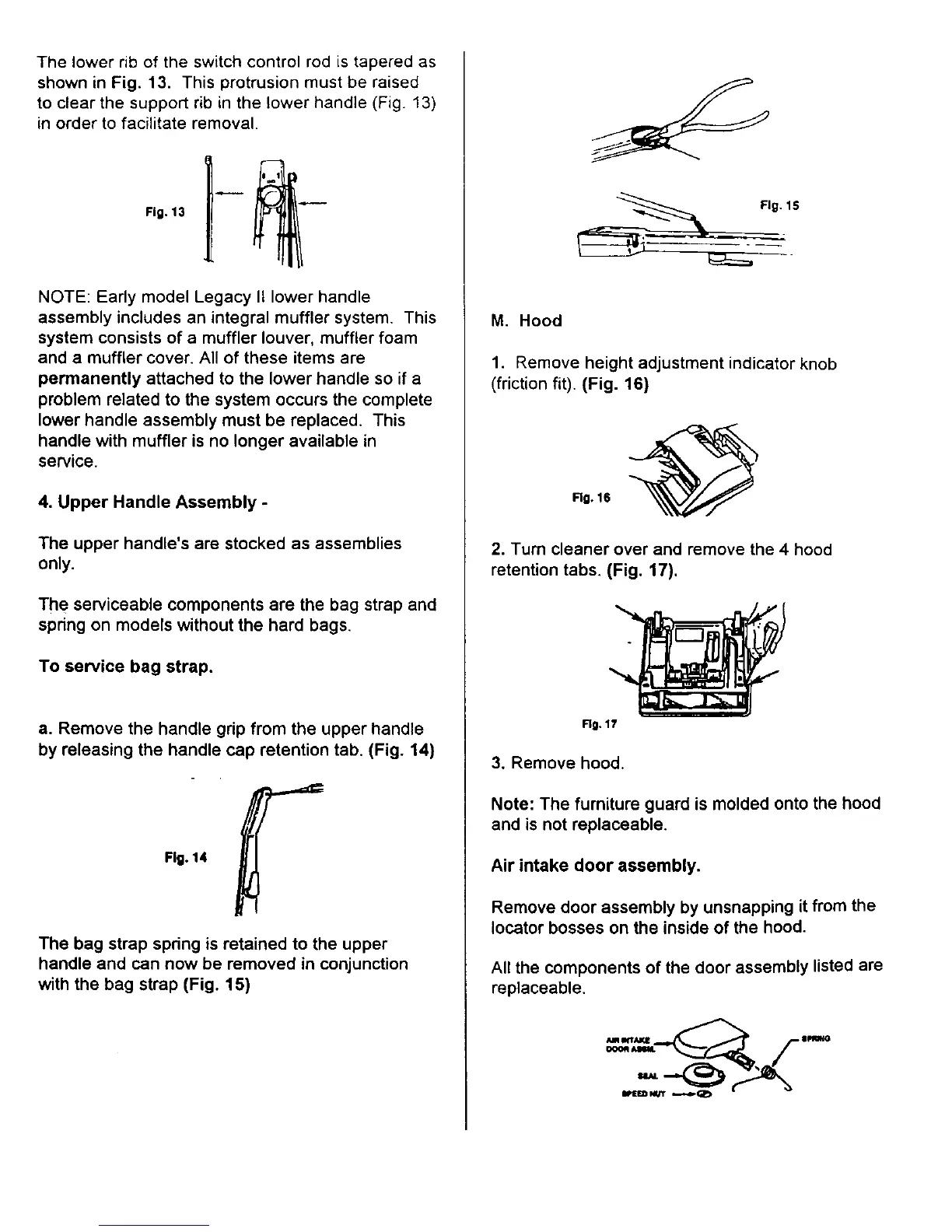

The lowerrib of the switchcontrol rodis taperedas
shownin Fig. 13. This protrusionmustbe raised
to clearthe supportribin the lower handle(Fig.13)
inorderto facilitateremoval.
NOTE:EarlymodelLegacyII lowerhandle
assemblyincludesanintegralmuffler system.This
systemconsistsof a mufflerlouver,mufflerfoam
anda mufflercover.All of theseitemsare
permanently attached to the lower handle so if a
problem related to the system occurs the complete
lower handle assembly must be replaced. This
handle with muffler is no longer available in
service.
4. Upper Handle Assembly -
The upper handle's are stocked as assemblies
only.
The serviceable components are the bag strap and
spring on models without the hard bags.
To service bag strap.
a. Remove the handle grip from the upper handle
by releasing the handle cap retention tab. (Fig. 14)
F.=
Fig. 14
The bag strap spdng is retained to the upper
handle and can now be removed in conjunction
with the bag strap (Fig. 15)
Fig. 15
J
M. Hood
1. Remove height adjustment indicator knob
(friction fit). (Fig. 16)
RO. 16
2. Turn cleaner over and remove the 4 hood
retention tabs. (Fig. 17).
Fig. 17
3. Remove hood.
Note: The furniture guard is molded onto the hood
and is not replaceable.
Air intake door assembly.
Remove door assembly by unsnapping it from the
Iocator bosses on the inside of the hood.
All the components of the door assembly listed are
replaceable.
