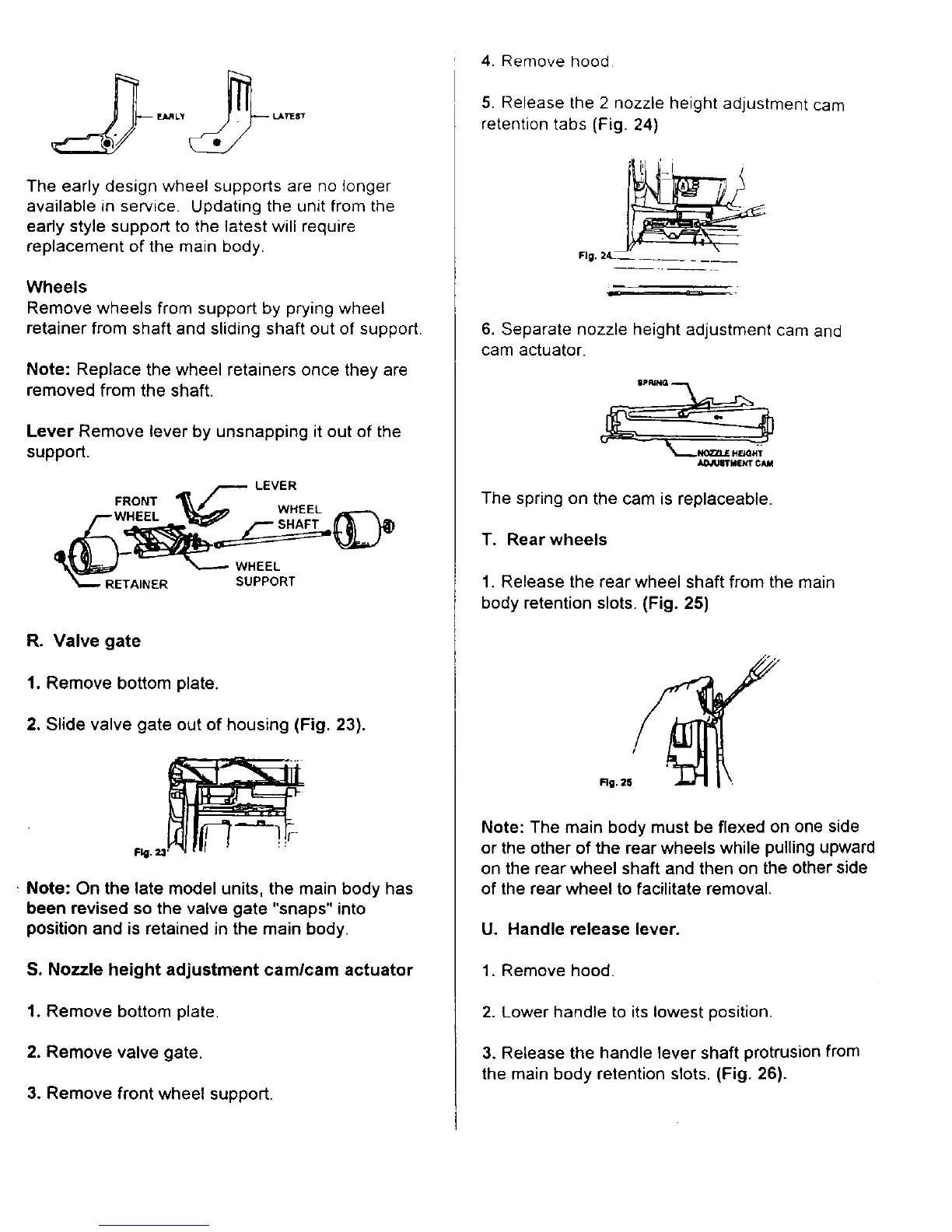

E'LRLY _ _T_ST
The early design wheel supports are no longer
available in service. Updating the unit from the
early style support to the latest will require
replacement of the main body.
Wheels
Remove wheels from support by prying wheel
retainer from shaft and sliding shaft out of support.
Note: Replace the wheel retainers once they are
removed from the shaft.
Lever Remove lever by unsnapping it out of the
support.
LEVER
FRONT
WHEEL
SHAFT
WHEEL
RETAINER SUPPORT
R. Valve gate
1. Remove bottom plate.
2. Slide valve gate out of housing (Fig. 23).
Fig._i _
, Note: On the late model units, the main body has
been revised so the valve gate "snaps" into
position and is retained in the main body.
S. Nozzle height adjustment camlcam actuator
1. Remove bottom plate.
2. Remove valve gate.
3. Remove front wheel support.
4. Remove hood
5. Release the 2 nozzle height adjustment cam
retention tabs (Fig. 24)
Fig. 2_
6. Separate nozzle height adjustment cam and
cam actuator.
The spring on the cam is replaceable.
T. Rear wheels
1. Release the rear wheel shaft from the main
body retention slots. {Fig. 25)
Rg, 25
Note: The main body must be flexed on one side
or the other of the rear wheels while pulling upward
on the rear wheel shaft and then on the other side
of the rear wheel to facilitate removal,
U. Handle release lever.
1, Remove hood.
2. Lower handle to its lowest position.
3. Release the handle lever shaft protrusion from
the main body retention slots. (Fig. 26).
