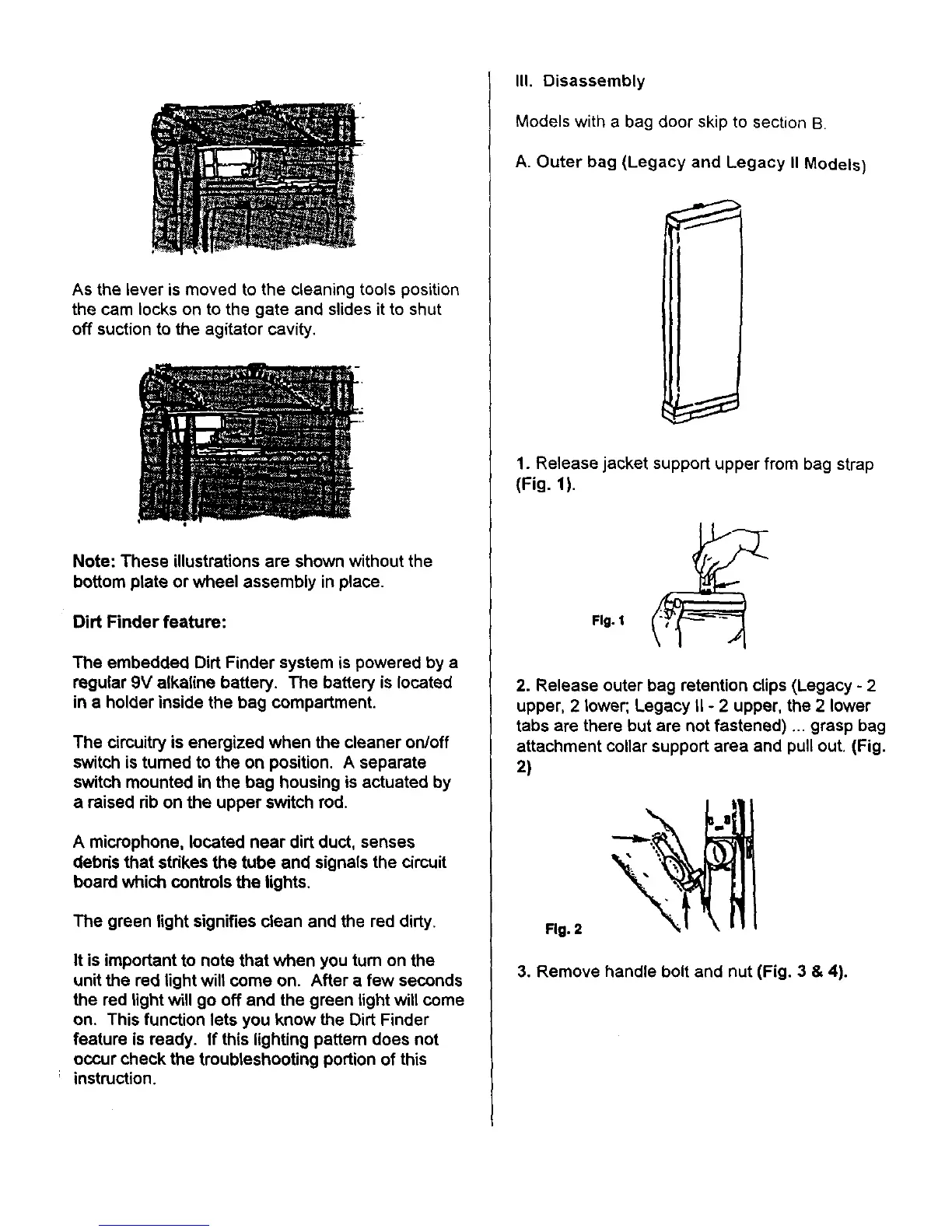

Asthe leveris movedto the cleaningtoolsposition
the camlockson tothe gate and slidesit to shut
off suctiontothe agitatorcavity.
Note: These illustrations are shown without the
bottom plate or wheel assembly in place.
Dirt Finder feature:
The embedded Dirt Finder system is powered by a
regular 9V alkaline battery. The battery is located
in a holder inside the bag compartment.
The circuitryis energized when the cleaner on/off
switch istumed to the on position. A separate
switch mounted in the bag housing is actuated by
a raised rib on the upper switch rod.
A microphone, located near dirt duct, senses
debris that strikes the tube and signals the circuit
board which controls the lights.
The green light signifies clean and the red dirty.
It is important to note that when you turn on the
unit the red light will come on. After a few seconds
the rod light will go off and the green light will come
on. This function lets you know the Dirt Finder
feature is ready. If this lighting pattern does not
occur check the troubleshooting portion of this
:instruction.
III. Disassembly
Models with a bag door skip to section B.
A. Outer bag (Legacy and Legacy II Models)
1. Release jacket support upper from bag strap
(Fig. 1).
Fig. I
2. Release outer bag retention clips (Legacy - 2
upper, 2 lower; Legacy II - 2 upper, the 2 lower
tabs are there but are not fastened) ... grasp bag
attachment collar support area and pull out. (Fig.
2)
Fig. 2
3. Remove handle bolt and nut (Fig. 3 & 4).
