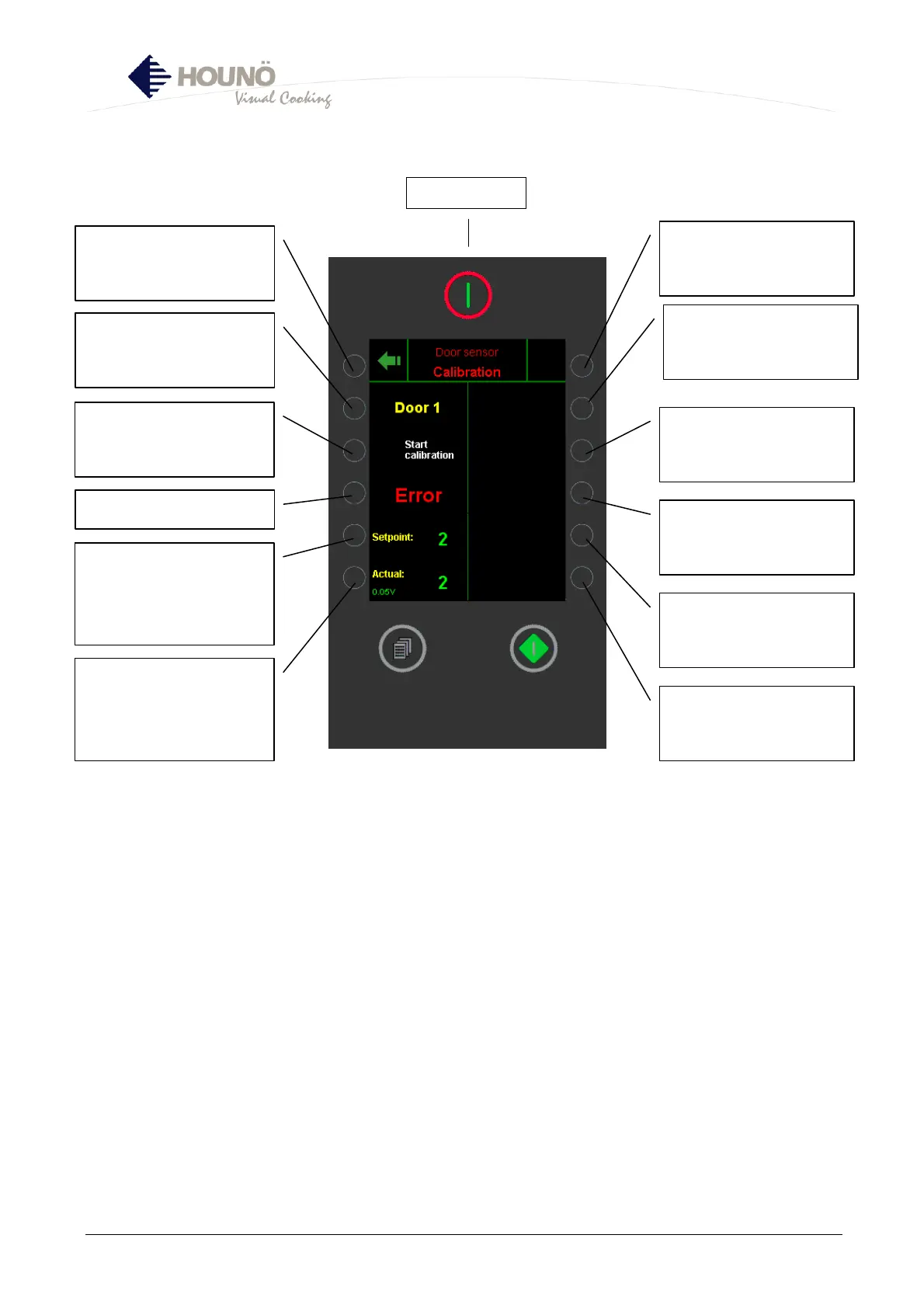

Door Sensor Calibration
• With this menu, you calibrate the door sensor. On the following page, the calibration
process is explained step by step.
• The measurement is an internal value for the distance between the magnet and the sensor.
• With the door open, the voltage is approx. 2.5 V.
• With the door closed, the voltage moves towards 5 or 0 V depending on the direction of the
magnet.
• When PassThrough is active, door 2 appears on the right side of the menu.
Return to SERVICE
MENU
Not active
Start calibration of door
sensor
Not active
INFO: During the calibra-
tion process, the controller
finds the set point automa-
tically on the basis of the
measurements taken with
door closed and door open.
INFO: The measurement
taken with door closed
should be between 10 and
100. The difference be-
tween door closed and door
open should be at least 10.
Not active
Not active
Not active
Not active
Not active
Not active
Main switch
