7. SERVICE INSTRUCTIONS
EARTH CABLES continued.
NOTE: Refer to Figure 18 - Figure 21, for correct orientation.
1. Conduct a PAT test on the stretcher.
2. Plug the power cord into the mains supply. Verify all stretcher
functions are working correctly before returning to service.

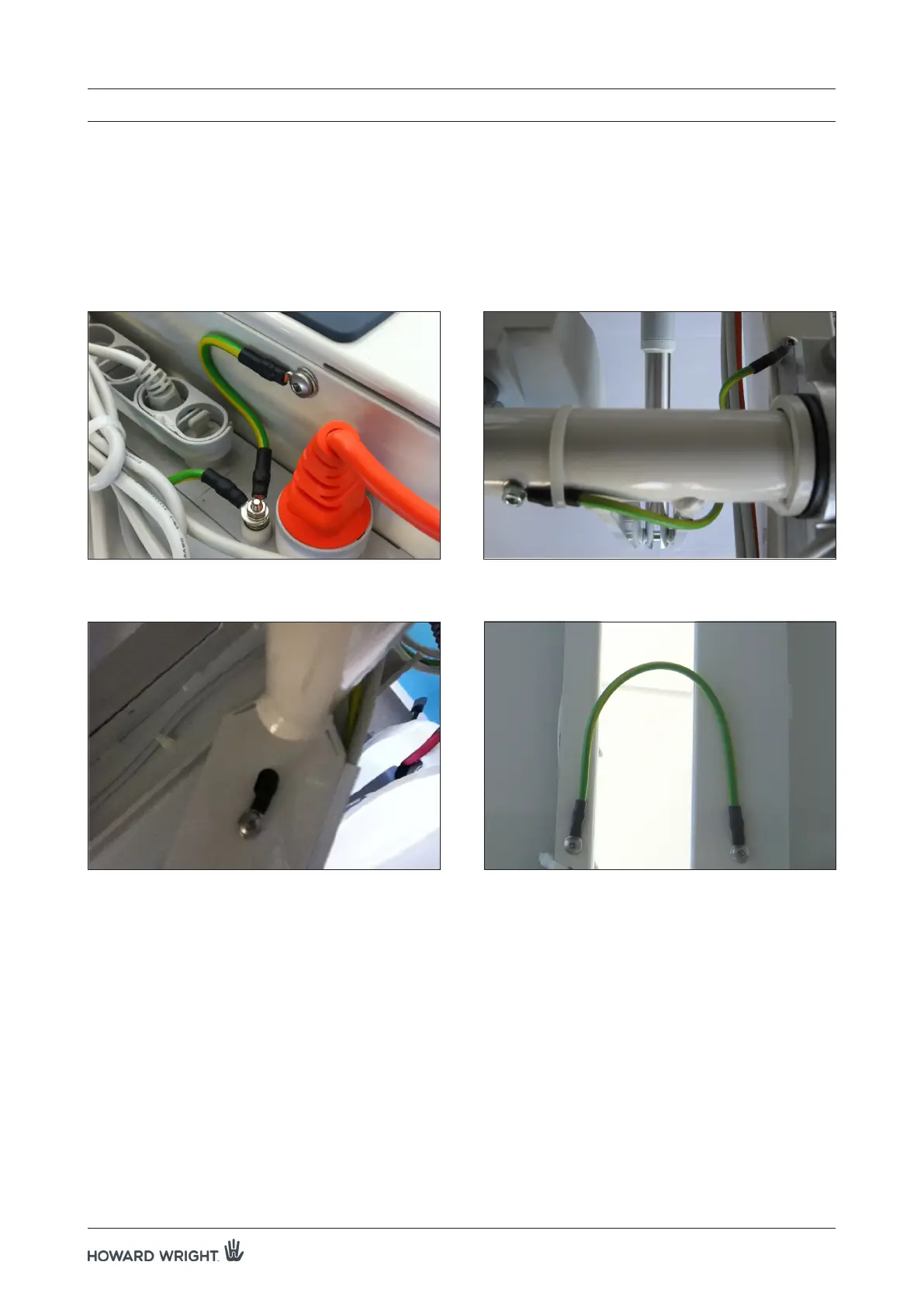

Figure 18. Control box to deck. Figure 19. Bogie to elevators. (on each elevator)
Figure 20. Elevator to Deck. Figure 21. Backrest to seat section (x1)
Seat section to knee break (x1)
Knee break to Lower leg raise (x1)
