13. BACKREST & SEAT SECTION
2
6
5
4
1
5
4
2 1
3
5
ITEM NO.
PART NO.
DESCRIPTION QTY.
1 M704-932 PIVOT HINGE FEMALE 4
2
M704-933 HINGE BUSH 4
3
M904-12 SEAT SECTION ASSY M9 TRANSFER 1
4
NBRM270 M6x12 SKT CAPSCREW ZP 8
5
NBRM4032 M8x12 BUTTON SKT SCREW SS304 4
6
WARM51 M6 INTERNAL LOCK WASHER 8
ITEM NO. PART NO. DESCRIPTION QTY.
1 M704-932 PIVOT HINGE FEMALE 4
2 M704-933 HINGE BUSH 4
3 M904-12 SEAT SECTION ASSY M9 TRANSFER 1
4 NBRM270 M6x12 SKT CAPSCREW ZP 8
5 NBRM4032 M8x12 BUTTON SKT SCREW SS304 4
6 WARM51 M6 INTERNAL LOCK WASHER 8

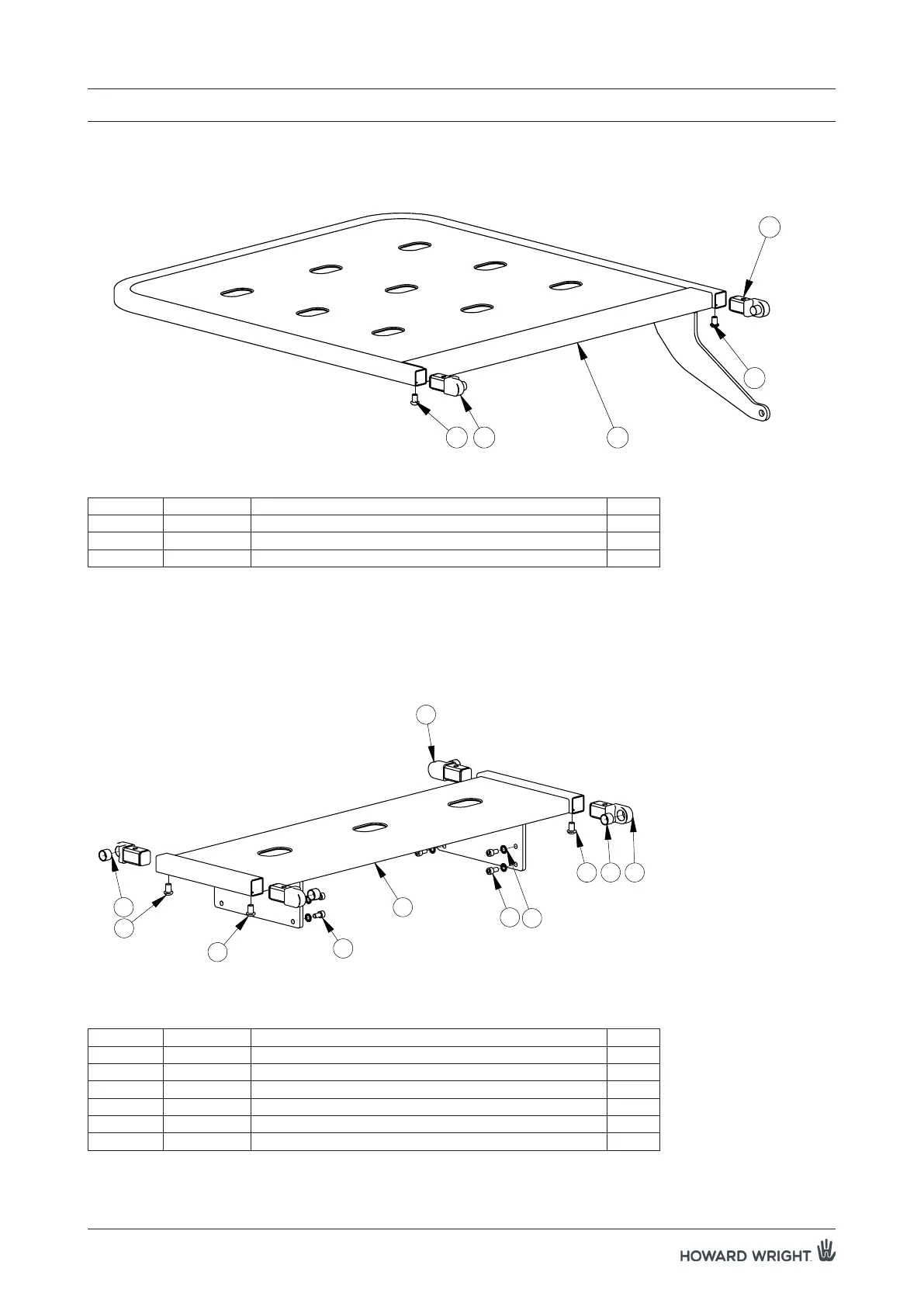

SEAT SECTION COMPLETE
13 2
1
3
ITEM NO.
PART NO.
DESCRIPTION
QTY.
1 M704-931 PIVOT HINGE MALE
2
2
M905-11 BACKREST ASSEMBLY M9 TRANSFER 3ED 1
3 NBRM4032 M8x12 BUTTON SKT SCREW SS304
2
BACKREST COMPLETE
ITEM NO. PART NO. DESCRIPTION QTY.
1 M704-931 PIVOT HINGE MALE 2
2 M905-11 BACKREST ASSEMBLY M9 TRANSFER 3ED 1
3 NBRM4032 M8x12 BUTTON SKT SCREW SS304 2
