Howard M9 - Electric Circuit

Technical Service Manual M9 Transfer Stretcher (M999-29, Version 11, June 2021) 39
4
3
2
1
B A

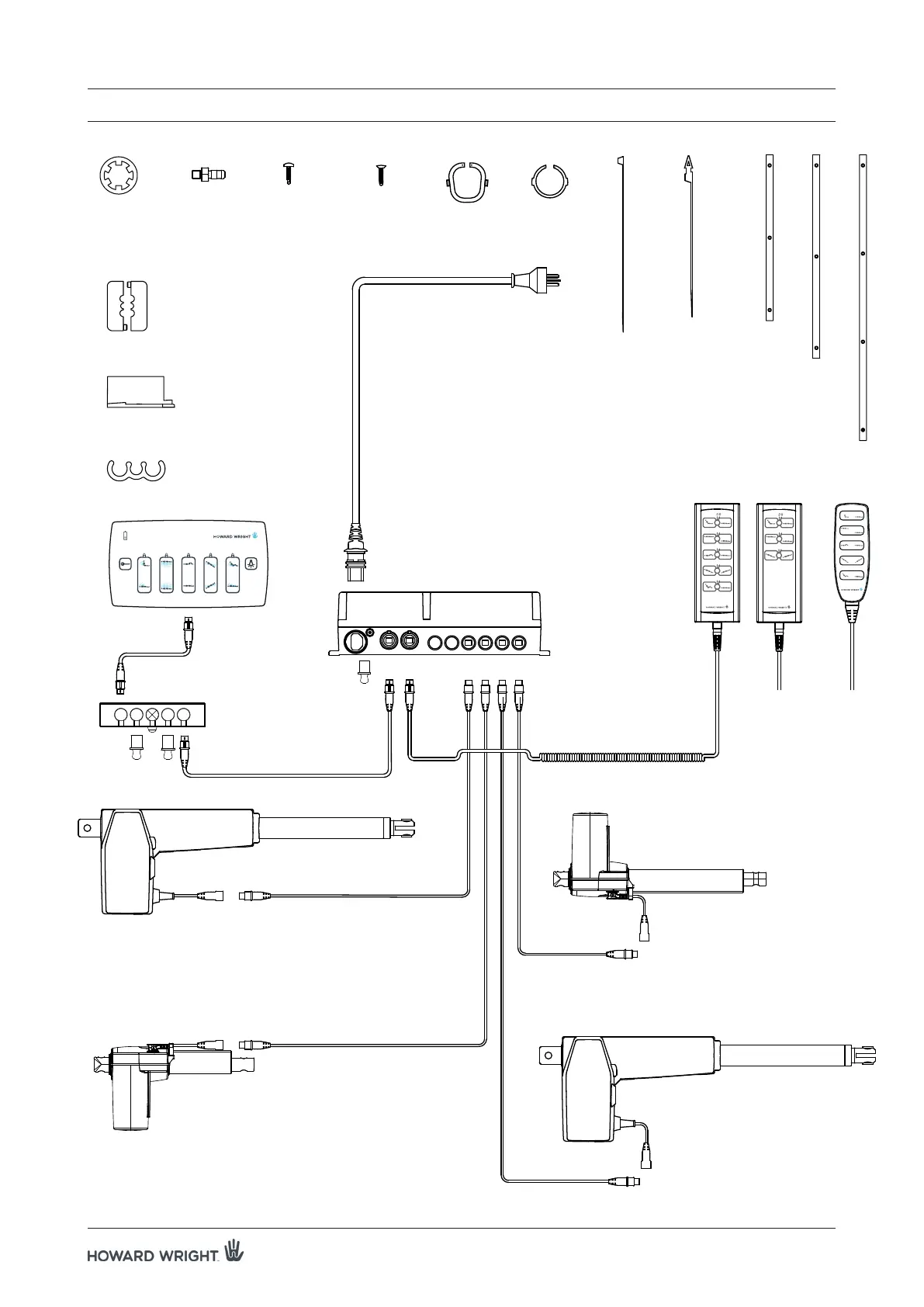

10. ELECTRIC CIRCUIT
NOTE: ITEMS IN ITALICS ARE OPTIONS
4
3
2
1
B A
CABLE TIE
FX R M914
POAG
TERMINAL
M710-10
SELF DRILL
TAP SCREW
NBRM3731
MINIFIT
LOCKING
RING
ELRM0817
M5 INTERNAL
LOCK
WASHER
WARM50
KNEE BREAK ACTUATOR
ELRM9643
BACKREST ACTUATOR
ELRM9622
HANDSET
4 FUNCTION
ELRM9701
CONTROL BOX
ELRM9512
1900mm
Mini fit cable
ELRM9909
1900mm
Mini fit cable
ELRM99091
1900mm
Mini fit cable ELRM99091
1900mm
Mini fit cable
ELRM9909
HI-LO ACTUATOR
ELRM9603
FOOT END
HI-LO ACTUATOR
ELRM9603
HEAD END
PORT PLUG
ELRM9954
TRILOBULAR
TORX SCREW
NBRM3737
CABLE
GROMMET 3+2
P L R M 14
PLUG LOCATOR
LA31
P LR M15
CABLE CLIP 3
CORE
P LR M 16
PUSHIN
CABLE TIE
F X R M 9 11
CONDUIT
M910-33
CONDUIT
M910-24
HANDSET
3 FUNCTION
ELRM9705
CONDUIT
M910-32
SCO
LOCKING
RING
ELRM9913
ACH HANDSET
ELRM9914
HANDSET
4 FUNCTION
ELRM9702
(backlit)
PORT PLUG
ELRM9954
CONTROL CABLE
ELRM9910
CONTROL CABLE
ELRM9912
MJB UBL
ELRM9808
MAINS CABLE STRAIGHT
(NZ/AUSTRALIA)
ELRM9407
RCD MAINS CABLE COILED
(NZ/AUSTRALIA)
ELRM9408
MAINS CABLE STRAIGHT
(EUROPE SCHUKO)
ELRM9414
MAINS CABLE COILED
(EUROPE SCHUKO)
ELRM9416
MAINS CABLE COILED
(UK)
ELRM9417
MAINS CABLE STRAIGHT
(UK)
ELRM9415
