14. LEG SECTION COMPLETE
1
3
2
ITEM NO.
PART NO.
DESCRIPTION
QTY.
1 M703-34 PUSH ON CAP (10 SHCS)
1
2 M704-37ZM DECK STOP
1
3 NBRM3731ZM #10-16x20 PAN SQ TEKS HARD SS
1
ITEM NO. PART NO. DESCRIPTION QTY.
1 M703-34 PUSH ON CAP (10 SHCS) 1
2 M704-37ZM DECK STOP 1
3 NBRM3731ZM #10-16x20 PAN SQ TEKS HARD SS 1
DECK STOP COMPLETE
21
3
ITEM NO.
PART NO.
DESCRIPTION QTY.
1 EC1040 CABLE BLOCK A 1
2
EC1040 CABLE BLOCK B 1
3
NBRM2731 M6x25 SKT CAPSCREW ZP 2
ITEM NO. PART NO. DESCRIPTION QTY.
1 EC1040 CABLE BLOCK A 1
2 EC1040 CABLE BLOCK B 1
3 NBRM2731 M6x25 SKT CAPSCREW ZP 2
CABLE BLOCK ASSEMBLY
7
2
5
5
1
1
1
3
7
6
4
ITEM NO.
PART NO.
DESCRIPTION
QTY.
1 M704-931 PIVOT HINGE MALE
6
2 M704-933 HINGE BUSH
2
3 M706-75 LEGRAISE SLIDE BLOCK STRETCHER
2
4 M906-07 LEGRAISE ASSY M9 TRANSFER
1
5
M906-12 KNEE BREAK ASSY M9 TRANSFER 3ED 1
6 NBRM3731 #10-16x20 PAN SQ TEKS HARD SS
4
7 NBRM4032 M8x12 BUTTON SKT SCREW SS304
6

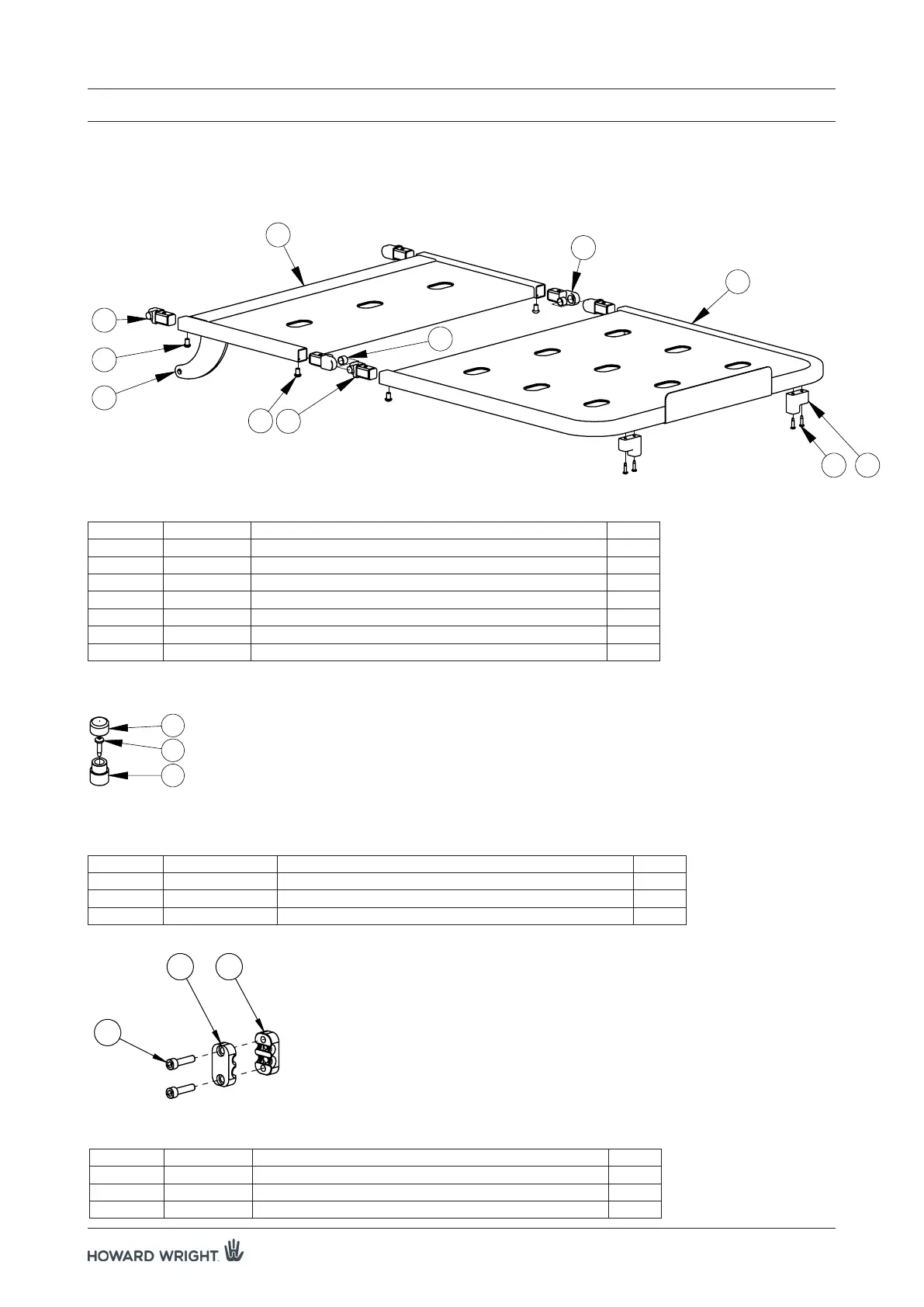

LEG SECTION ASSEMBLY COMPLETE
ITEM NO. PART NO. DESCRIPTION QTY.
1 M704-931 PIVOT HINGE MALE 6
2 M704-933 HINGE BUSH 2
3 M706-75 LEGRAISE SLIDE BLOCK STRETCHER 2
4 M906-07 LEGRAISE ASSY M9 TRANSFER 1
5 M906-12 KNEE BREAK ASSY M9 TRANSFER 3ED 1
6 NBRM3731 #10-16x20 PAN SQ TEKS HARD SS 4
7 NBRM4032 M8x12 BUTTON SKT SCREW SS304 6
