46 Technical Service Manual M9 Transfer Stretcher (M999-29, Version 11, June 2021)

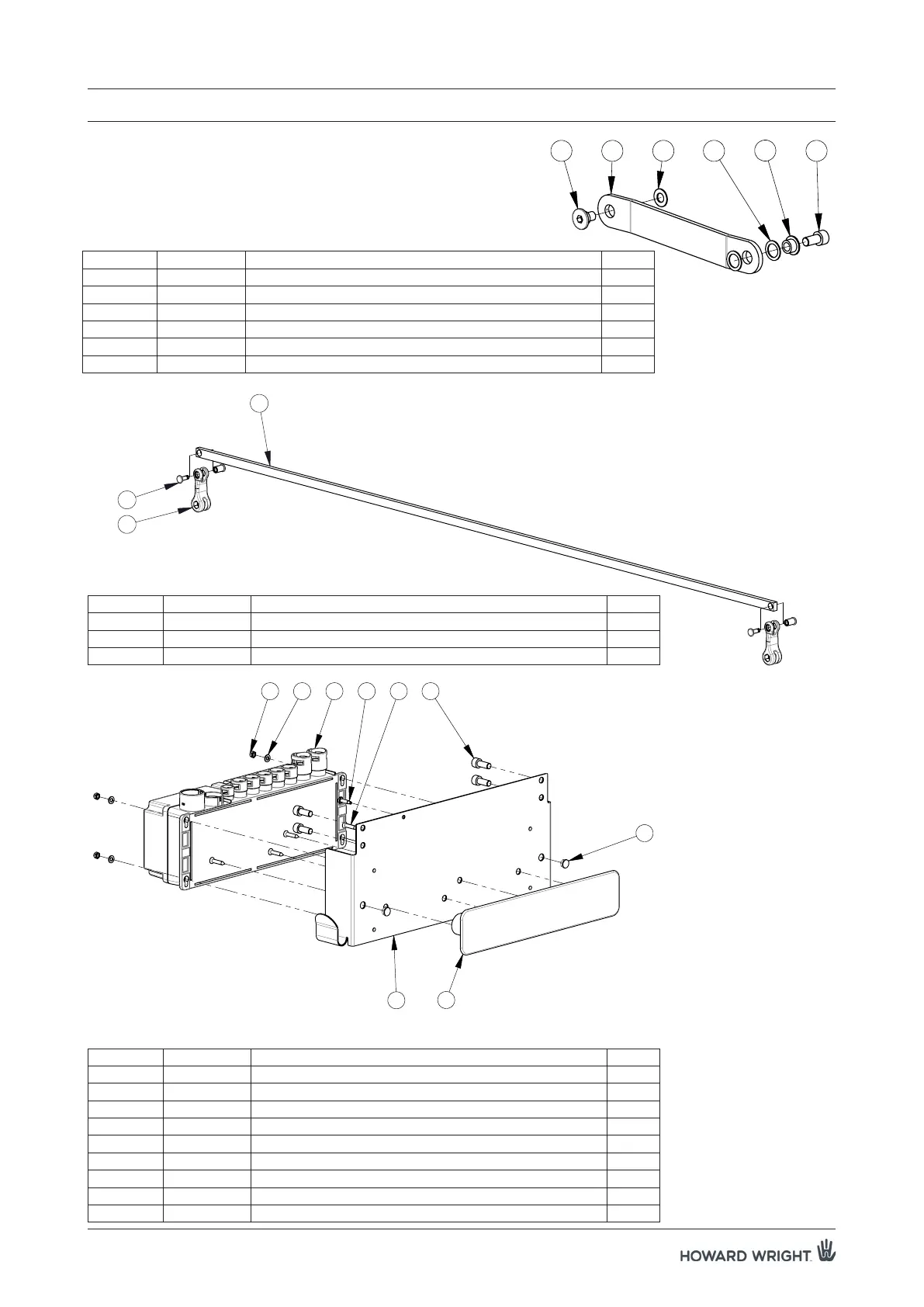

15. MISCELLANEOUS
4 2 5 6
1
3
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 M703-21 15x10x8.5 FLANGED PIVOT BUSH 1
2
M703-44 ELEVATOR LINK LOW HEIGHT 1
3
NBRM2849 M10x20 SKT CAPSCREW ZP 1
4
NBRM900 FLANGED PIVOT BOLT D24 x d15 M10 1
5
WARM301 D21M10x1.6mm FLAT WASHER SS304 1
6
WARM864 D23d16x1.0mm WASHER NYLON 6 2
2
1
3
ITEM NO.
PART NO.
DESCRIPTION
QTY.
1 M702-32 BRAKE TRANSMISSION LEVER
2
2 M902-11 BRAKE SHAFT FLAT M9 STRETCHER
1
3 WD40-861 SHORT PIVOT PIN SET
2
DESCRIPTION : TRANSMISSION ROD ASSEMBLY LOW HEIGHT
ITEM NO. PART NO. DESCRIPTION QTY.
1 M702-32 BRAKE TRANSMISSION LEVER 2
2 M902-11 BRAKE SHAFT FLAT M9 STRETCHER 1
3 WD40-861 SHORT PIVOT PIN SET 2
TRANSMISSION ROD ASSEMBLY LOW HEIGHT
ITEM NO. PART NO. DESCRIPTION QTY.
1 M703-21 15x10x8.5 FLANGED PIVOT BUSH 1
2 M703-44 ELEVATOR LINK LOW HEIGHT 1
3 NBRM2849 M10x20 SKT CAPSCREW ZP 1
4 NBRM900 FLANGED PIVOT BOLT D24 x d15 M10 1
5 WARM301 D21M10x1.6mm FLAT WASHER SS304 1
6 WARM864 D23d16x1.0mm WASHER NYLON 6 2
STABILISER LINK ASSEMBLY
8 51 6 7
4
2
3
9
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 ELRM9510 CB16 CONTROL BOX 1
2
M728-22 CORD HOLDER 1
3
M904-69 CONTROL BOX MOUNT PLATE M9 TRANSFER 1
4 M904-78 D12d10 COVER CAP GREY WHITE 2
5 NBRM280 M8x20 SKT CAPSCREW ZP 4
6
NBRM3731 #10-16x20 PAN SQ TEKS HARD SS 1
7
NBRM3736 #10 x 1" PAN SQ CSK SS 4
8
NBRM481 M5 NYLOC NUT ZP 4
9
WARM221 D10M5x1.0 FLAT WASHER ZP 4
ITEM NO. PART NO. DESCRIPTION QTY.
1 ELRM9510 CB16 CONTROL BOX 1
2 M728-22 CORD HOLDER 1
3 M904-69 CONTROL BOX MOUNT PLATE M9 TRANSFER 1
4 M904-78 D12d10 COVER CAP GREY WHITE 2
5 NBRM280 M8x20 SKT CAPSCREW ZP 4
6 NBRM3731 #10-16x20 PAN SQ TEKS HARD SS 1
7 NBRM3736 #10 x 1" PAN SQ CSK SS 4
8 NBRM481 M5 NYLOC NUT ZP 4
9 WARM221 D10M5x1.0 FLAT WASHER ZP 4
POWER CORD HOLDER & CONTROL BOX ASSEMBLY
