WaterDistributionPan
TheWaterDistributionPancirculatesthewater
fedfromtheWaterPumpdownthewallsofthe
Evaporator.
Therearetwosmallplastictabsonthebottom
oftheWaterDistributionPan.Thesetabs
shouldstraddlethewingoftheIceBladeto
preventit
fromrotating.
ThetubeexitingtheWaterDistributionPan
fromthebottomistheLeadSpout.Itmust
alwaysbeflowingwithwaterduringnormal
operationandpointingperpendiculartothe
evaporatorsurface.
DonotplugorcapthebottomLeadSpout.


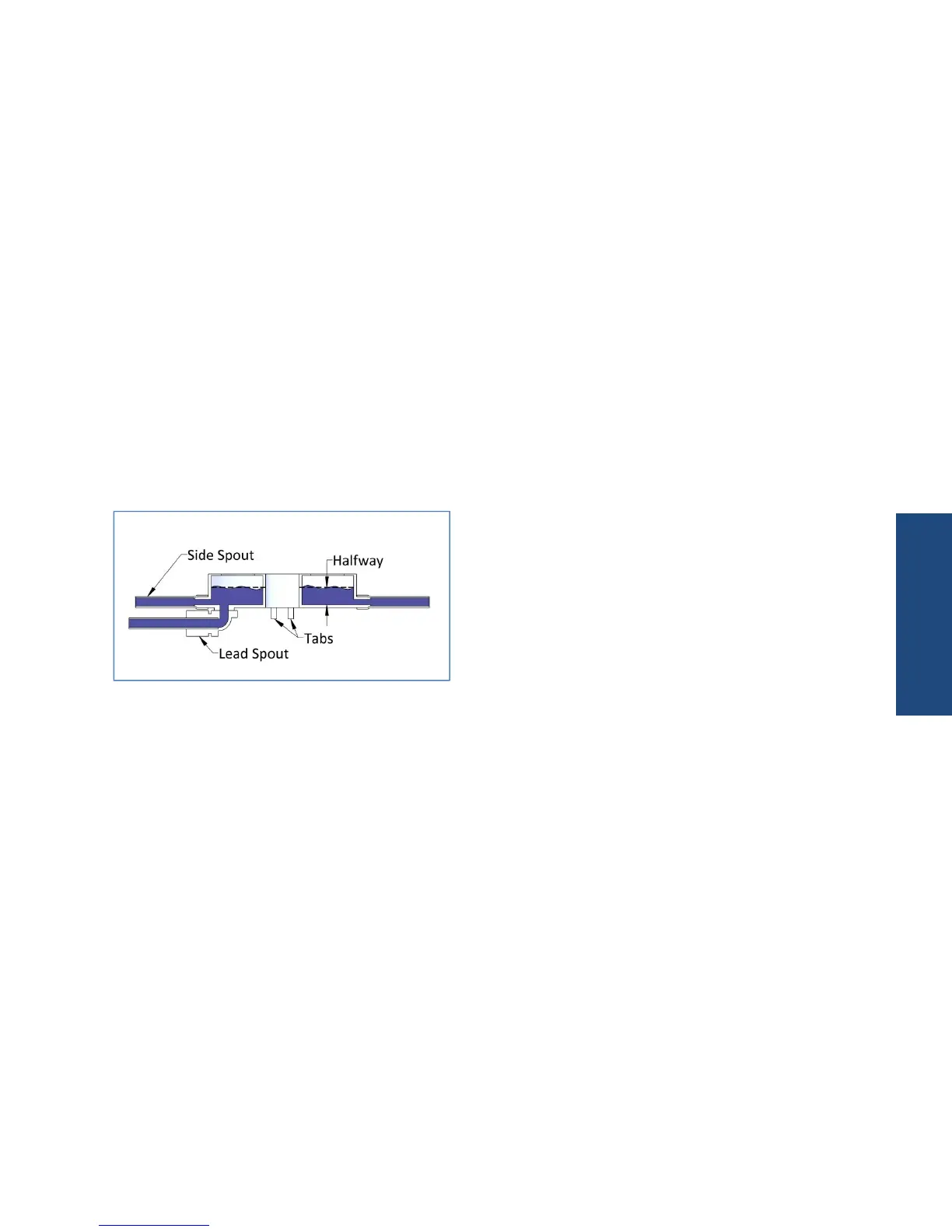

SectionViewofWaterDistributionPan

WaterlevelintheWaterDistributionPan
shouldbeabouthalfwayfull.TheSideSpouts
shouldneverbestarvedofwater.
WaterRegulatingValve
AdjustthewaterlevelintheWaterDistribution
PanbyopeningorclosingtheWaterRegulating
ValvelocateddirectlyabovetheWaterSump.
Onlyadjustthe
WaterRegulatingValveafter
theIceFlakerhasbeenproducingiceforat
least10minutes.
CondensateDrain&SumpDrainOutlets
Anywaterormoisturethathasformedonthe
IceFlakerorinsidetheenclosurewillflowout
throughtheCondensateDrainOutlet.
Waterexitingtheenclosureduringcleaning
or
emptyingoftheWaterSumpwilldosothrough
theSumpDrainOutlet.
Bothofthesedrainsoutletsmustconnecttoa
floordrain.Makesuretheyareclearfrom
restrictionsandflowsfreely.





