StartUp&Operation
21

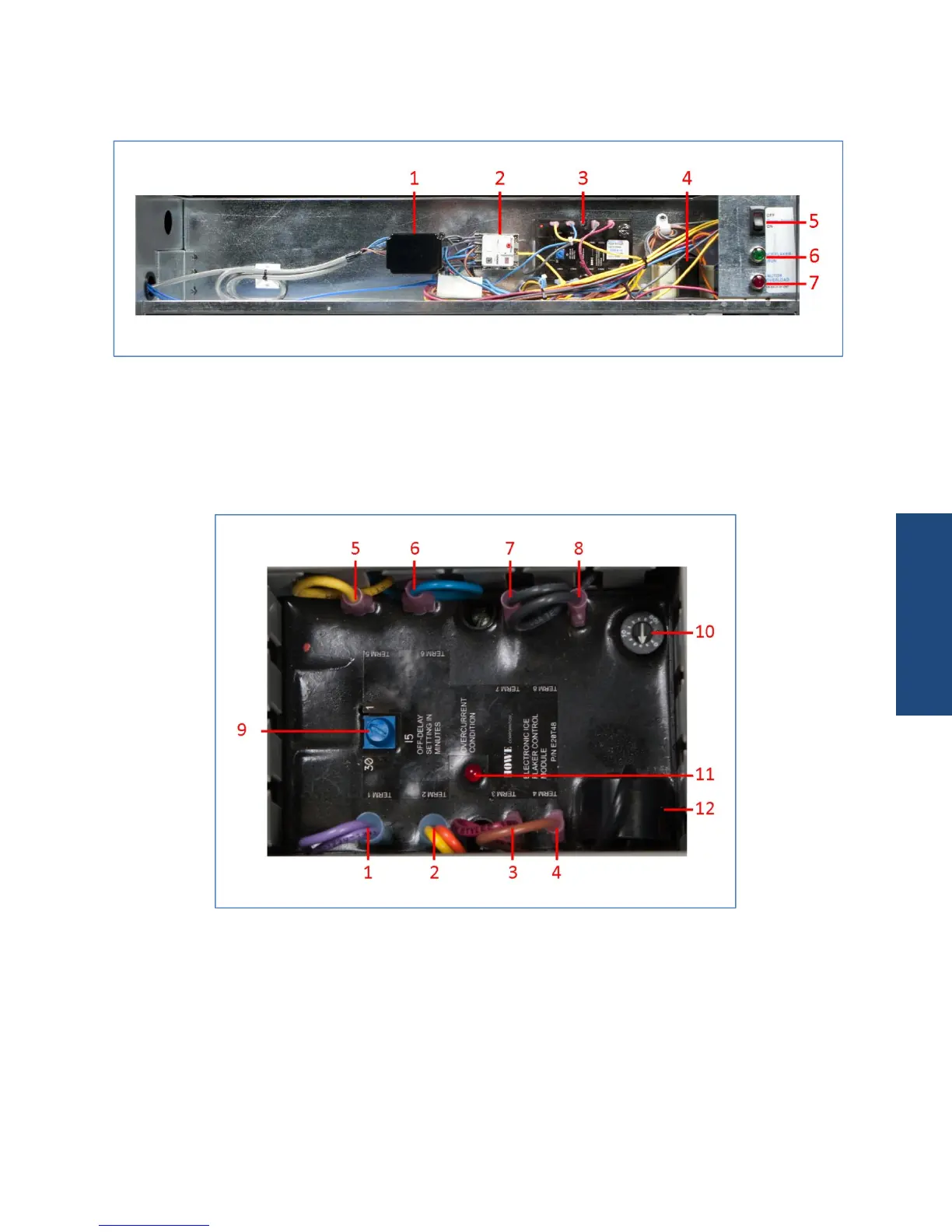

ElectricalOperation
1. LevelControlRelay(LC1)
2. MotorRelay(R1)
3. ControlModule(CM)
4. Transformer(T1)
5. PowerSwitch
6. IceFlakerRunIndicatorLight
7. MotorOverloadIndicatorLight
1. Term1:24VInputPower
2. Term2:24VInputPower
3. Term3:ControlSignal
4. Term
4:MotorOverloadReset
5. Term5:MotorOverloadSwitchLeg
6. Term6:IceFlakerRunSwitchLeg
7. Term7:SolenoidValveContact
8. Term8:SolenoidValveContact
9. Off‐DelaySetting
10. MotorOverloadSetting
11. OvercurrentConditionIndicatorLight
12. OverloadSensingCoil
