3. Disconnect the fan cable from the system board connector.

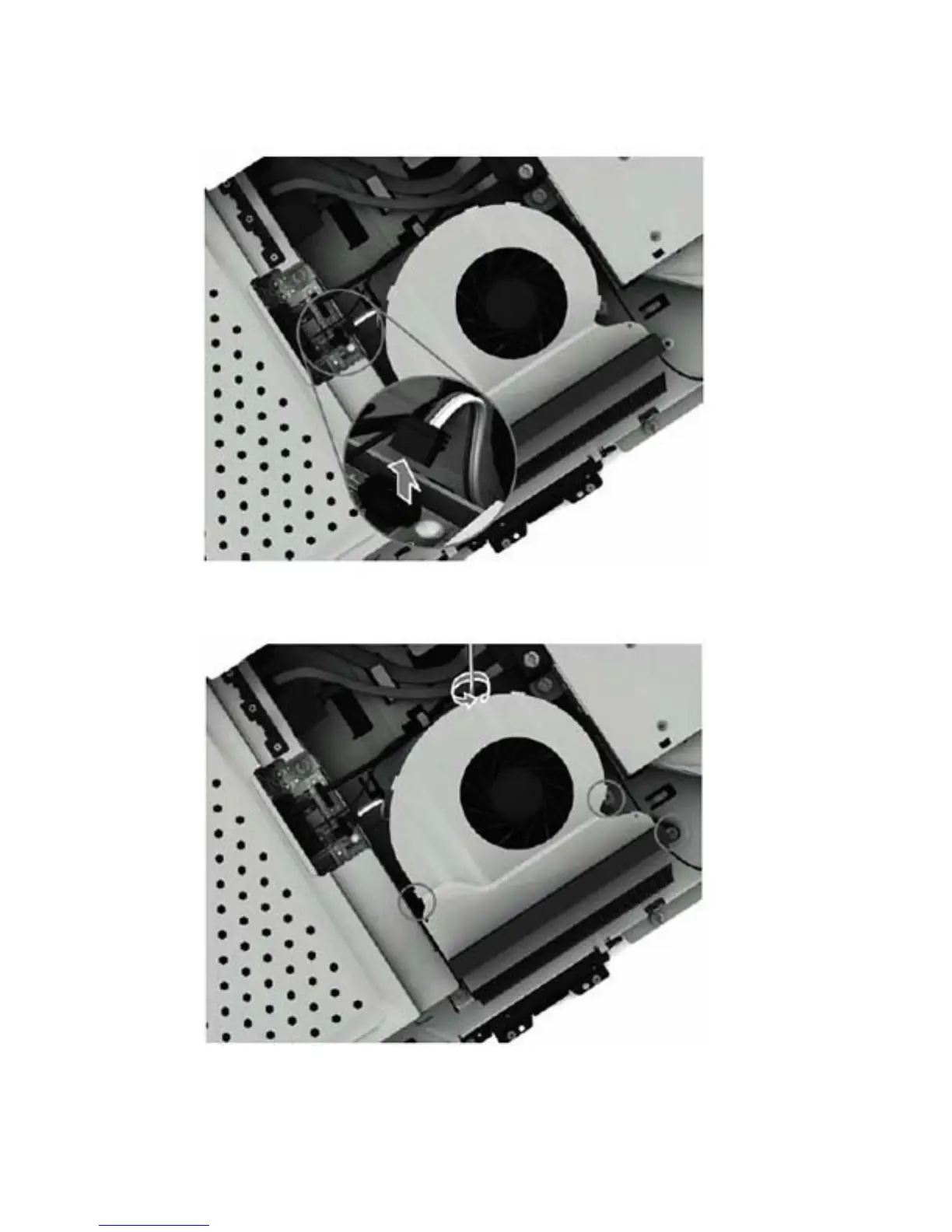

Figure 6-23 Disconnecting the fan cable
4. Remove the four Phillips PM25x60 screws that secure the fan to the computer.
Figure 6-24 Removing the fan screws
Fan 43
