Optical Drive Bracket
Description Spare part number
Optical drive bracket 646805-001
The optical drive bracket is located under the optical drive. You must remove the optical drive to
access the bracket, which is secured by five screws.
To remove the optical drive bracket:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 26).
2. Remove the rear cover (see
Rear Cover on page 27).
3. Remove the optical drive (see
Optical Drive on page 33).
4. Remove the five Torx T15M3.0x6.0 screws (1) that secure the optical drive bracket to the
computer.
5. Lift the bracket from the computer (2).

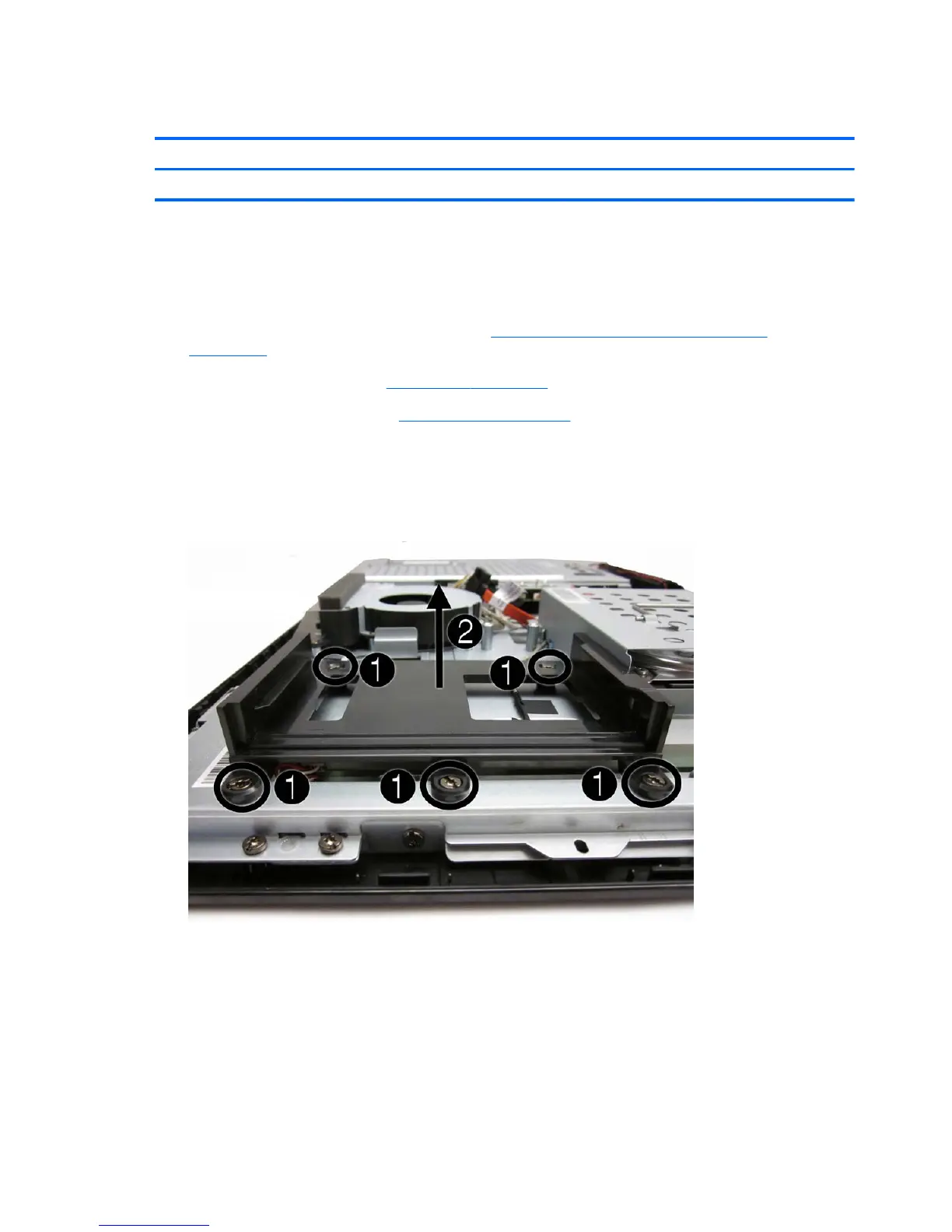

Figure 6-40 Removing the optical drive bracket
To install the optical drive bracket, reverse the removal procedures.
