Hard Drive Cable
Description Spare part number
Hard drive cable 646789-001
The hard drive cable is secured to the computer with two screws and connects the hard drive to the
system board.

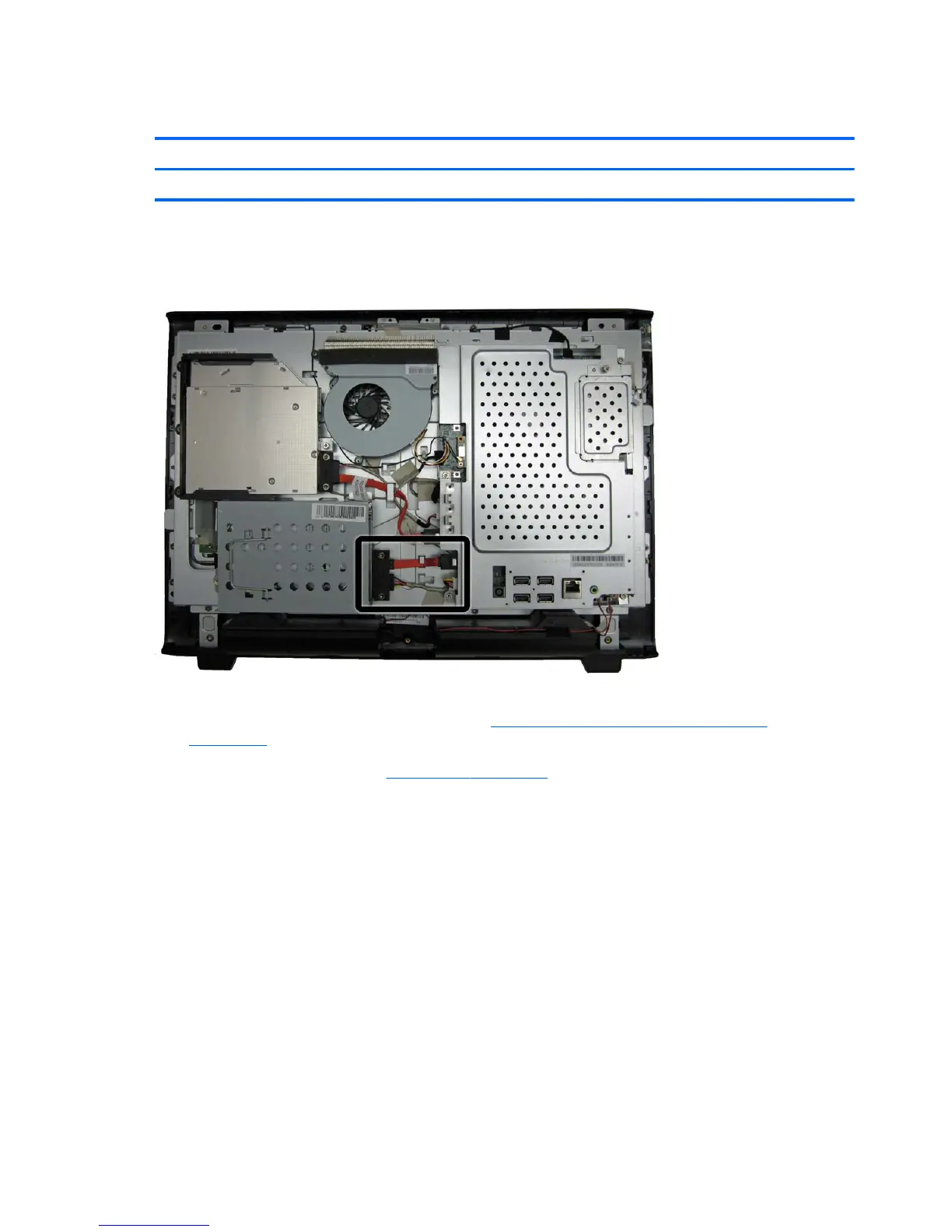

Figure 6-36 Hard drive cable location
To remove the hard drive cable:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 26).
2. Remove the rear cover (see
Rear Cover on page 27).
3. Remove the two Torx T15M3.0x6.0 screws (1) that secure the connector to the computer.
4. Disconnect the connector from the hard drive (2) and from the system board (3).
52 Chapter 6 Removal and Replacement Procedures All-in One (AIO) Chassis
