Installing the Switch

Installation Procedure

Under-Table Mounting

You can mount the switch under a wood table.

Caution The switch should be mounted only to a table surface that is at least 3/4-inch

(19.1 mm) thick.

1. Install two 5/8-inch (15.875 mm) Number 12 wood screws, (included) into

the mounting surface, positioned 5.5 inches (140mm) apart for the 1810-

8 and 1810-8G Switch, or positioned 10 inches (254 mm) apart for the 1810-

24 and 1810-24G Switch.

2. Position the switch over the mounting screws, and then slide the switch

sideways to lock it in place.

3. Screw a third Number 12 wood screw (included) into the table against

one side of the switch to prevent it from sliding out of the locked position.

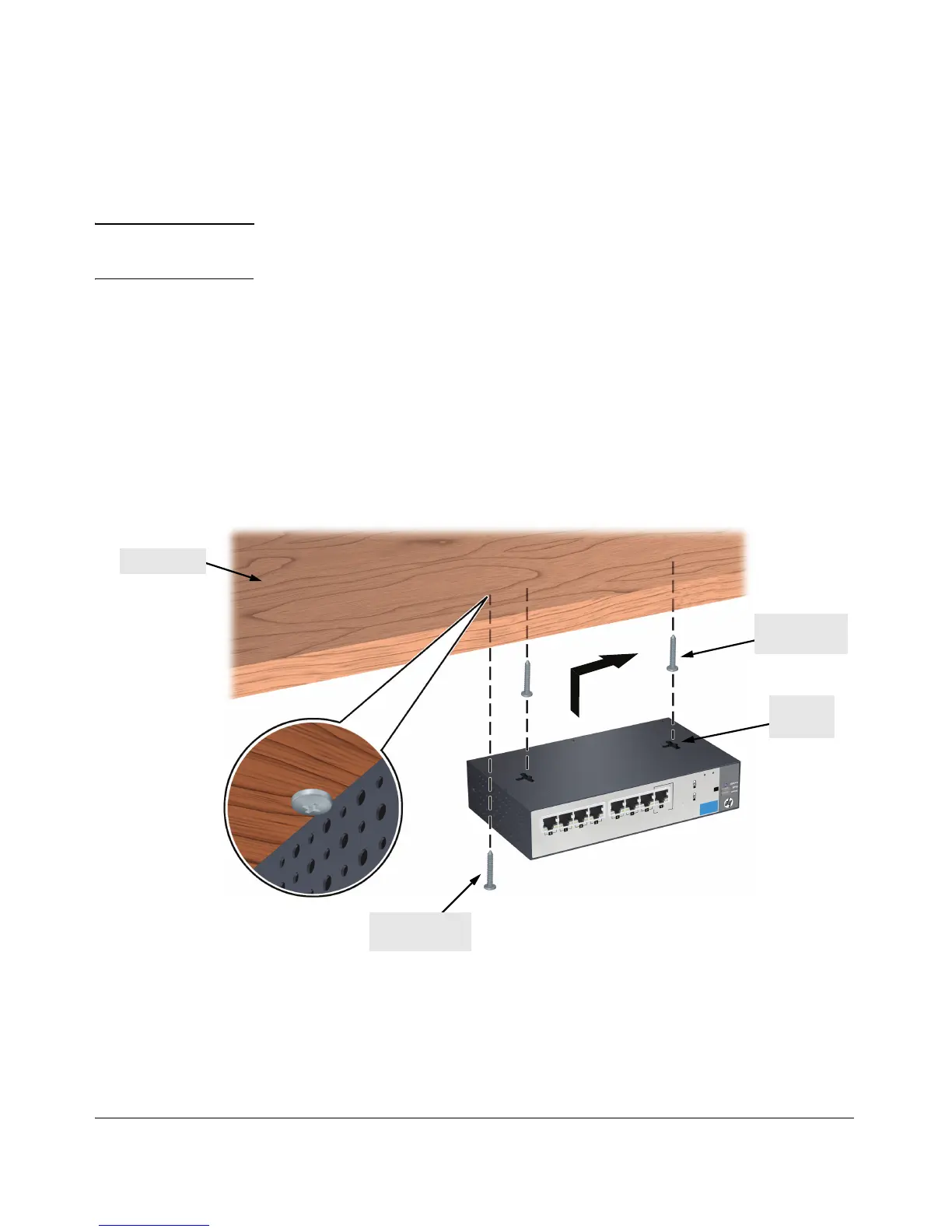

Third securing

screw

Wood table

Number 12

wood screws

Mounting

slots
