HP 1910 Series Getting Started Guide

3
3.

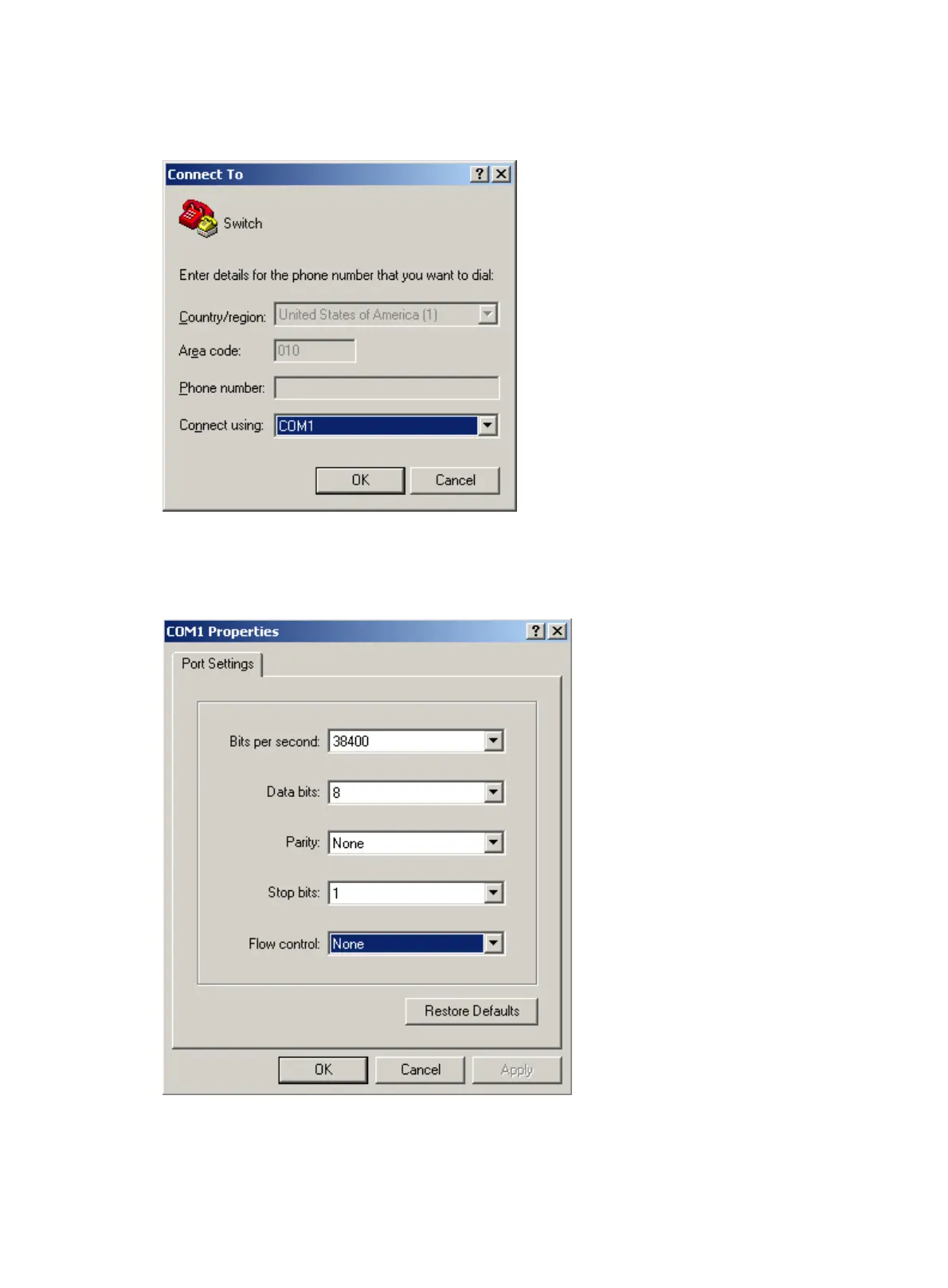

Select the serial port to be used from the Connect using list, and click OK.
Figure 25 Set the serial port used by the HyperTerminal connection
4. Set Bits per second to 38400, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to
None, and click OK.
Figure 26 Set the serial port parameters
5. Select File > Properties in the HyperTerminal window.

HP 1910 Series Specifications

General

PoE Support	No
Type	Managed
VLAN Support	Yes
MAC Address Table Size	8192 entries
Jumbo Frame Support	Yes
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (noncondensing)
Uplink Ports	4 x SFP
