HP 209A - Maintenance; Test Equipment

Section V

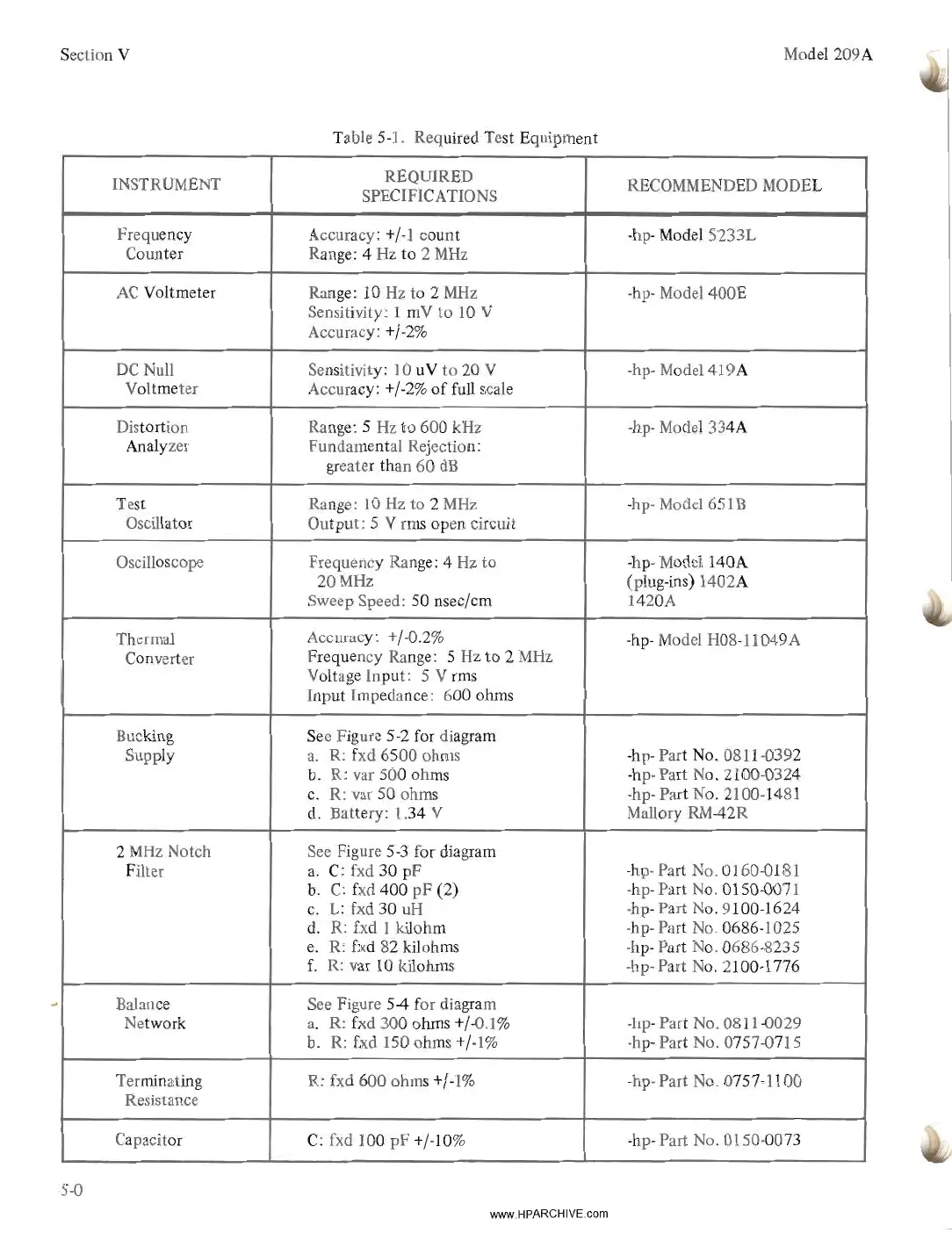

Table 5-1. Required Test Equipment
Model209A
INSTRUMENT
REQUIRED
RECOMMENDED MODEL
SPECIFICA
nONS
Frequency
Accuracy:
+/-1 count
-hp- Model 5233L
Counter Range: 4 Hz
to 2 MHz
AC Voltmeter
Range: 10 Hz
to 2 MHz -hp- Model 400E
Sensitivity: 1 mV
to 10 V
Accuracy: +/-2%
DC Null
Sensitivity: 10
uV to 20 V -hp- Model 419A
Voltmeter
Accuracy: +/-2%
of full scale
Distortion Range: 5
Hz to 600 kHz
-hp- Model 334A
Analyzer
Fundamental Rejection:
greater than 60
dB
Test Range: 10 Hz to 2 MHz -hp- Model 651 B
Oscillator Output: 5 V rms open circuit
Oscilloscope
Frequency Range: 4 Hz to
-hp- Model 140A
20
MHz (plug-ins) 1402A
Sweep Speed: 50 nsec/cm
l420A
Thermal
Accuracy: +/-0.2%
-hp- Model H08-11 049A
Converter
Frequency Range: 5 Hz
to 2 MHz
Voltage Input: 5 V rms
Input Impedance: 600 ohms
Bucking See Figure 5-2 for diagram
Supply
a. R: fxd 6500 ohms -hp- Part No. 0811-0392
b. R: var 500 ohms -hp- Part No. 2100-0324
c. R: var 50 ohms -hp- Part No. 2100-1481
d. Battery: 1.34 V
Mallory RM-42R
2
MHz Notch See Figure 5-3 for diagram
Filter
a. C: fxd 30 pF
-hp- Part No. 0160-0181
b.
C: fxd 400 pF (2)
-hp- Part No. 0150-0071
c. L: fxd 30 uH -hp- Part No. 9100-1624
d. R: fxd 1 kilohm -hp- Part No. 0686-1025
e. R: fxd 82 kilohms
-hp- Part No. 0686-8235
f. R: var 10 kilohms
-hp- Part No. 2100-1776
Balance See Figure 5-4 for diagram
Network
a. R: fxd 300 ohms +/-0.1% -hp- Part No. 0811-0029
b. R: fxd 150 ohms +/-1% -hp- Part No. 0757-0715
Terminating
R: fxd 600 ohms +/-1%
-hp- Part No. 0757-1100
Resistance
Capacitor
C: fxd 100 pF +/-10%
-hp- Part No. 0150-0073
5-0
