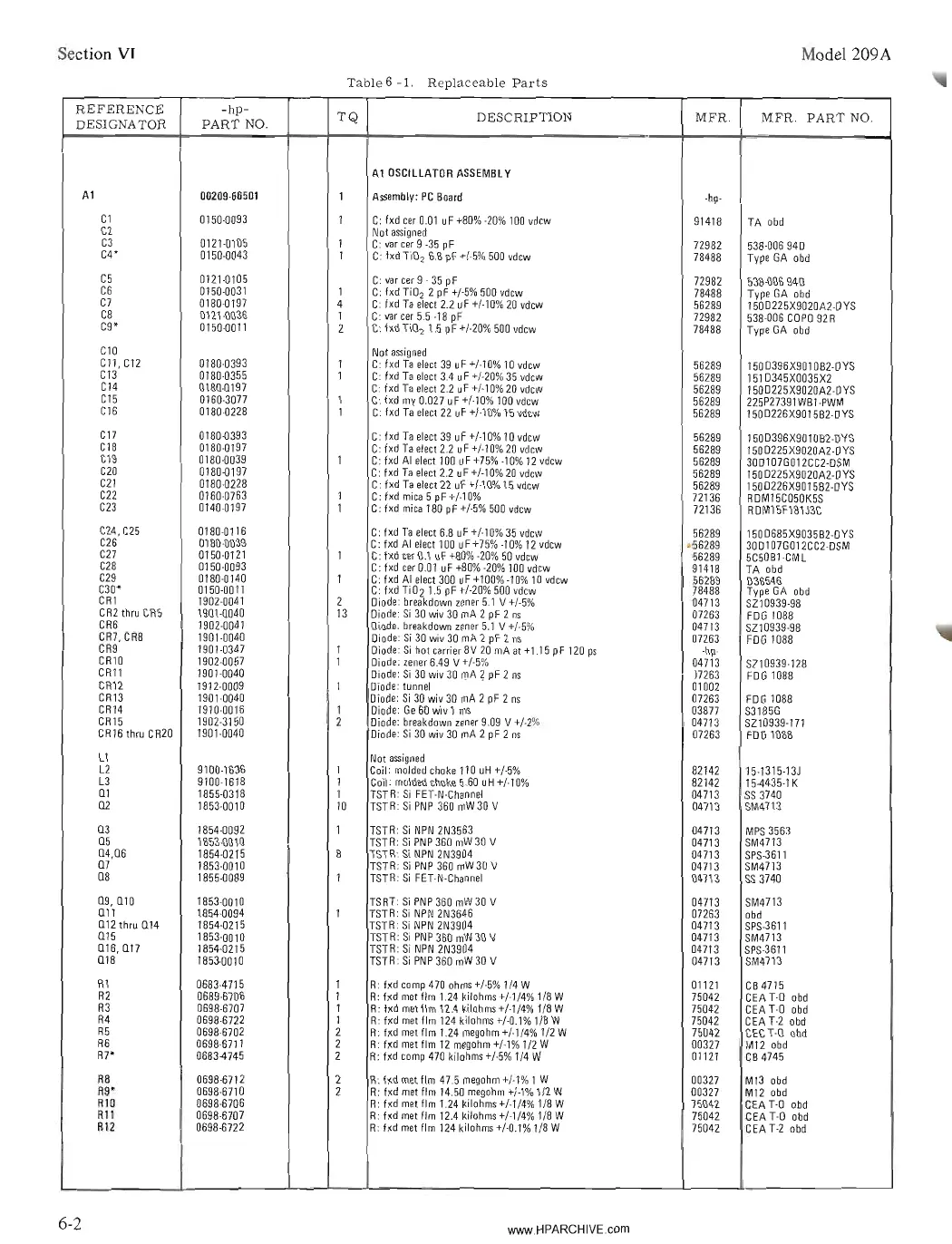

HP 209A - Replaceable Parts

Section VI
Table 6 -1. Replaceable Parts
Mode1209A
REFERENCE
-hp-
TQ
DESCRIPTION MFR.
MFR.
PART NO.
DESIGNATOR
PART NO.
Al OSCILLATOR ASSEMBLY
Al
00209·66501
1 A ... mbly: PC Board
·hp·
Cl
0150·0093
1 C: Ixd cer 0.01 uF +80% -20% 100 vdcw
91418 TA obd
C2
Not assigned
C3 0121-0105
1
C: var cer 9 -35 pF
72982 538-o0694D
C4*
0150-0043
1
C: Ixd TiD, 6.8 pF +/-5% 500 vdcw
78488 Type GA obd
C5
0121-0105
C:
var cer 9 - 35 PF
72982
538-o0694D
C6 0150-0031
1
C: Ixd TiD, 2 pF +/·5% 500 vdcw
78488 Type GA obd
C7
0180-0197
4 C: Ixd Ta elect 2.2 uF +/·10% 20 vdcw
56289 150 D225X9020A2-D YS
C8
0121-0036
1
C: var eer 5.5 -18 pF
72982 538-006 CDPD 92R
C9*
0150-0011
2
C: Ixd TiD, 1.5 pF +/-20% 500 vdew
78488 Type GA obd
Cl0
Not assigned
Cll, C12
0180·0393
1 C: Ixd Ta elect 39 uF +/-10% 10 vdew
56289
150D396X9010B2·DYS
C13
0180-0355
1
C: Ixd Ta elect 3.4 uF +/·20% 35 vdew
56289 151 D345X0035X2
C14
0180-0197
C: Ixd Ta elect 2.2 uF +/·10% 20 vdew
56289
150D225X9020A2·DYS
C15
0160-3077
1 C: Ixd my 0.027 uF +/-10% 100 vdew
56289 225P27391 WB 1-PWM
C16
0180-0228
1
C: Ixd Ta elect 22 uF +/·10% 15 vdcw
56289
150D226X9015B2·DYS
C17
0180-0393
C: Ixd Ta elect 39 uF +/·10% 10 vdew
56289 150D396X901082-DYS
C18
0180·0197
C: Ixd Ta eleel2.2 uF +/·10% 20 vdcw
56289
150D225X9020A2·DYS
C19
0180-0039
1
C: Ixd AI elect 100 uF +75% ·10% 12 vdew
56289
30Dl07G012CC2·DSM
C20
0180-0197
C: Ixd Ta elect 2.2 uF +/-10% 20 vdew
56289
150D225X9020A2·DYS
C21
0180-0228
C: Ixd Ta elect 22 uF +/·10% 15 vdew
56289
150D226X9015B2·DYS
C22 0160-0763
1 C: Ixd mica 5 pF +/·10%
72136 RDM15C050K5S
C23 0140·0197
1
C: Ixd mica 180 pF +/-5% 500 vdew
72136
RDM15F181J3C
C24, C25
0180-0116
C: Ixd Ta elect 6.8 uF +/-10% 35 vdew
56289
150D685X9035B2·DYS
C26 0180-0039
C: Ixd AI elect 100 uF +75% ·10% 12 vdew
.56289
30Dl07G012CC2-DSM
C27 0150-0121
1 C: Ixd eer 0.1 uF +80% -20% 50 vdew
56289
5C5081-CML
C28 0150-0093
C: Ixd eer 0.01 uF +80% -20% 100 vdew
91418
TA obd
C29
0180-0140
1
C: Ixd AI elect 300 uF +100% ·10% 10 vdew
56289
D36546
C30*
0150-0011
C: Ixd TiD2 1.5 pF +/·20% 500 vdew
78488 Type GA obd
CRI
1902·0041
2 Diode: breakdown zener 5.1 V +/-5%
04713
S210939·98
CR2 thru CR5
1901-0040
13
Diode: Si 30 wiv 30 rnA 2 pF 2 ns
07263
FDG 1088
CR6
1902-0041
Diode: breakdown zener 5.1 V +/·5%
04713
S210939-98
CR7,CR8
1901·0040
Diode: Si 30 wiv 30 rnA 2 pF 2 ns
07263
FDG 1088
CR9
1901-0347
1
Diode: Si hot carrier 8V 20 rnA at + 1.15 PF 120 ps
·hp·
CRlO
1902-0057
1
Diode: zener 6.49 V +/-5%
04713
S710939·128
CRll
1901·0040
'Diode: Si 30 wiv 30 mA 2 pF 2 ns
17263
FDG 1088
CR12
1912·0009 1 Diode: tunnel
01002
CR13 1901-0040
Diode: Si 30 wiv 30 rnA 2 pF 2 ns
07263 FDG 1088
CR14 1910-0016
1 Diode: Ge 60 wiv 1 ms
03877 S3185G
CR15 1902-3150
2
Diode: breakdown zener 9.09 V +/-2%
04713 S210939-171
CR16 thru CR20
1901·0040
Diode: Si 30 wiv 30 rnA 2 pF 2 ns
07263 FDG 1088
L1
Not assigned
L2 9100·1636 1
Coil: molded choke 110 uH +/-5%
82142 15-1315·13J
L3 9100-1618
1 Coil: molded choke 5.60 uH +/-10%
82142
15-4435-1 K
Ql
1855-0318
1 TSTR: Si FET·N·Channel
04713
SS 3740
Q2
1853·0010
10
TSTR: Si PNP 360 mW 30 V
04713
SM4713
Q3
1854-0092
1 TSTR: Si NPN 2N3563
04713 MPS 3563
Q5
1853-0010 TSTR: Si PNP 360 mW 30 V
04713
SM4713
Q4,Q6
1854-0215
8 TSTR: Si NPN 2N3904
04713 SPS-3611
Q7
1853·0010 TSTR: Si PNP 360 mW 30 V
04713
SM4713
Q8
1855-0089
1 TSTR: Si FEl-N-Channel
04713 SS 3740
Q9, Ql0
1853,0010
TSRT: Si PNP 360 mW 30 V
04713
SM4713
Ql1
1854-0094
1
TSTR: Si NPN 2N3646
07263
obd
Q12 thru Q14
1854-0215
TST R: Si NPN 2N3904
04713
SPS·3611
Q15
1853-0010 TSTR: Si PNP 360 mW 30 V
04713 SM4713
Q16, Q17
1854-0215 TST R: Si NPN 2N3904
04713 SPS·3611
Q18
1853-0010 TSTR: Si PNP 360 mW 30 V
04713
SM4713
Rl
0683-4715
1 R Ixd eomp 470 ohms +/-5% 1/4 W
01121 CB4715
R2 0689-6706
1 R Ixd met 11m 1.24 kilohms +/·1/4% 1/8 W
75042 CEA T·D obd
R3
0698-6707
1 R Ixd met 11m 12.4 kilohms +/-1/4% 1/8 W
75042 CEA T-D obd
R4
0698-6722
1 R Ixd met 11m 124 kilohms +/·0.1% 1/8 W
75042 CEA T-2 obd
R5 0698-6702
2 R Ixd met 11m 1.24 megohm +/·1/4% 1/2 W
75042 CEC T-O obd
R6
0698·6711
2 R Ixd met 11m 12 megohm +/-1% 1/2 W
00327 M12 obd
R7* 0683-4745
2 R Ixd comp 470 kilohms +/·5% 1/4 W
01121 CB 4745
R8
0698·6712 2 R Ixd met 11m 47.5 megohm +/-1% 1W
00327 M13 obd
R9' 0698-6710
2 R Ixd met 11m 14.50 megohm +/·1% 1/2 W
00327 M12 obd
Rl0
0698·6706 R
Ixd met 11m 1.24 kilohms +/·1/4% 1/8 W
75042 CEA T·O obd
Rl1
0698·6707
R Ixd met 11m 12.4 kilohms +/·1/4% 1/8 W
75042 CEA T-D obd
R12 0698-6722
R Ixd met 11m 124 kilohms +/·0.1% 1/8 W
75042 CEA T·2 obd
6-2
