Mode1209A

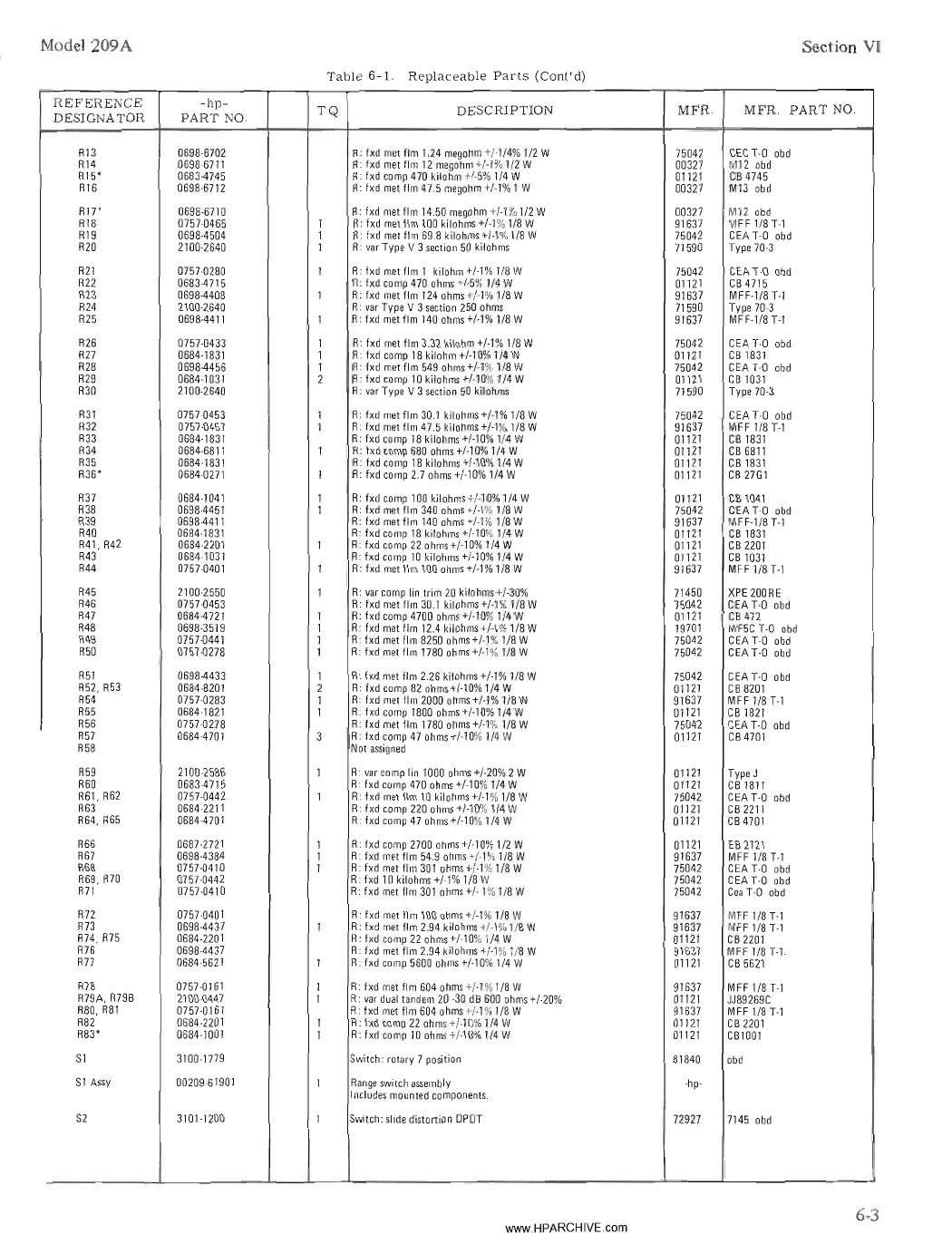

Table 6-1. Replaceable Parts (Cant'd)
Section VI
REFERENCE
-hp-
TQ
DESCRIPTION
MFR. MFR.
PART NO.
DESIGNATOR
PART NO.
R13 0698·6702 R: Ixd met 11m 1.24 megohm +/-1/4% 1/2 W
75042 CEC T-O obd
R14 0698-6711
R: Ixd met 11m 12 megohm +/-1% 1/2 W
00327 M12 obd
R15" 0683-4745
R: fxd comp 470 kilohm +/-5% 1/4 W
01121 CB 4745
R16
0698·6712 R: fxd met 11m 47.5 megohm +/-1% 1 W
00327 M13 obd
R17"
0698-6710 R: Ixd met 11m 14.50 megohm +/-1% 1/2 W
00327 M12 obd
R18 0757-0465
1 R: Ixd met 11m 100 kilohms +/-1% 1/8 W 91637 MFF 1/8 T-l
R19 0698-4504
1 R: Ixd met 11m 69.8 kilohms+/-l% 1/8 W
75042
CEA T-O obd
R20
2100·2640
1
R: var Type V3 section 50 kilohms
71590
Type 70-3
R21
0757-0280
1
R: Ixd met tim 1 kilohm +/-1% 1/8 W
75042 CEA T·O obd
R22 0683-4715
R: Ixd comp 470 ohms +/-5% 1/4 W
01121 CB4715
R23
0698-4408 1 R: Ixd met tim 124 ohms +/-1% 1/8 W
91637 MFF-l/8 T-l
R24
2100·2640 R: var Type V3 section 250 ohms
71590
Type 70-3
R25
0698-4411
1
R: Ixd met tim 140 ohms +/-1% 1/8 W
91637 MFF-l/8 T-l
R26
0757-0433 1 R: Ixd met 11m 3_32 kilohm +/-1% 1/8 W
75042 CEA T-O obd
R27 0684-1831
1 R: Ixd comp 18 kilohm +/-10% 1/4 W
01121 CB 1831
R28 0698-4456
1 R: Ixd met 11m 549 ohms+/-l% 1/8 W 75042 CEA T-O obd
R29 0684-1031
2
R: Ixd comp 10 kilohms +/-10% 1/4 W
01121 CB 1031
R30 2100-2640
R: var Type V3 section 50 kilohms
71590
Type 70-3
R31
0757-11453
1
R: Ixd met tim 30_1 kilohms+/-l% 1/8 W
75042
CEA T-O obd
R32
0757-11457
1
R: Ixd met tim 47.5 kilohms +/-1% 1/8 W
91637 MFF 1/8 T-l
R33
0684·1831
R: Ixd comp 18 kilohms+/·l0% 1/4 W
01121
CB 1831
R34 0684-6811
1
R: Ixd comp 680 ohms +/-10% 1/4 W
01121 CB 6811
R35 0684-1831
R: Ixd comp 18 kilohms +/-10% 1/4 W
01121 CB 1831
R36"
0684-11271
1
R: Ixd comp 2.7 ohms +/-10% 1/4 W
01121 CB 27Gl
R37 0684-1041
1 R: Ixd comp 100 kilohms +/-1 0% 1/4 W
01121 CB 1041
R38 0698-4451
1 R: Ixd met 11m 340 ohms +/-1% 1/8 W
75042 CEA T-O obd
R39
0698-4411
R: Ixd met 11m 140 ohms +/-1% 1/8 W
91637 MFF-l/8 T·l
R40 0684-1831
R: Ixd comp 18 kilohms +/-10% 1/4 W
01121
CB 1831
R41, R42 0684-2201
1
R: Ixd comp 22 ohms +/-10% 1/4 W
01121 CB 2201
R43 0684-1031
R: Ixd comp 10 kilohms +/-1 0% 1/4 W
01121 CB 1031
R44
0757-11401
1 R: Ixd met tim 100 ohms +/-1% 1/8 W
91637 MFF 1/8 T-l
R45
2100-2550
1 R: var comp lin trim 20 kilohms +/-30%
71450 XPE200RE
R46
0757-11453 R:lxd met tim 30_1 kilohms+/-l%1/8W
75042
CEA T-O obd
R47
0684-4721
1
R: Ixd comp 4700 ohms +/-10% 1/4 W
01121 CB 472
R48
0698-3519
1 R: Ixd met tim 12.4 kilohms +/-1% 1/8 W
19701 MF5C T-O obd
R49
0757-11441 1
R: Ixd met 11m 8250 ohms +/·1% 1/8 W
75042
CEA T-O obd
R50
0757-11278 1 R: fxd met 11m 1780 ohms +/-1% 1/8 W
75042 CEA T-O obd
R51
0698·4433 1
R: Ixd met 11m 2.26 kilohms +/-1 % 1/8 W
75042 CEA T-O obd
R52, R53
0684-8201
2 R: Ixd comp 82 ohms+/-l0% 1/4 W
01121
CB 8201
R54 0757-0283
1 R: Ixd met 11m 2000 ohms +/-1% 1/8 W
91637 MFF 1/8 T-l
R55 0684-1821
1 R: Ixd comp 1800 ohms +/-10% 1/4 W
01121 CB 1821
R56 0757-11278
R: Ixd met 11m 1780 ohms +/-1% 1/8 W
75042
CEA T-O obd
R57
0684-4701
3 R: Ixd comp 47 ohms +/-1 0% 1/4 W
01121
CB 4701
R58
Not assigned
R59 2100-2586
1 R: var comp lin 1000 ohms +/·20% 2 W
01121
Type J
R60
0683-4715
R: Ixd comp 470 ohms +/-10% 1/4 W
01121 CB 1811
R61, R62 0757-0442
1
R: fxd metflm 10 kilohms+/-l% 1/8 W
75042 CEA T-O obd
R63 0684-2211
R: Ixd comp 220 ohms +/-10% 1/4 W
01121 CB 2211
R64, R65
0684-4701 R: Ixd comp 47 ohms +/-10% 1/4 W
01121 CB 4701
R66 0687-2721
1 R: Ixd comp 2700 ohms +/-10% 1/2 W
01121 E82721
R67 0698-4384
1 R: Ixd met 11m 54.9 ohms +/-1% 1/8 W
91637 MFF 1/8 T-l
R68
0757-11410 1 R: Ixd met 11m 301 ohms+/-l% 1/8 W
75042
CEA T-O obd
R69, R70
0757-0442
R: Ixd 10 kilohms +/-1% 1/8 W
75042
CEA T-O obd
R71
0757-0410
R:lxdmetllm301ohms+/·l%1/8W
75042 Cea T-O obd
R72
0757-11401 R:
Ixd met tim 100 ohms +/-1% 1/8 W
91637 MFF 1/8 T-l
R73
0698-4437 1
R: Ixd met tim 2.94 kilohms +/-1% 1/8 W
91637 MFF 1/8 T-l
R74, R75
0684-2201
R: Ixd comp 22 ohms +/-10% 1/4 W
01121 CB 2201
R76
0698-4437
R: Ixd met 11m 2.94 kilohms +/-1% 1/8 W
91637
MFF 1/8 T-l.
R77
0684-5621
1 R: Ixd comp 5600 ohms +/-10% 1/4 W
01121 CB 5621
R78 0757-0161
1 R:
Ixd met 11m 604 ohms +/-1% 1/8 W
91637 MFF 1/8 T-l
R79A, R79B
2100-0447
1 R: var dual tandem 20 ·30 dB 600 ohms +/-20%
01121 JJ89269C
R80, R81
0757·0161 R:
Ixd met 11m 604 ohms+/·l% 1/8 W
91637 MFF 1/8 T-l
R82
0684-2201
1 R: Ixd comp 22 ohms +/·10% 1/4 W
01121 CB 2201
R83"
0684·1001 1 R:
Ixd comp 10 ohms +/-10% 1/4 W
01121 CB100l
Sl
3100·1779
Switch: rotary 7 position
81840 obd
Sl Assy
00209-61901
1 Range switch assembly
-hp-
Includes mounted components.
S2
3101·1200
1 Switch: slide distonion OPOT
72927 7145 obd
www,HPARCHIVEcom
6-3
